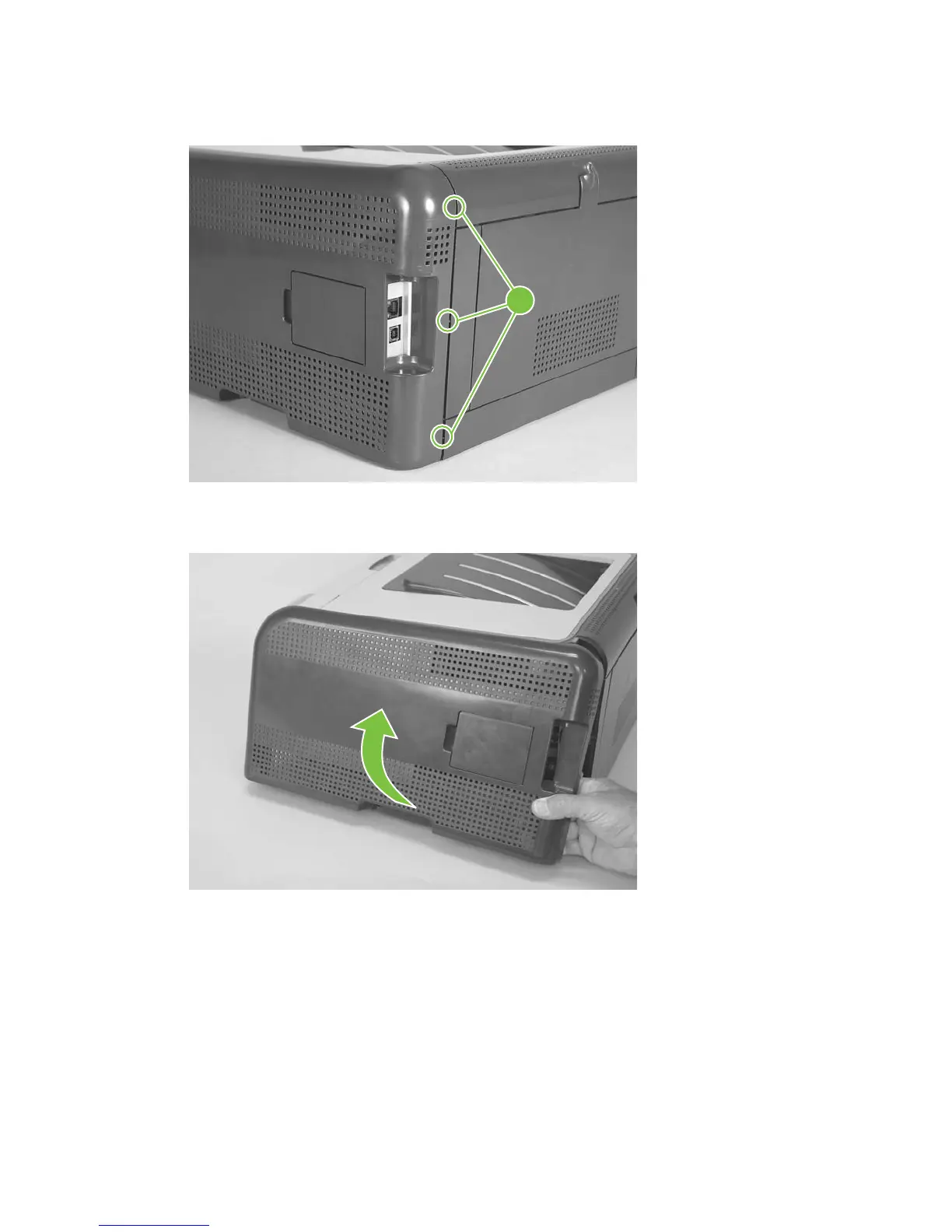

3. Use a small flatblade screwdriver to release three tabs (callout 2) at the back of the product.
Figure 6-14 Remove the right cover (3 of 4)
2
4. Rotate the bottom of the cover away from the product, and then slide it up to remove it.
Figure 6-15 Remove the right cover (4 of 4)
104 Chapter 6 Removal and replacement ENWW
