Assembly locations
Base product (no document feeder or scanner)

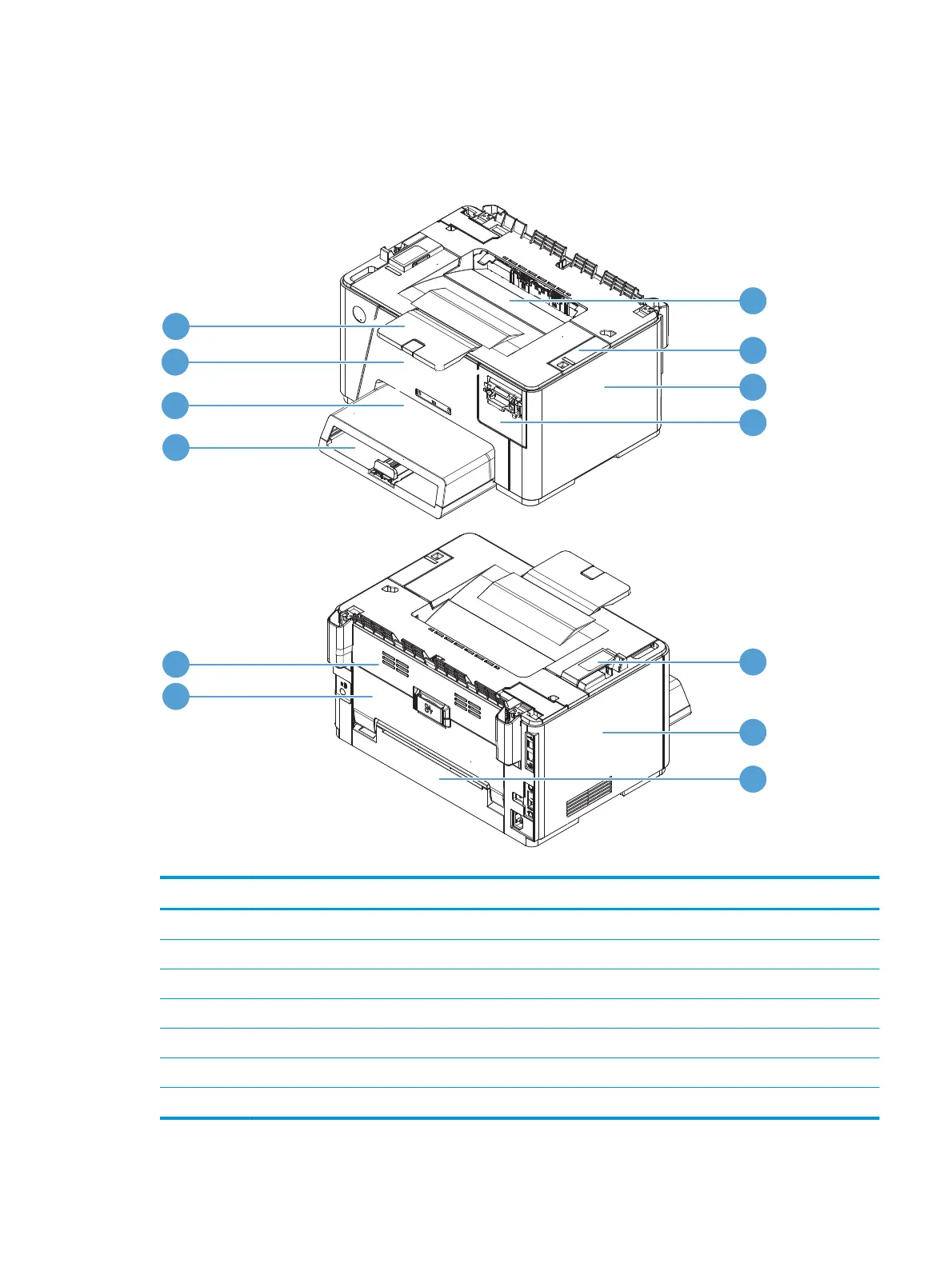

Figure 2-1 Locations of major components, base product
10
9
8
1
2
3
4
5
6
7
11
13
12
Table 2-7 Locations of major components, base product
Item Description Item Description
1 Upper cover assembly 8 Rear cover assembly
2 Right upper cover assembly 9 Fuser cover
3 Right cover 10 Input tray
4 Control panel cover 11 Dust cover
5 Inner cover assembly 12 Cartridge door
6 Left cover assembly 13 Output extension tray
7 Power supply cover assembly
ENWW Assembly locations 107
