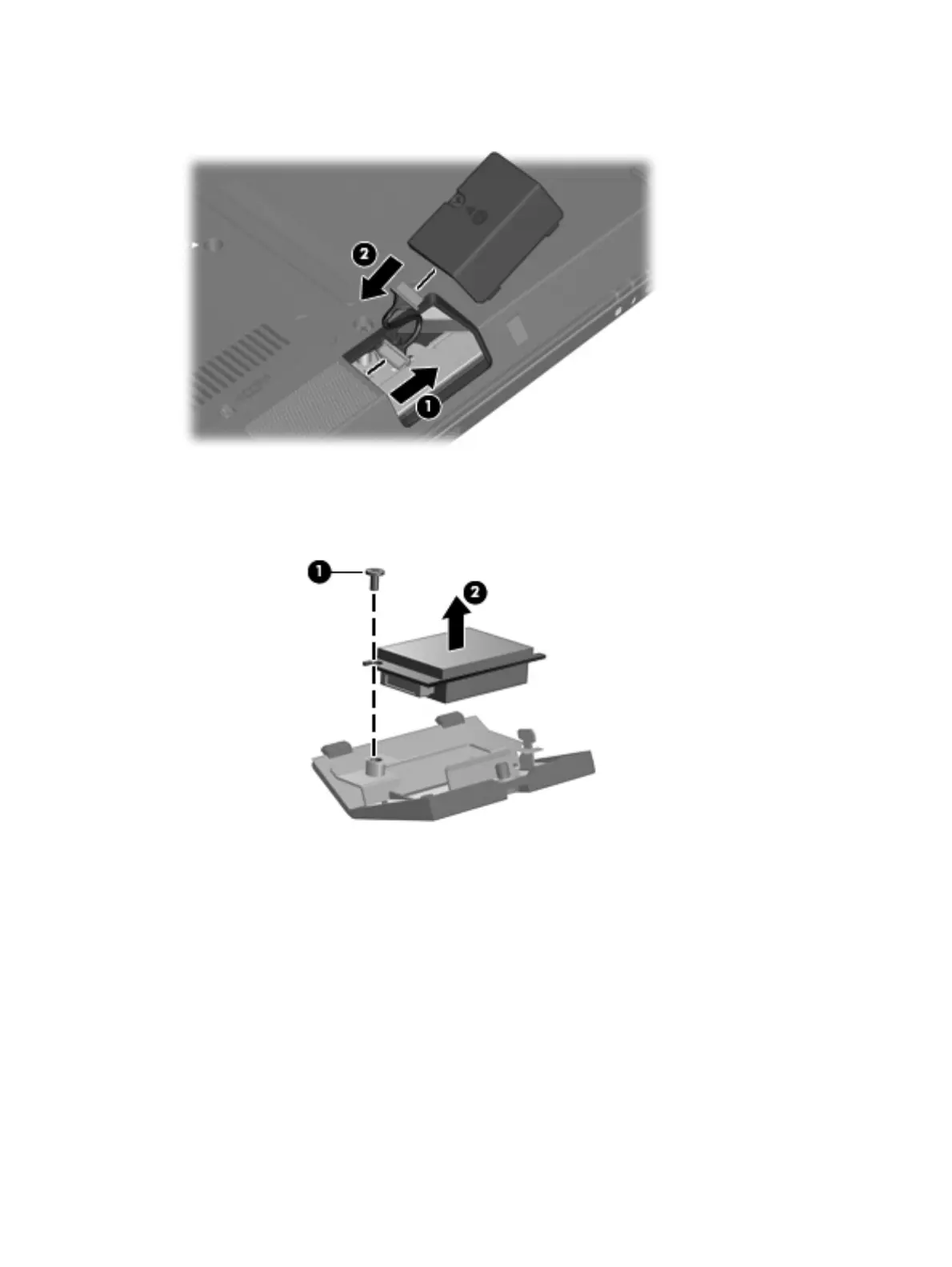

5. Disconnect the Bluetooth module cable from the system board (1) and from the Bluetooth
module (2).
6. Remove the Phillips PM2.0×5.0 screw (1) that secures the Bluetooth module to the Bluetooth
module compartment cover.
7. Remove the Bluetooth module (2) from the cover.
Reverse this procedure to reassemble and install the Bluetooth module.
44 Chapter 4 Removal and replacement procedures
