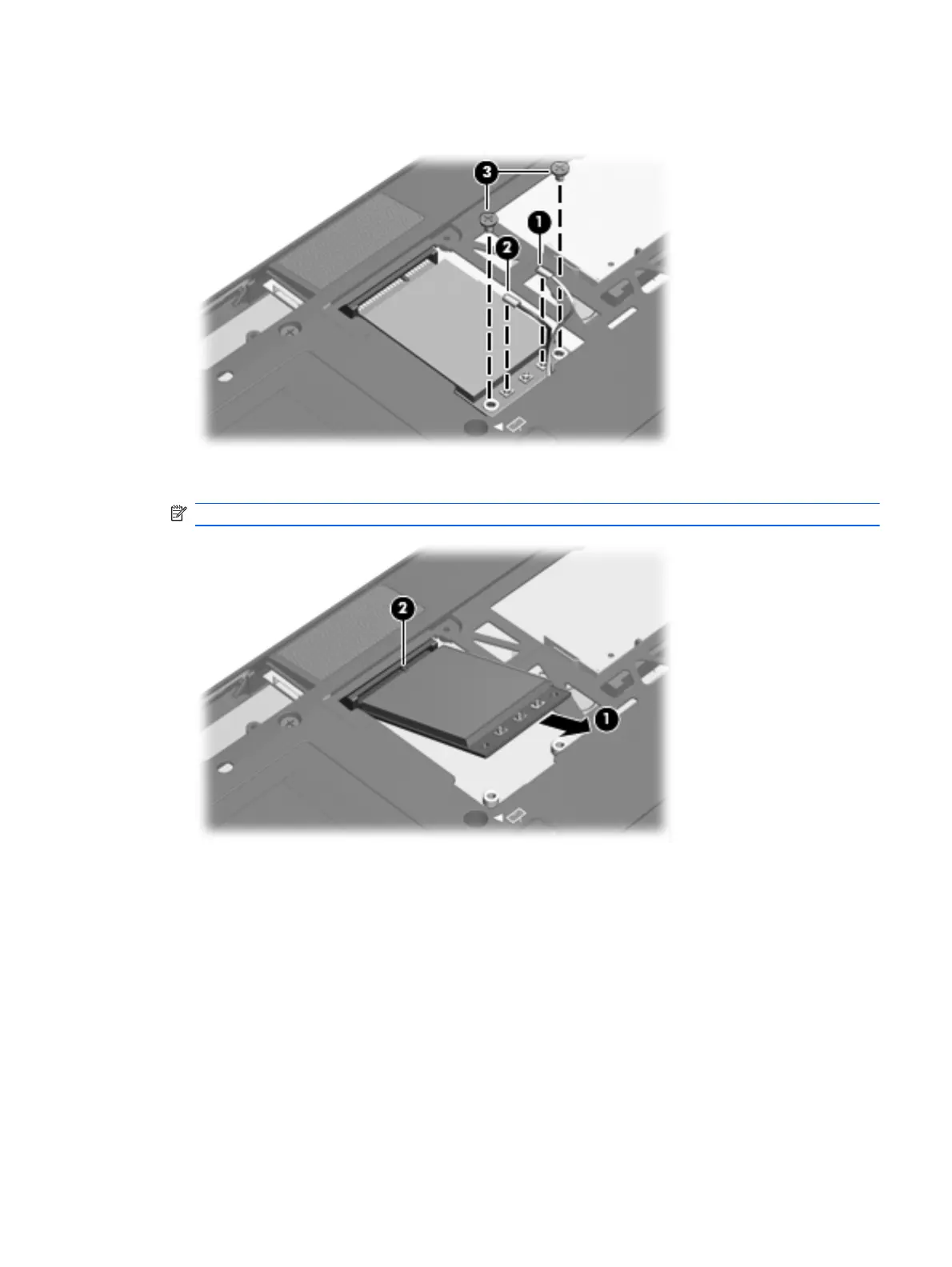

2. Remove the two Phillips PM2.0×3.0 screws (3) that secure the WLAN module to the computer.
(The edge of the module opposite the slot rises away from the computer.)
3. Remove the WLAN module (1) by pulling the module away from the slot at an angle.
NOTE: WLAN modules are designed with a notch (2) to prevent incorrect installation.
Reverse this procedure to install the WLAN module.
Component replacement procedures 51
