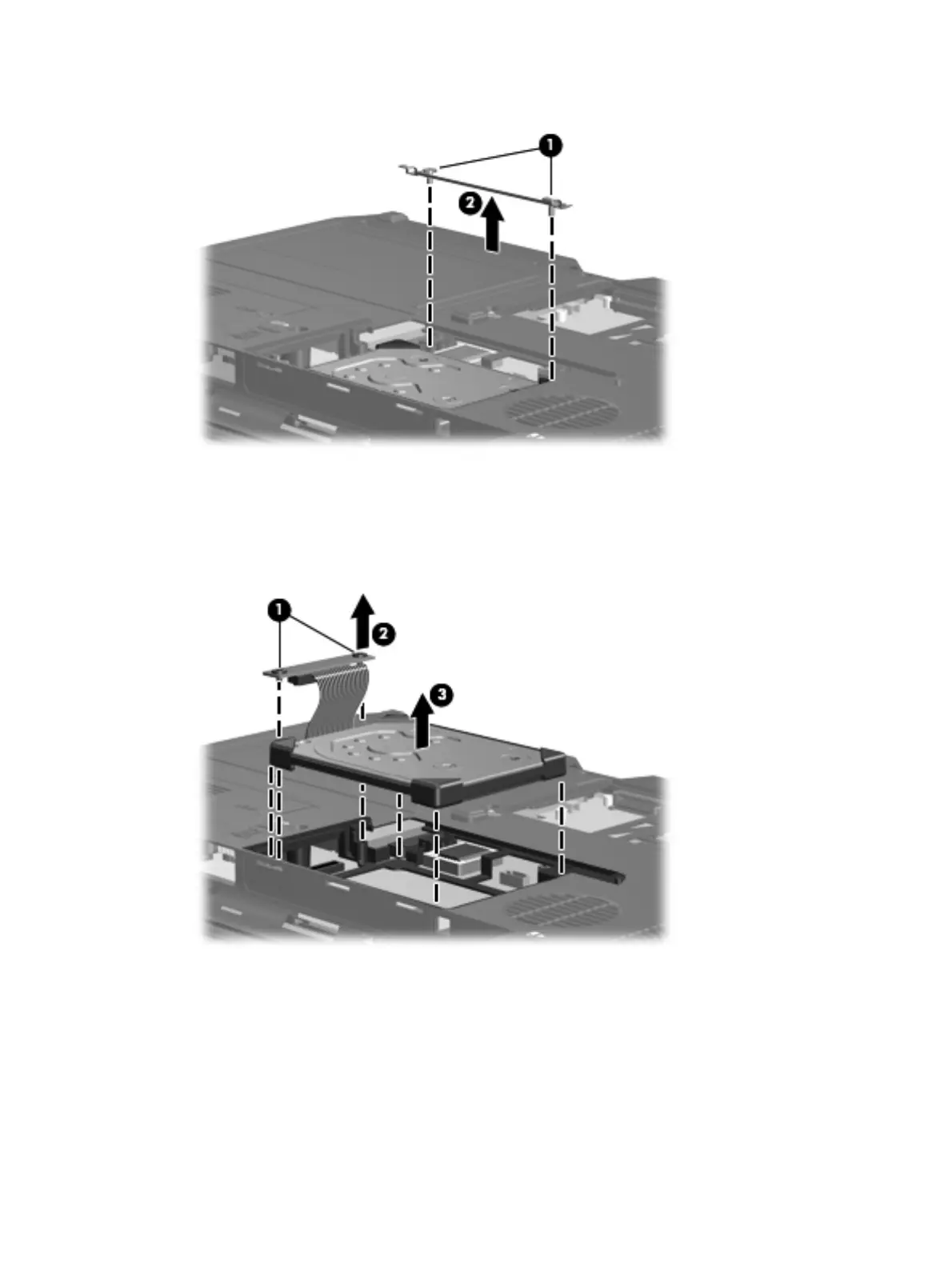

4. Remove the hard drive bracket (2).
5. Loosen the two Phillips PM2.0×5.0 captive screws (1) that secure the hard drive connector to
the system board.
6. Disconnect the hard drive connector (2) from the system board.
7. Lift the hard drive (3) straight up to remove it from the hard drive.
Reverse this procedure to install the hard drive.
