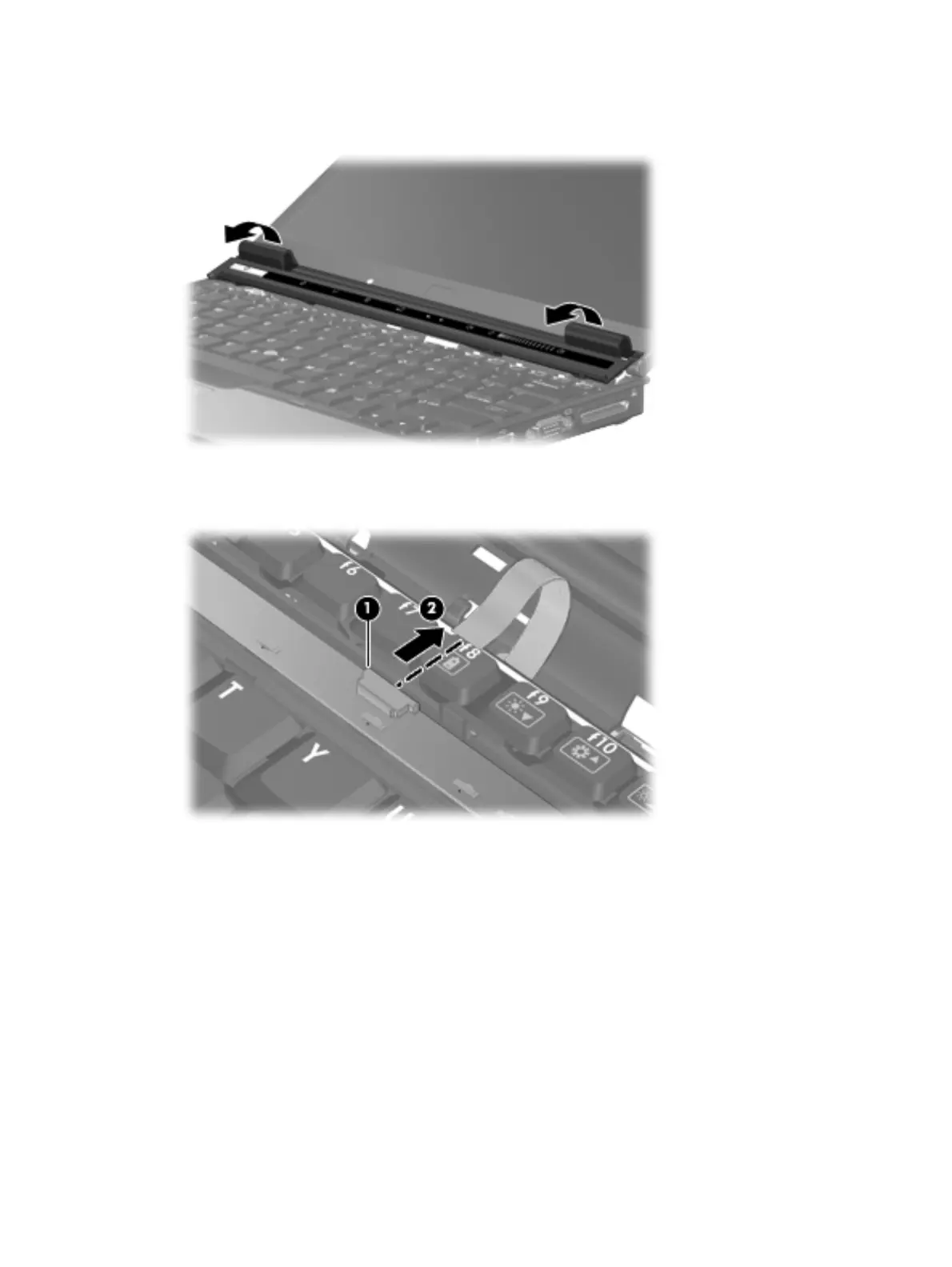

3. Release the switch cover by lifting and swinging the hinge cover sections up and forward until
the switch cover rests upside down on the keyboard.
4. Release the zero insertion force (ZIF) connector (1) to which the LED board cable is attached,
and disconnect the LED board cable (2) from the connector.
5. Remove the switch cover.
Reverse this procedure to install the switch cover.
