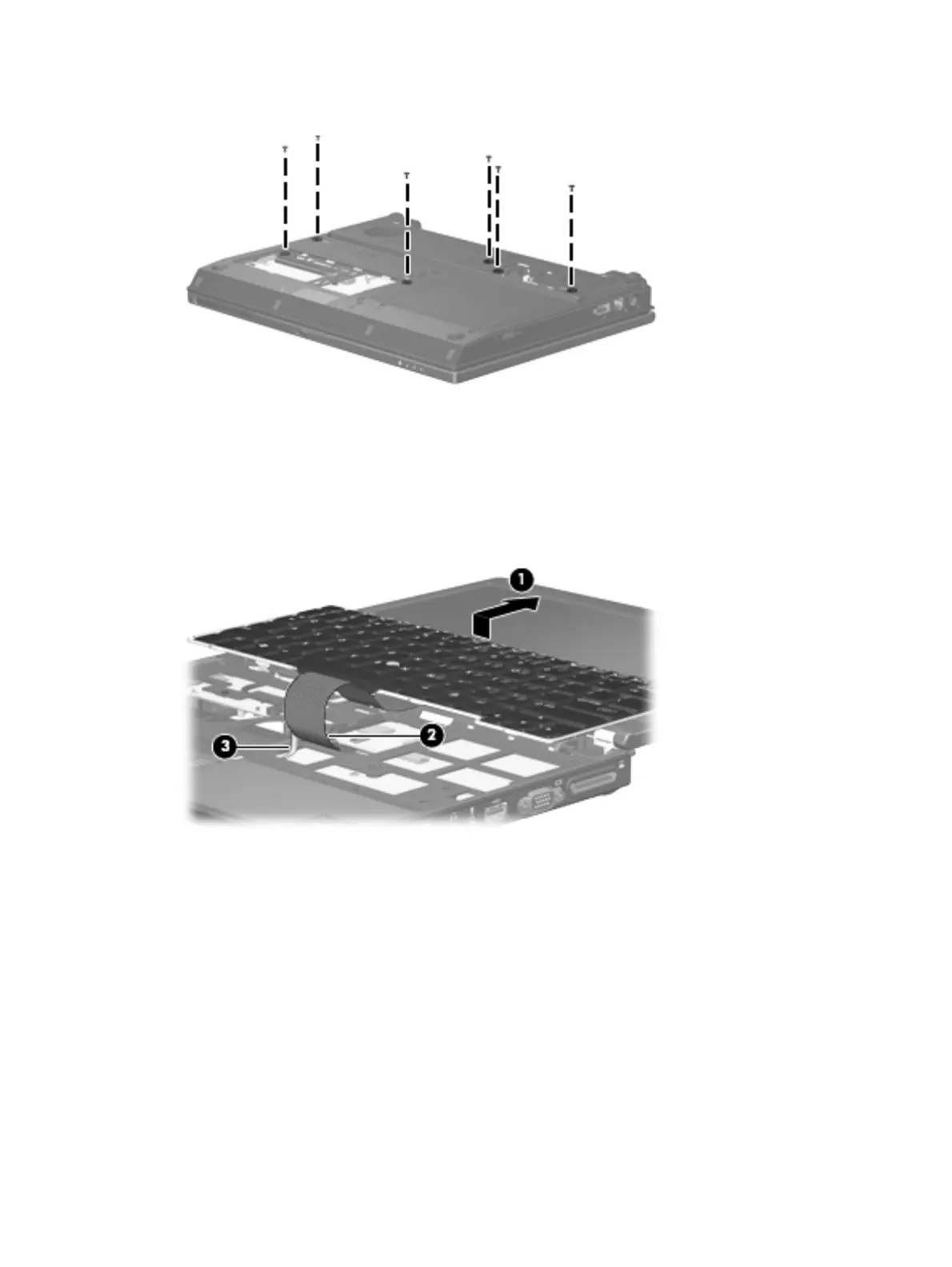

2. Remove the six Torx T8M2.5×7.0 screws that secure the keyboard to the computer.
3. Turn the computer display-side up, with the front toward you.
4. Open the computer as far as possible.
5. Lift the rear edge of the keyboard (1) and slide it back until the keyboard cable (2) and pointing
stick cable (3) are accessible.
6. Release the ZIF connector (1) to which the keyboard cable is attached, and disconnect the
keyboard cable (2) from the system board.
60 Chapter 4 Removal and replacement procedures
