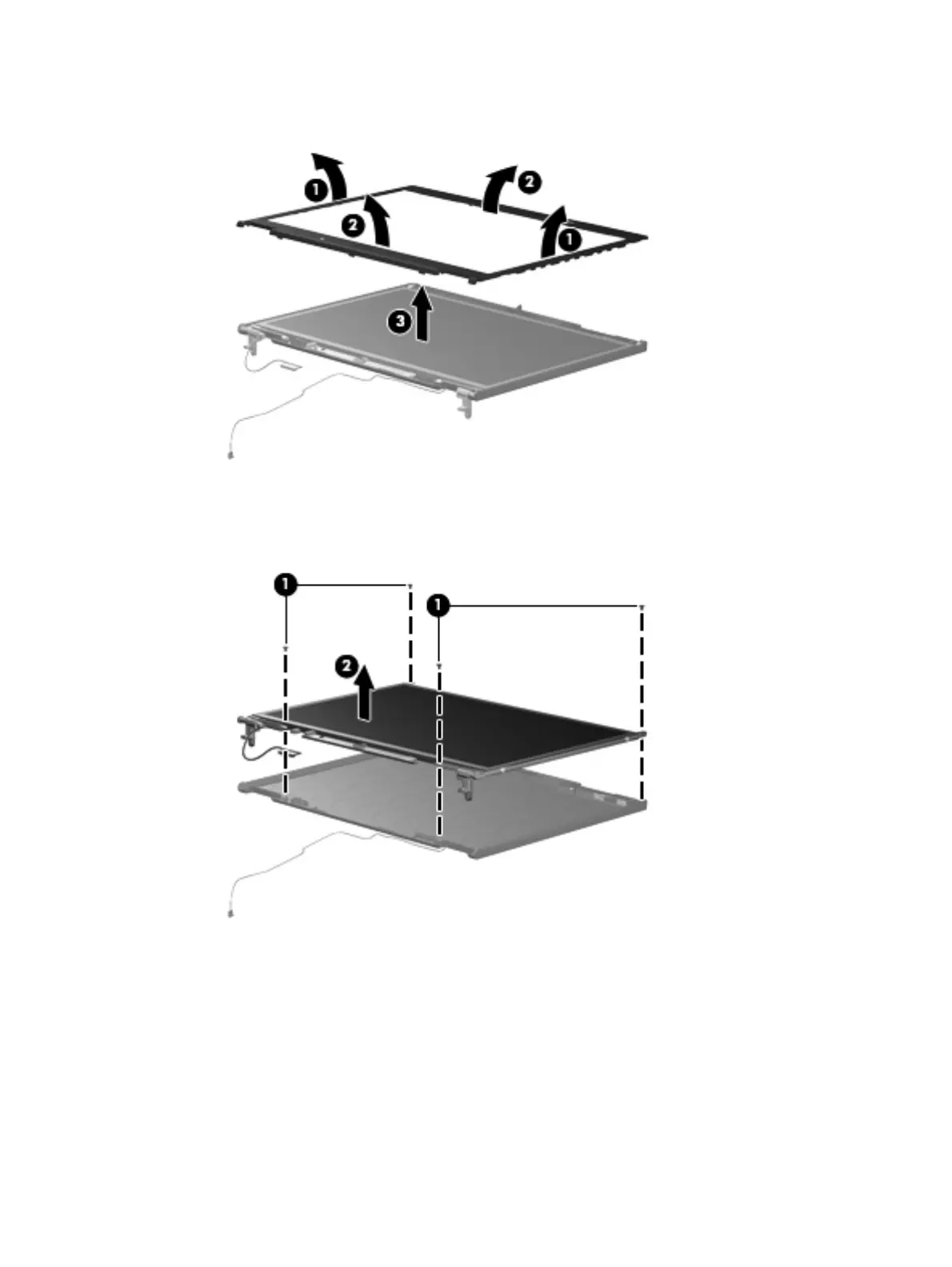

16. Remove the display bezel (3). The display bezel is available using spare part number
451733-001.
17. If it is necessary to replace the display hinges, remove the four Torx T7M2.0×5.0 screws (1) that
secure the display panel to the display enclosure.
18. Remove the display panel (2).
19. Remove the two Phillips PM2.0×4.0 screws (1) that secure each display hinge to the display
panel.
Component replacement procedures 65
