f.
Display assembly (see
Display assembly on page 80)
g. Top cover (see
Top cover on page 85)

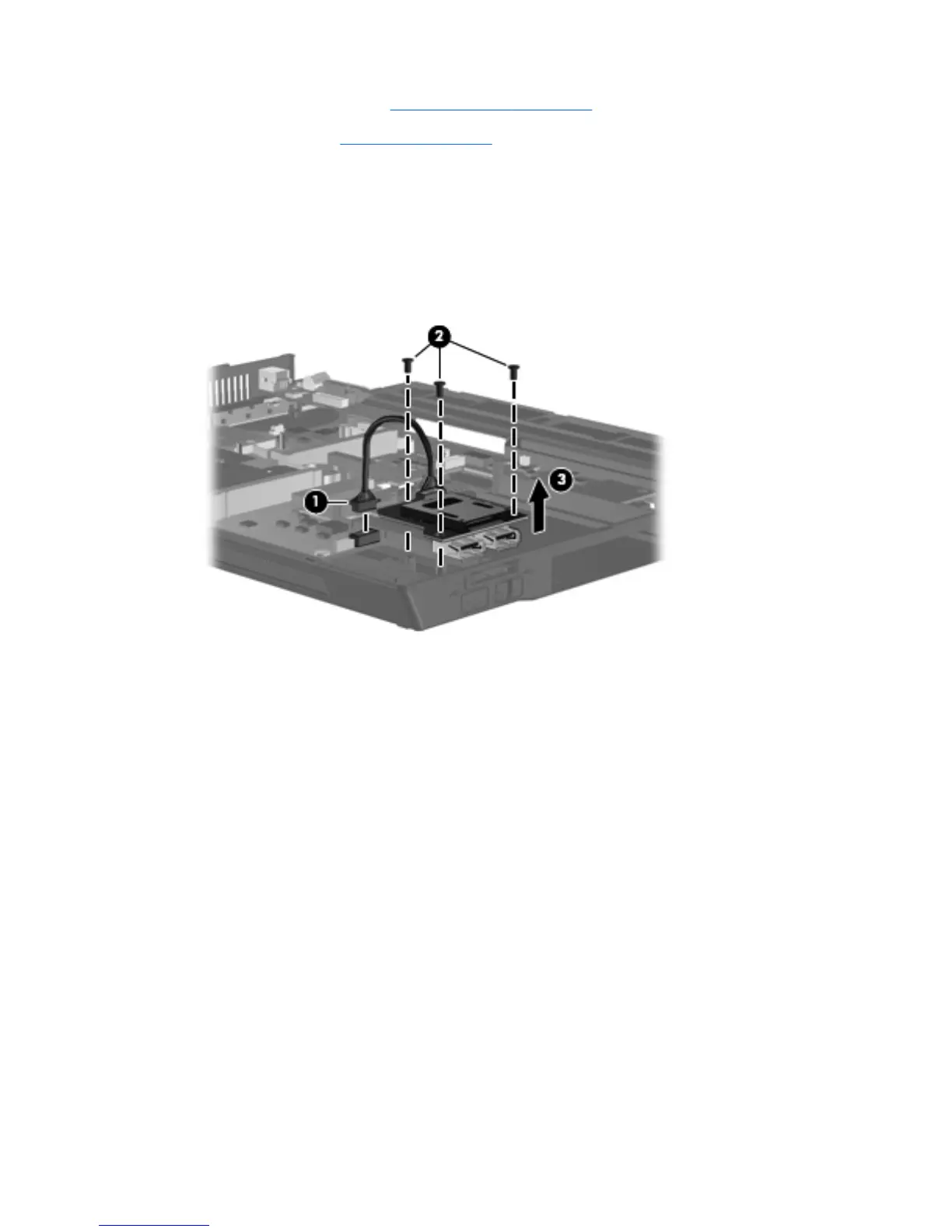

Remove the USB/Media Card Reader board:
1. Disconnect the USB/Media Card Reader board cable (1) from the system board.
2. Remove the three Phillips PM2.5×5.0 screws (2) that secure the USB/Media Card Reader board
to the computer.
3.
Lift the USB/Media Card Reader board (3) straight up and remove it.
Reverse this procedure to install the USB/Media Card Reader board.
Component replacement procedures
91
