HP Compaq 6715b Maintenance And Service Guide

7.

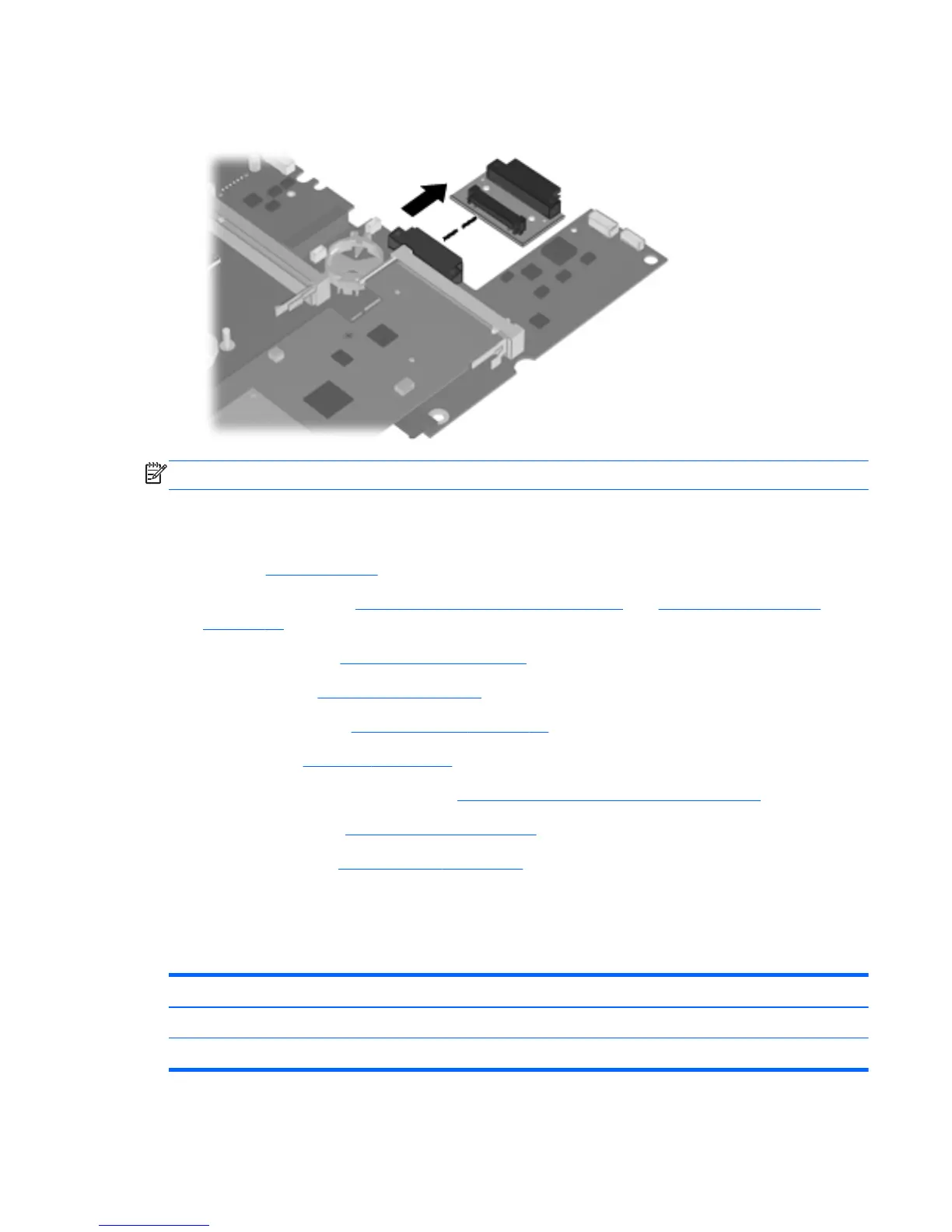

If it is necessary to replace the optical drive connector board, pull the board away from the system
board until it disconnects from the system board.
NOTE: The optical drive connector board is available using spare part number 443820-001.
When replacing the system board, be sure that the following components are removed from the
defective system board and installed on the replacement system board:
●
SIM (see
SIM on page 53)
●
Memory modules (see
Expansion memory module on page 60 and Internal memory module
on page 70)
●
WLAN module (see
WLAN module on page 62)
●
RTC battery (see
RTC battery on page 71)
●
WWAN module (see
WWAN module on page 72)
●
Processor (see
Processor on page 78)
●
PC Card/audio board assembly (see
PC Card/audio board assembly on page 95)
●
Modem module (see
Modem module on page 97)
●
SIM slot board (see
SIM slot board on page 99)
Reverse the preceding procedure to install the system board.
PC Card/audio board assembly
Description Spare part number
For use with HP Compaq 6715b and 6710b computer models 443889-001
For use with HP Compaq 6715s and 6710s computer models 443888-001
Component replacement procedures
95

HP Compaq 6715b Specifications

General

HDD speed	5400 RPM
HDD interface	SATA
Optical drive type	DVD Super Multi DL
Card reader integrated	-
Total storage capacity	120 GB
Number of HDDs installed	1
Memory slots	2x SO-DIMM
Internal memory	1 GB
Memory clock speed	667 MHz
Internal memory type	DDR2-SDRAM
Maximum internal memory	4 GB
Processor cache	0.256 MB
Processor family	AMD Mobile Sempron
Processor frequency	2.2 GHz
Processor cache type	L2
Processor manufacturer	AMD
Motherboard chipset	AMD M690
Display diagonal	15.4 \
Display resolution	- pixels
Type	PC
Modem speed	56 Kbit/s
Internal modem	Yes
Power supply type	AC/DC
TV tuner integrated	No
Wireless technology	Wi-Fi
Compatible operating systems	Windows Vista
Audio system	HD
Pointing device	Touchpad + Scroll zone
Bluetooth version	2.0+EDR
Operating system installed	Windows Vista Home Basic
TV-out type	S-Video
Charging port type	DC-in jack
HDMI ports quantity	0
USB 2.0 ports quantity	4
Cable lock slot type	Kensington
Battery capacity	55 Wh
Battery life (max)	4.3 h
Number of battery cells	6
AC adapter power	90 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Product color	Black
Country of origin	China
Discrete graphics card model	AMD Radeon X1250

Weight and Dimensions

Depth	265 mm
Width	357 mm
Weight	2700 g
Height (front)	35 mm
