HP Compaq 8100 Elite Series

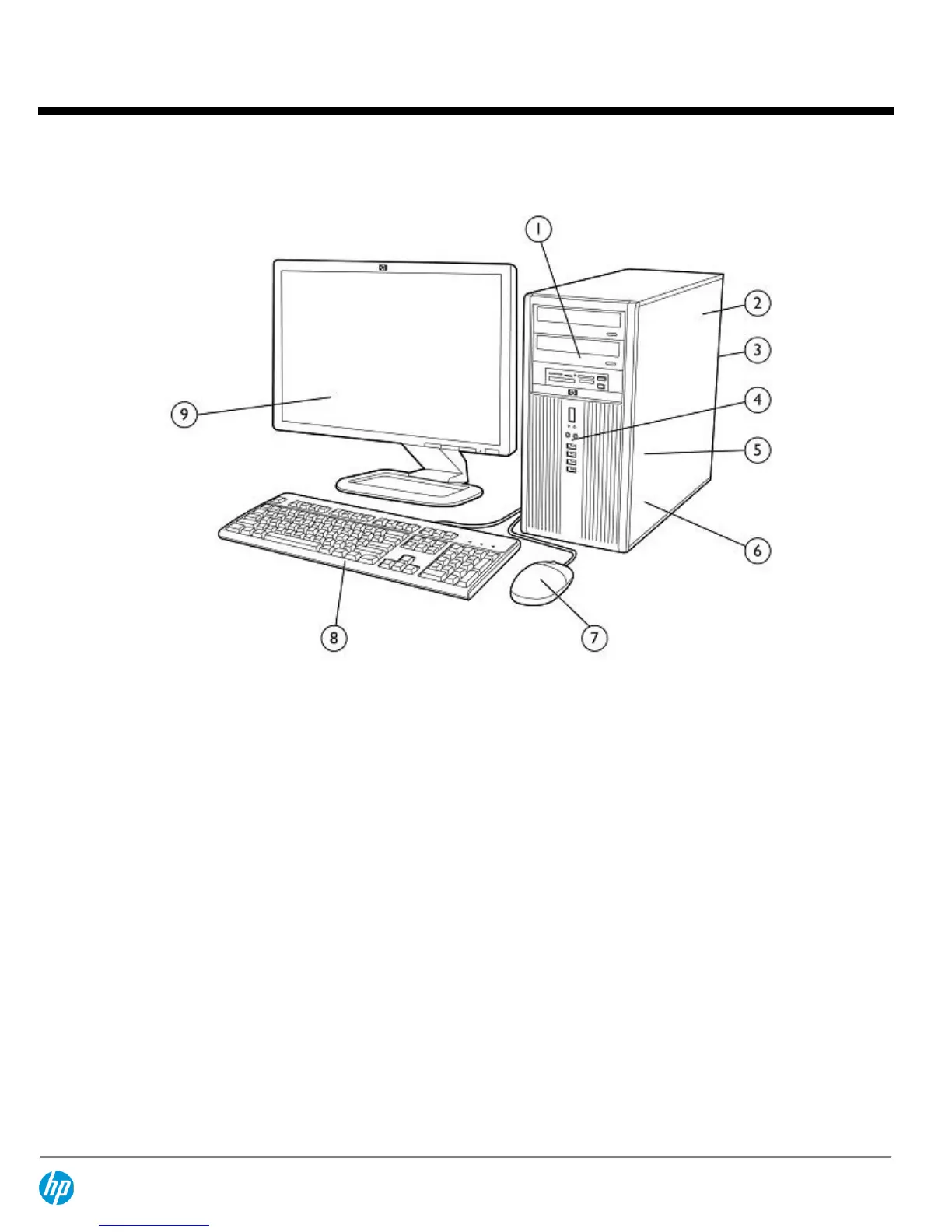

HP Compaq 8100 Elite Convertible Minitower Business PC
1 (3) 5.25” external drive bays supporting optical disk drives, removable hard disk drives, or the HP Media Card Reader
2 320W standard or 89% high efficiency Power Supply
3 Rear I/O includes (6) USB 2.0 ports, serial port, PS/2 mouse and keyboard ports, RJ-45 network interface, DisplayPort and
VGA video interfaces, and audio in/out jacks
4 Front I/O includes (4) USB 2.0 ports, dedicated headphone output, and a microphone/headphone jack
5 (3) 3.5” internal drive bays supporting multiple hard disk drives
6 Full height expansion slots include (3) full-length PCI slots, (1) PCI Express x1 slot, and (2) full-length PCI Express x16
graphics slots
NOTE: Second PCIe x16 slot has x4 connectivity.
7 HP Optical Mouse
8 HP Keyboard
9 HP Monitor (sold separately)
QuickSpecs
HP Compaq 8100 Elite Series
Overview
DA - 13524 Worldwide — Version 27 — September 30, 2011 Page 2
