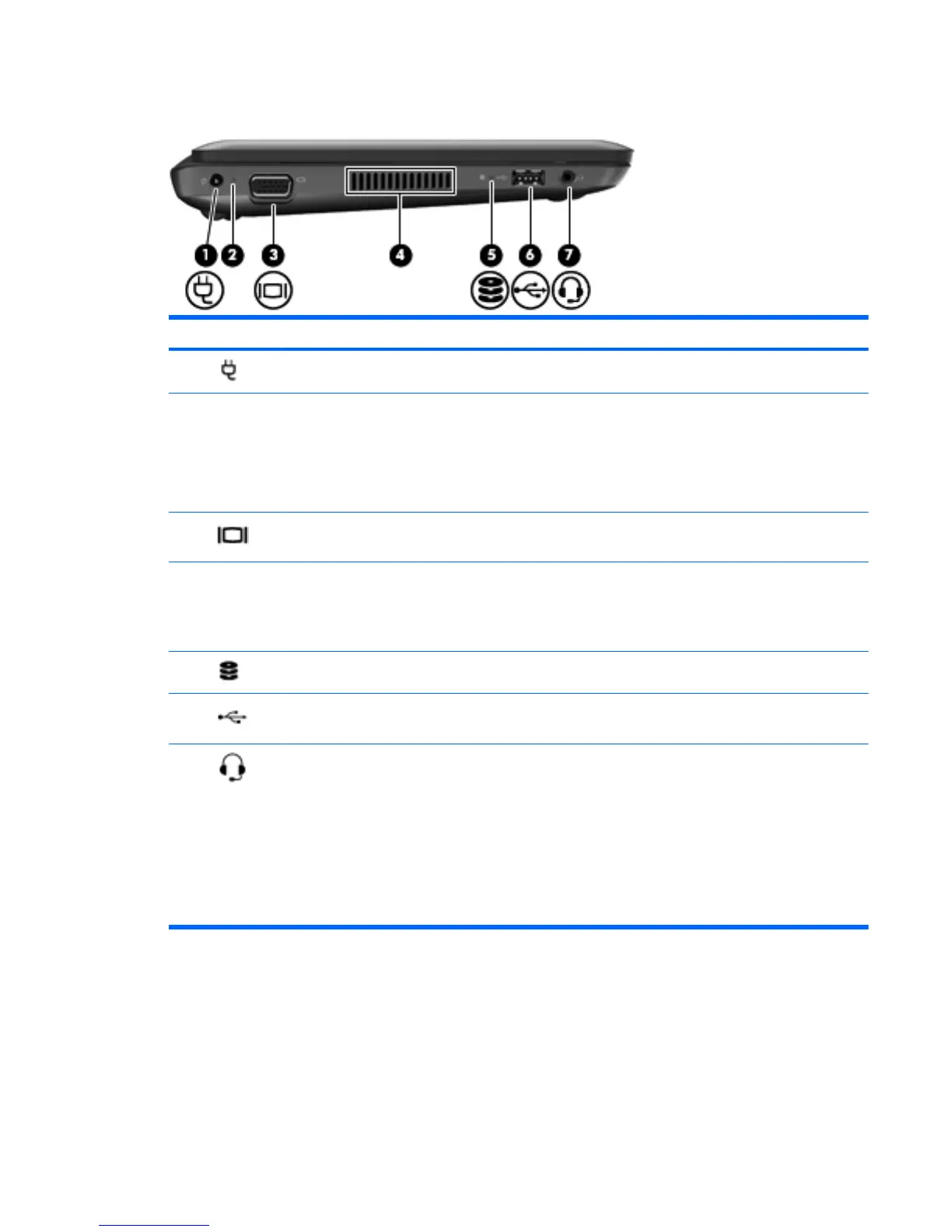

Left side
Component Description
(1)
Power connector Connects an AC adapter.
(2) AC adapter light
●
White: The computer is connected to external power and the
battery is fully charged.
●
Amber: The computer is connected to external power and
the battery is charging.
● Off: The computer is not connected to external power.
(3)
External monitor port Connects an external VGA monitor or projector.
(4) Vent Enables airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool internal
components and prevent overheating. It is normal for the internal
fan to cycle on and off during routine operation.
(5)
Drive light Blinking white: The hard drive is being accessed.
(6)
USB port Connects an optional USB device.
(7)
Audio-out (headphone) jack/Audio-
in (microphone) jack
Connects optional powered stereo speakers, headphones,
earbuds, a headset, or television audio. Also connects an optional
headset microphone.
WARNING! To reduce the risk of personal injury, adjust the
volume before putting on headphones, earbuds, or a headset. For
additional safety information, refer to the Regulatory, Safety, and
Environmental Notices.
NOTE: When a device is connected to the jack, the computer
speakers are disabled.
Left side 9
