HP Compaq dx7300 ST Supplementary Guide

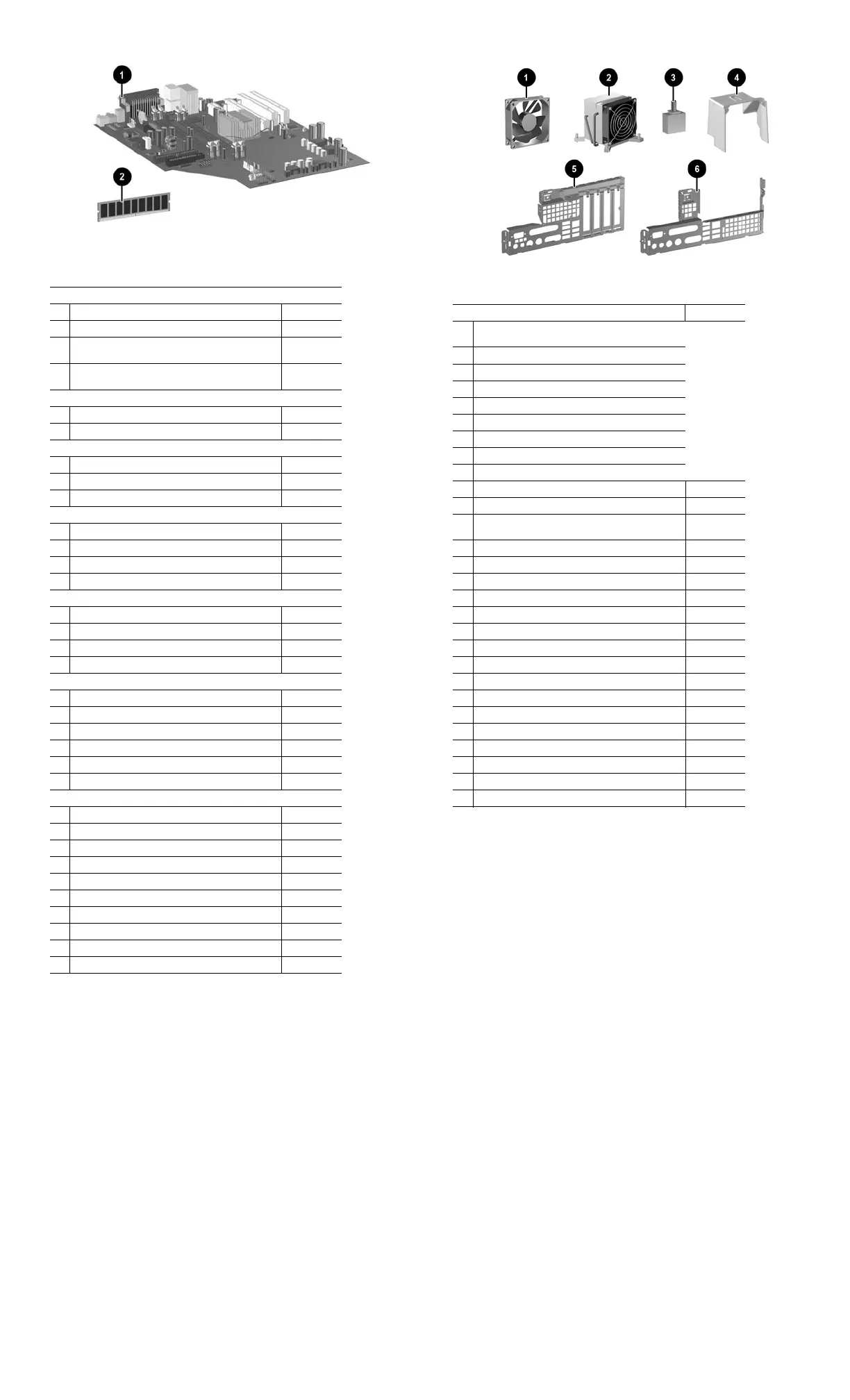

dx7300 Illustrated Parts & Service Map, ST Chassis 438830-002 page 2
Standard and Optional Boards
System Boards with thermal grease, alcohol pad, and CPU socket cover
1 Standard board 404674-001
* Board for vPro applications 432289-001
* Standard board without embedded security (Russia
only)
434355-001
* Board for vPro applications without embedded secu-
rity (EMEA only)
434356-001
Intel Celeron D Processors with alcohol pad and thermal grease
* #352, 512K cache, 3.2 GHz, D-0, 533 MHz FSB 433891-001
* #360, 512K cache, 3.46 GHz, D-0, 533 MHz FSB 434758-001
Intel Pentium 4 HT Processors with alcohol pad and thermal grease
* #524, 1 MB cache, 3.06 GHz, 533 MHz FSB 412985-001
* #531, 1 MB cache, 3.0 GHz, 800 MHz FSB 394642-001
* #541, 1 MB cache, 3.2 GHz, 800 MHz FSB 394812-001
Intel Pentium D Processors with alcohol pad and thermal grease
* #820, 2x1 MB cache, 2.8 GHz, 800 MHz FSB 432623-001
* #915, 2x2 MB cache, 2.8 GHz, 800 MHz FSB 433843-001
* #925, 2x2 MB cache, 3.0 GHz, 800 MHz FSB 433510-001
* #945, 2x2 MB cache, 3.4 GHz, 800 MHz FSB 433890-001
Intel Core 2 Duo Processors with alcohol pad and thermal grease
* #E6300, 2 MB cache, 1.86 GHz, 1066 FSB 418947-001
* #E6400, 2 MB cache, 2.13 GHz, 1066 FSB 418948-001
* #E6600, 4 MB cache, 2.4 GHz, 1066 FSB 418949-001
* #E6700, 4 MB cache, 2.67 GHz, 1066 FSB 418950-001
Memory modules
2 256 MB, PC2-5300, CL5
396519-001
* 512 MB, PC2-5300, CL5
396520-001
* 1 GB, PC2-5300, CL5
398038-001
* 256 MB, PC2-6400, CL6
418953-001
* 512 MB, PC2-6400, CL6
418952-001
* 1 GB, PC2-6400, CL6
418951-001
Other boards
* ATI Radeon X1300 PCIE graphics, 256 MB, FH 413023-001
* Nvidia NVS280 PCI graphics, 64 MB, FH 398686-001
* DVI-D ADD2 graphics, FH 398333-001
* 1394 card 2 external, 1 internal port, FH 393308-001
* 1394 card 2 external, 1 internal port, LP 393307-001
* Intel, Gigabit NIC, FH 398754-001
* Broadcom NIC, PCIE, FH 430654-001
* Agere International 56K Modem, FH 398661-001
* DVI-I to VGA graphics adapter 202997-005
* Adder card for 2 USB connectors 412839-001
* Not shown
LP = Low profile
FH = Full height
Miscellaneous Parts
Miscellaneous screw kit, includes: 414180-001
* #6-32 x .250 hitop screw with serrations
(192308-001)(14 ea)
* (192308-002) (4 ea)
* (192308-003) (6 ea)
* (106902-001) (2 ea)
* (334248-001) (4 ea)
* (247481-001) (8 ea)
* (247348-001) (8 ea)
* (368224-002) (2 ea)
* (101517-067) (12 ea)
* Solenoid lock 393602-001
1 Chassis fan 392412-001
2 Heatsink with alcohol pad and factory-applied ther-
mal grease
435265-001
*Mouse, PS2, scroll type 390937-001
* Mouse, PS2, optical 417966-001
* Mouse, optical 390938-001
* Battery, real-time clock 153099-001
* Internal speaker 394778-001
3 Hood sensor 393603-001
4 Fan duct 435260-001
5 Backwall, LP 435270-001
6 Backwall, FH 394213-001
* Second serial port, FH 392414-001
* Second serial port, LP 393601-001
* Power switch/LED holder 370857-001
* Tower stand 393604-001
* Heatsink retention plate 393609-001
* Thumbscrew, backing plate 393610-001
* Foot (4 ea) 370708-001
*Not shown
LP = Low profile
FH = Full height
