HP Compaq LE1711 User Manual

3. Remove the three screws on the back of the monitor that connect the monitor panel to the pedestal
base (1) and slide the pedestal base from the monitor panel (2).

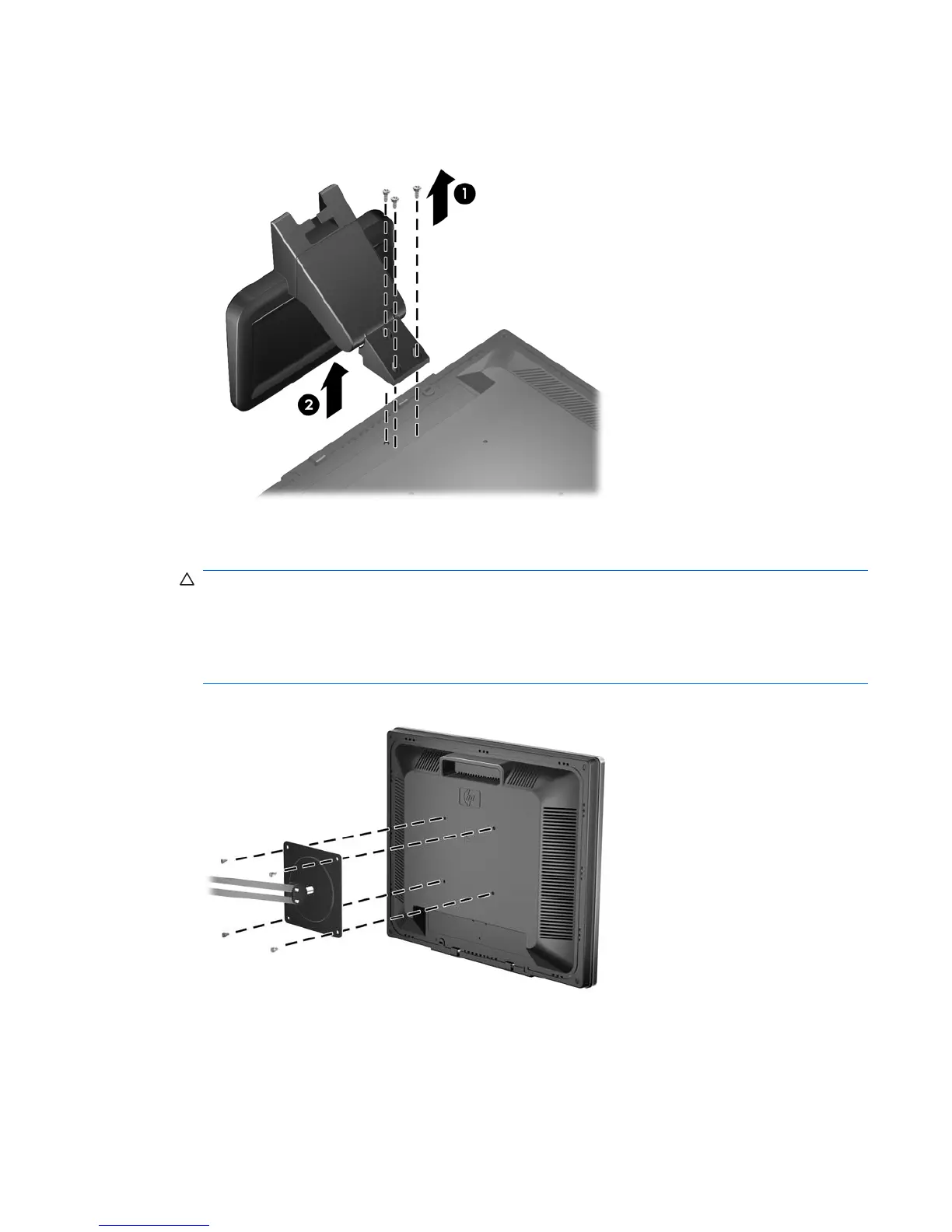

Figure 3-6 Removing the Pedestal Base
4. To attach the monitor to a swing arm, insert four 10mm screws through the holes on the swing arm
plate and into the mounting holes on the monitor.
CAUTION: This monitor supports the VESA industry standard 100 mm mounting holes. To attach
a third-party mounting solution to the monitor, four 4 mm, 0.7 pitch, and 10 mm long screws are
required (not provided with the monitor). Longer screws must not be used because they may
damage the monitor. It is important to verify that the manufacturer’s mounting solution is compliant
with the VESA standard and is rated to support the weight of the monitor display panel. For best
performance, it is important to use the power and video cables provided with the monitor.
Figure 3-7 Installing the Monitor on a Swing Arm
To attach the monitor to other mounting fixtures, follow the instructions included with the mounting
fixture to ensure that the monitor is safely attached.
5. Reconnect the cables to the monitor panel.
Mounting the Monitor Panel 9

HP Compaq LE1711 Specifications

General

Package depth	472 mm
Package width	448 mm
Package height	121 mm
Package weight	5100 g
3D	No
Panel type	TN
Pixel pitch	0.264 x 0.264 mm
Aspect ratio	5:4
Display surface	Matt
Display diagonal	17 \
Display resolution	1280 x 1024 pixels
Display technology	LED
Vertical scan range	50 - 76 Hz
Horizontal scan range	24 - 83 kHz
Contrast ratio (dynamic)	-
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	160 °
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	720 x 400, 1280 x 960, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Plug and Play	Yes
Tilt angle range	-5 - 35 °
Cable lock slot type	Kensington
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), DUT, ENG, ESP, FRE, ITA
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	20 - 80 %
DVI-D ports quantity	0
Current rating	0.50 A
AC input frequency	50 - 60 Hz
Power consumption (max)	22 W
Power consumption (standby)	2 W
Power consumption (typical)	19 W
Product color	Black, Silver
Country of origin	China

Weight and Dimensions

Depth (with stand)	206 mm
Height (with stand)	386 mm
Depth (without stand)	57 mm
Width (without stand)	377 mm
Height (without stand)	316 mm
Weight (without stand)	3900 g
