HP Compaq Mini 110c-1001 Maintenance And Service Guide

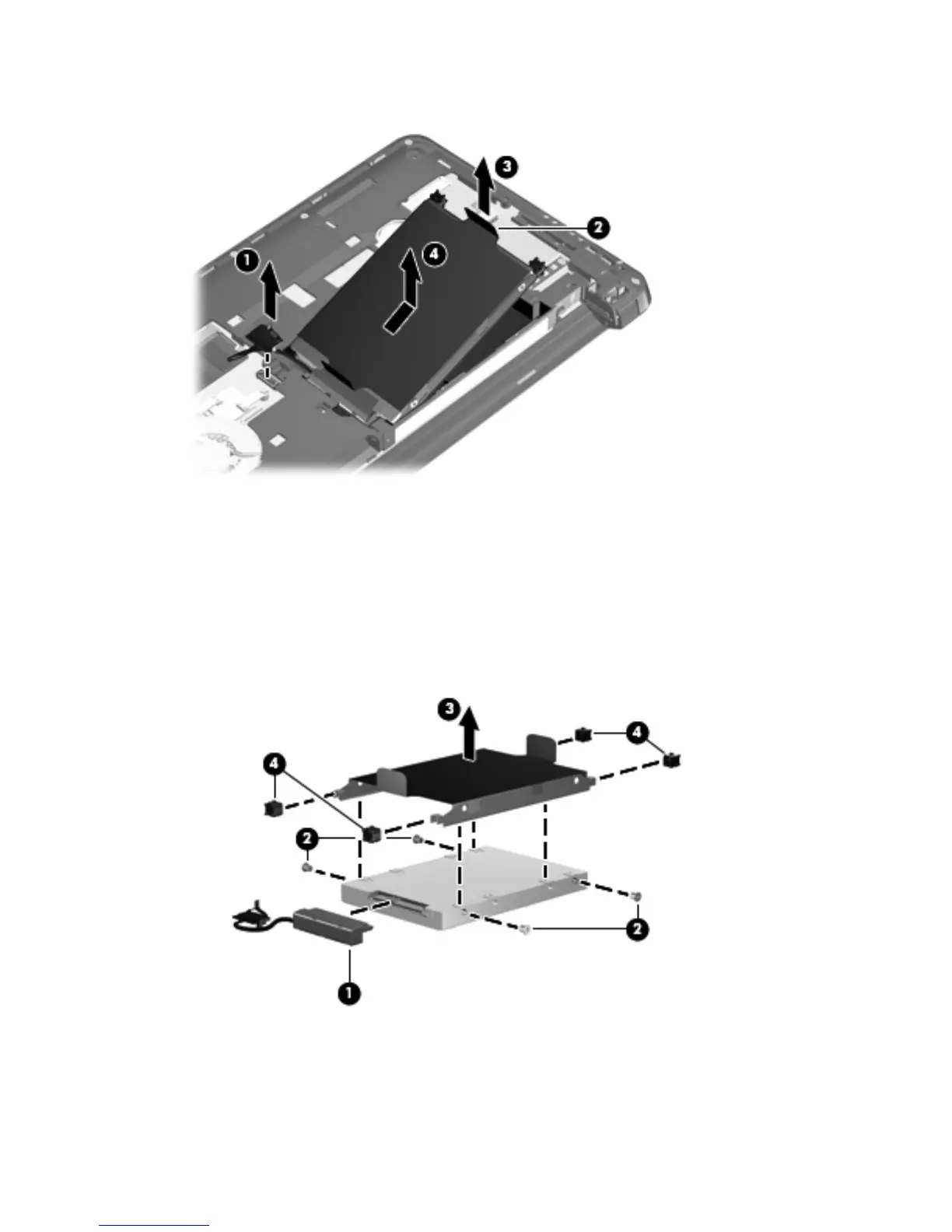

3. Remove the hard drive (4) by sliding it up and to the right at an angle.
4.
If it is necessary to replace the hard drive bracket, follow these steps:
a. Disconnect the cable adapter (1) from the hard drive.
b. Remove the four Phillips PM3.0×3.0 screws (2) that secure the hard drive bracket to the
drive.
c. Remove the hard drive bracket (3).
d. Remove the four rubber isolators (4) from the bracket.
Reverse this procedure to reassemble and install the hard drive.
44 Chapter 4 Removal and replacement procedures

HP Compaq Mini 110c-1001 Specifications

General

Brand	HP
Model	Compaq Mini 110c-1001
Category	Laptop
Language	English
