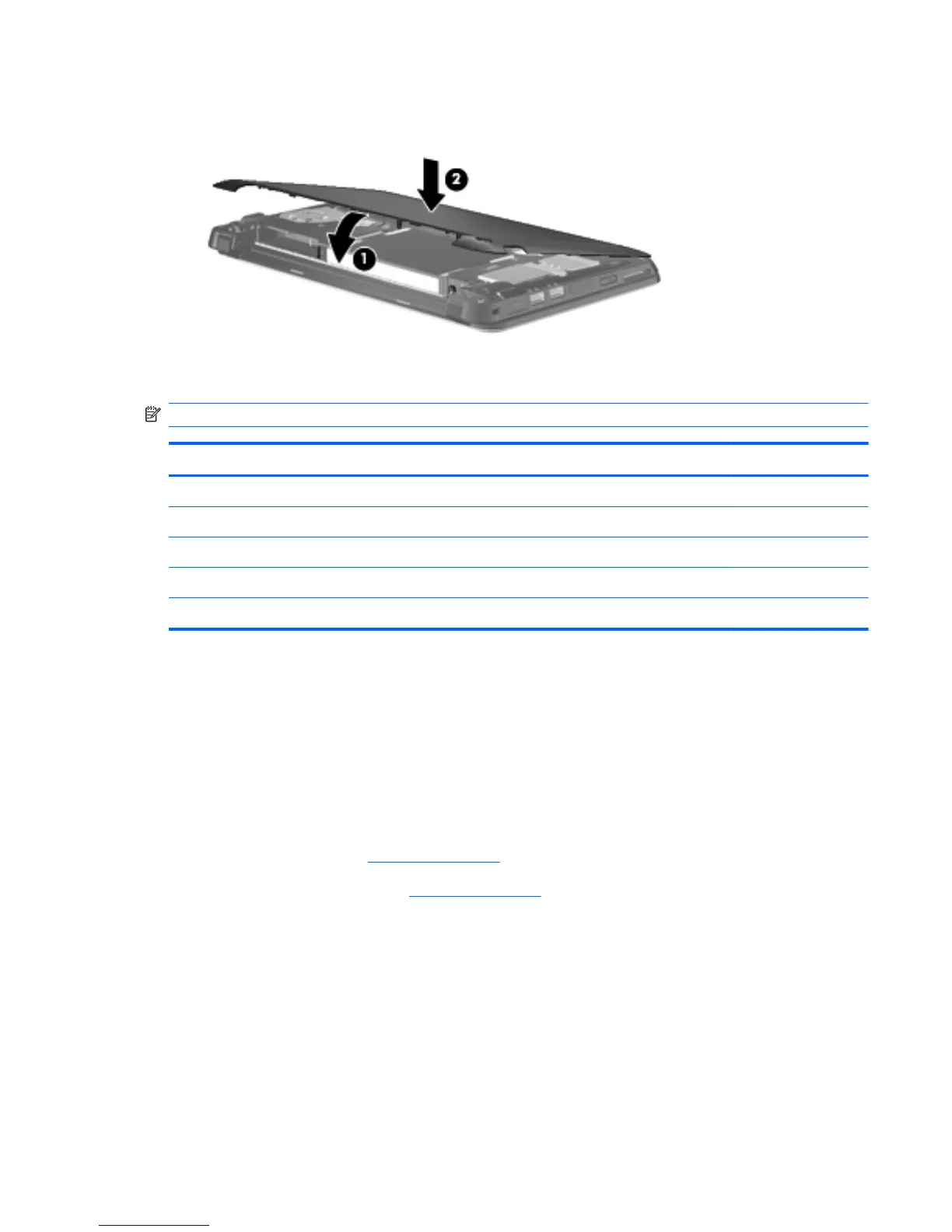

3. Swing the rear edge of the service cover (1) back and down, and then firmly press down on the
cover (2) so the clips on the cover access the slots on the base enclosure.
Hard drive
NOTE: Each hard drive spare part kit includes a cable adapter, bracket, and four rubber isolators.
Description Spare part number
Hard drive:
320-GB, 7200-RPM 590819-001
250-GB, 7200-RPM, WWAN 599665-001
160-GB, 7200-RPM, WWAN 599666-001
Hard Drive Hardware Kit 589673-001
Before removing a hard drive, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the battery (see
Battery on page 38).
5.
Remove the service cover (see
Battery on page 38).
Remove the hard drive:
1. Disconnect the hard drive cable (1) from the system board.
2. Use the Mylar tab (2) on the right side of the hard drive to lift the right side of the drive (3) until it
rests at an angle.
Component replacement procedures
43
