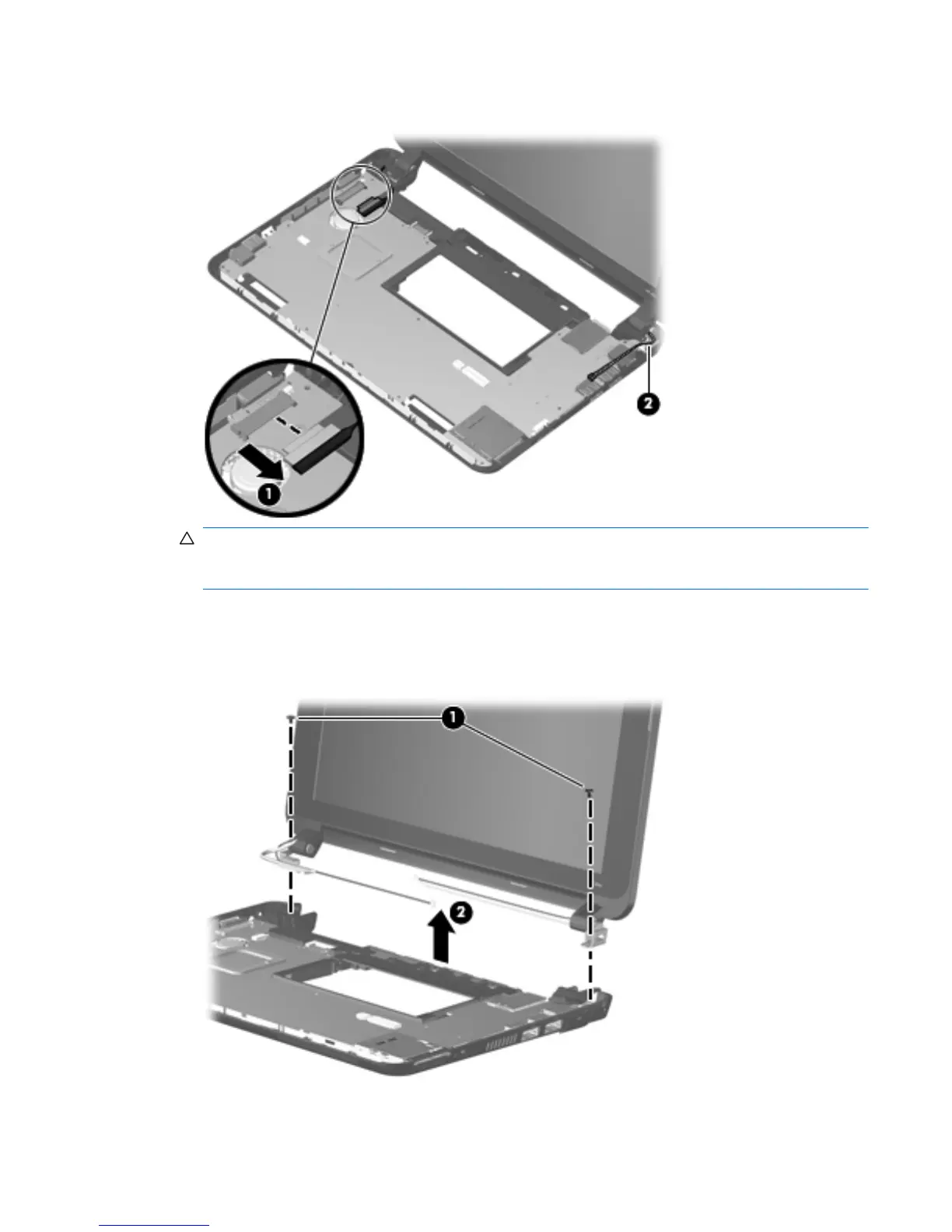

7. Release the wireless antenna cables (2) from the clip built into the base enclosure.
CAUTION: Support the display assembly when removing the following screws. Failure to
support the display assembly can result in damage to the display assembly and other device
components.
8. Remove the two Phillips PM2.0×4.0 screws (1) that secure the display assembly to the base
enclosure.
9. Remove the display assembly (2).
Reverse this procedure to reassemble and install the display assembly.
Component replacement procedures
63
