When replacing the system board, be sure that the following components are removed from the
defective system board and installed on the replacement system board:
●
SIM (see
SIM on page 39)
●
WWAN module (see
WWAN module on page 45)
●
WLAN module (see
WLAN module on page 47)
●
Memory module (see
Memory module on page 49)
●
RTC battery (see
RTC battery on page 51)
●
Fan/heat sink assembly (see
Fan/heat sink assembly on page 67)
Remove the system board:

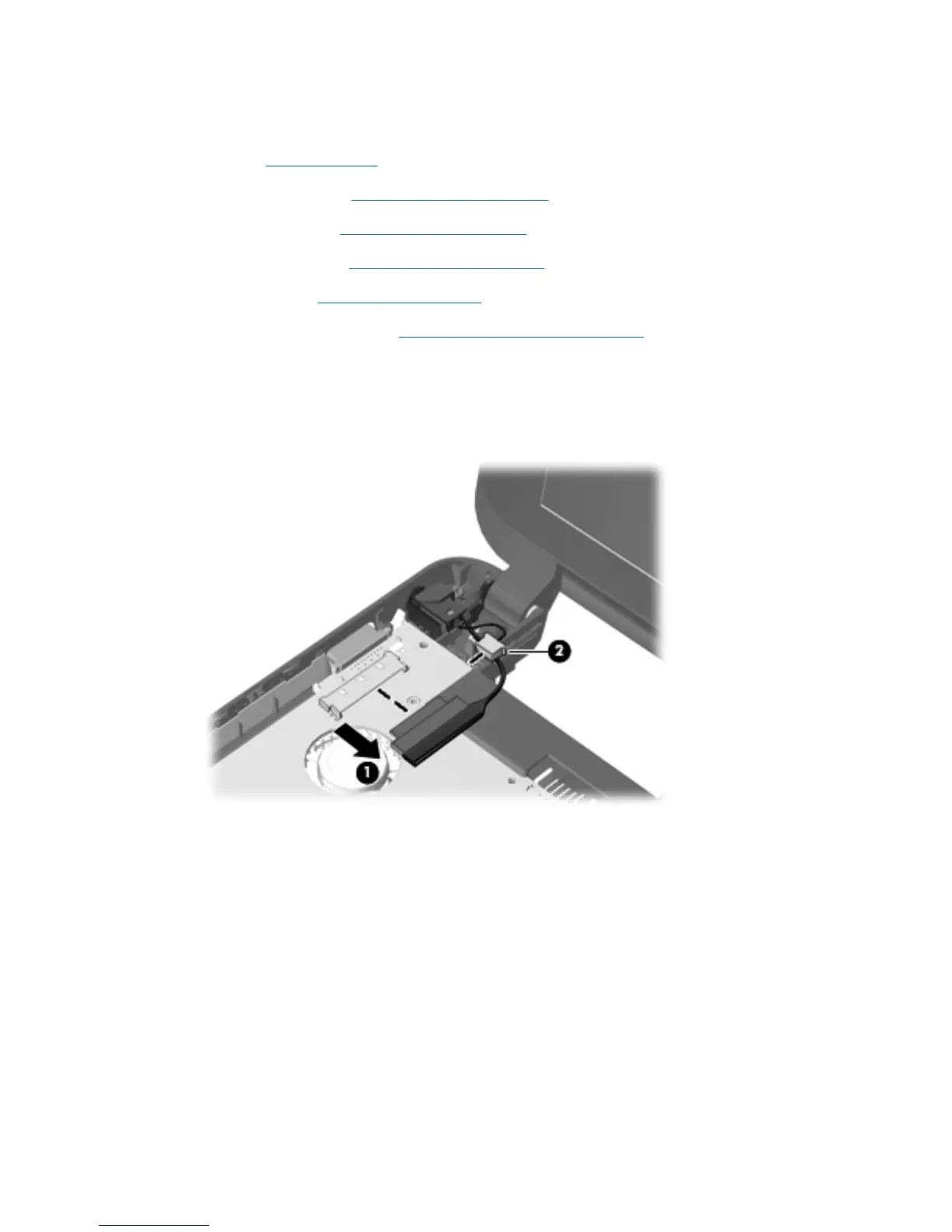

1. Disconnect the display panel cable (1) from the system board.
2. Disconnect the power connector cable (2) from the system board.
3. Remove the Phillips PM2.0×4.0 screw (1) that secures the system board to the base enclosure.
4. Lift the right side of the system board (2) until it rests at an angle.
