WWAN module (see
WWAN module on page 55)
●
RTC battery (see
RTC battery on page 58)
●
Memory module (see
Memory module on page 57)
●
Power connector cable (see
System board on page 74)
●
Fan (see
Fan on page 77)
●
Heat sink (see
Heat sink on page 79)
Remove the system board:

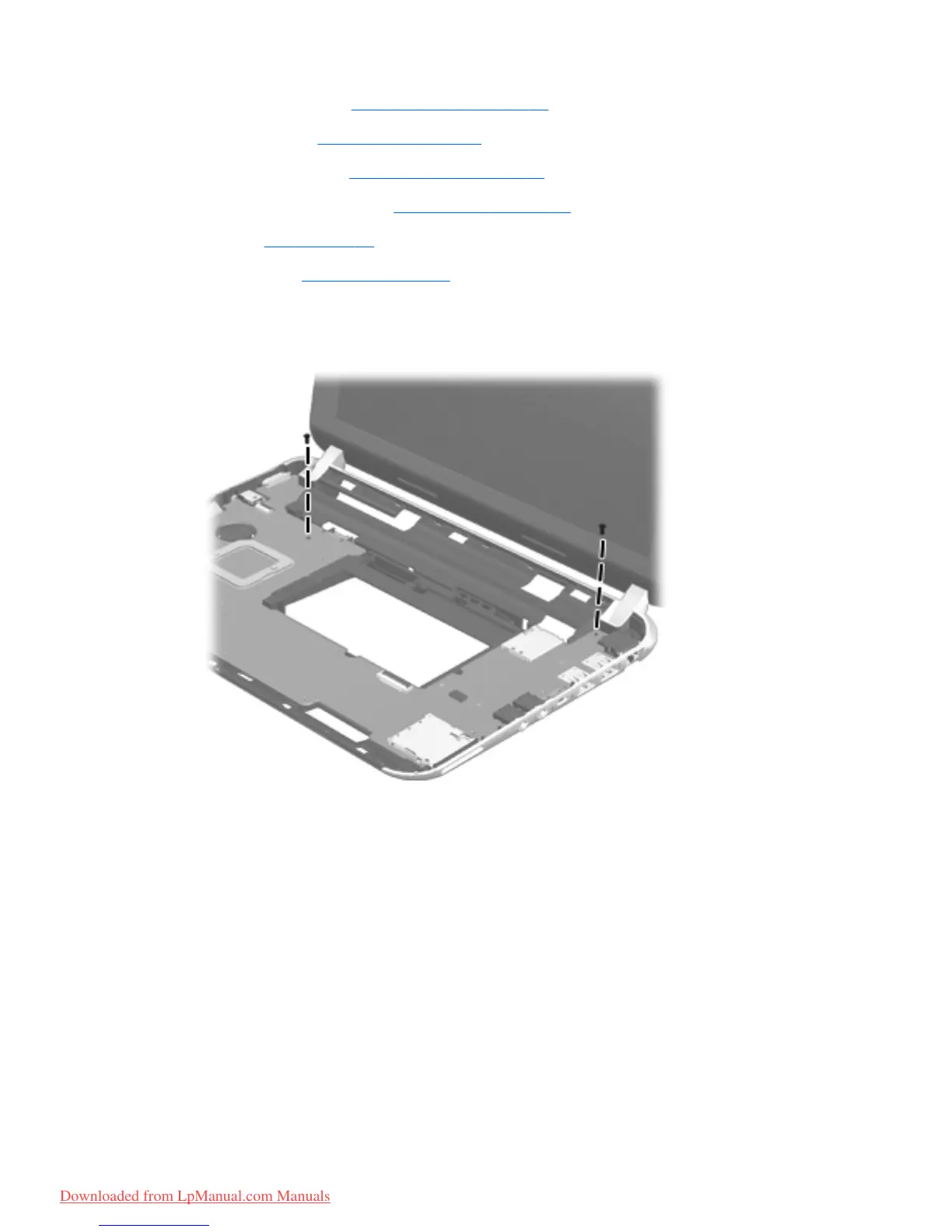

1. Remove the two Phillips PM2.0×5.7 screws that secure the system board to the base enclosure.
2. Release the power connector (1) from the clip built into the base enclosure.
3. Flex the right side of the base enclosure (2) until the jacks and ports on the right side of the
system board are clear of the openings in the base enclosure.
4. Lift the right side of the system board (3) until it rests at an angle.
Component replacement procedures
75
