Abbreviation Component
SR21 MP tray media-presence sensor
SR22 Duplex re-pickup sensor (duplex models only)

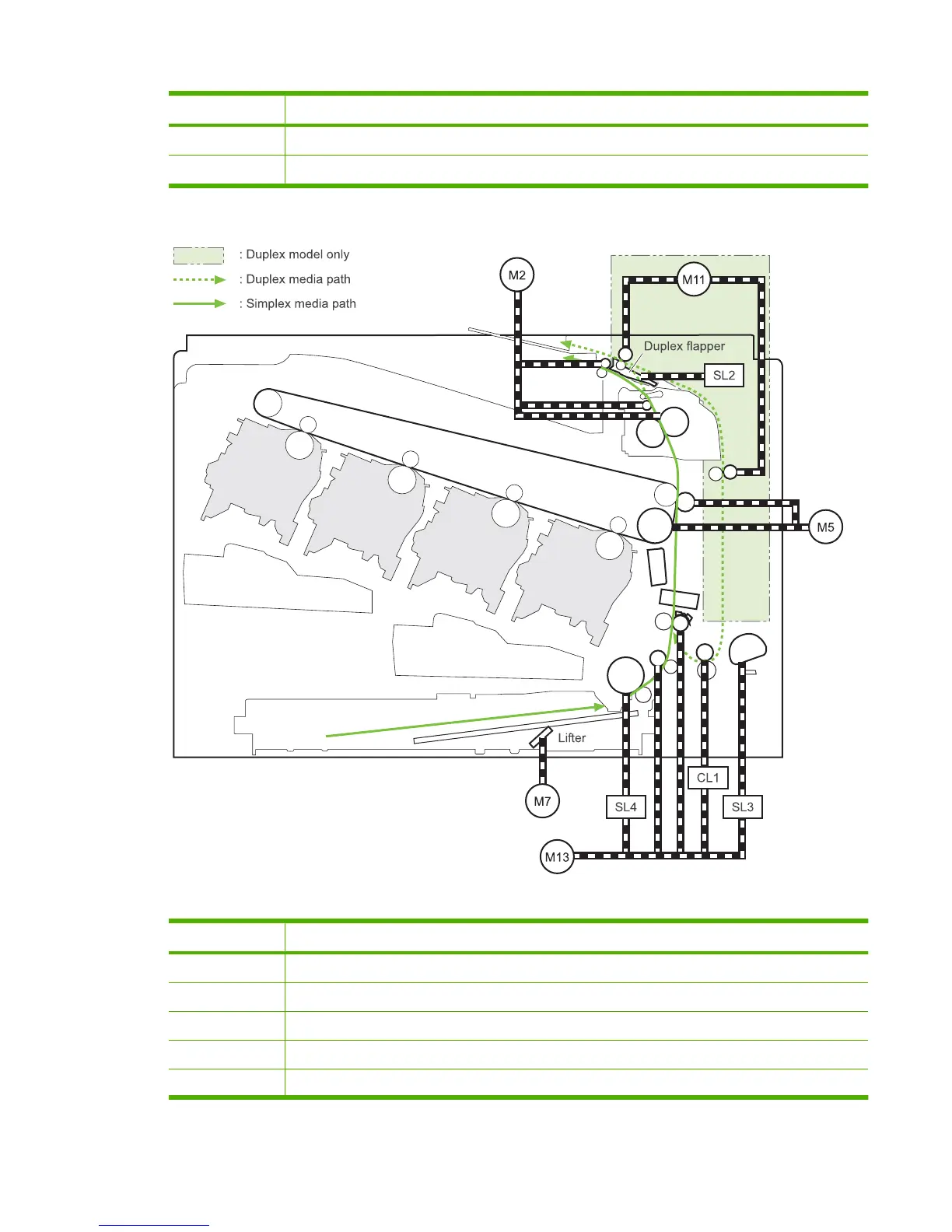

Figure 5-28 Motors and solenoids for the pickup, feed, and delivery system
Y
M
C
K
Table 5-13 Motors and solenoids for the pickup, feed, and delivery system
Abbreviation Component
M2 Fuser (fixing) motor
M5 Drum motor 3
M7 Lifter motor
M11 Duplex reverse motor (duplex models only)
M13 Pickup motor
Table 5-12 Switches and sensors for the pickup, feed, and delivery system (continued)
ENWW Pickup, feed, and delivery system 137
