Pickup roller (Tray 2)
CAUTION: Do not touch the spongy roller surface unless you are replacing the roller. Skin oils on the
roller can cause paper pickup problems.
1. Look up into the Tray 2 cavity (where the cassette would be installed), and pull down to release
the blue roller-locking lever.
Reinstallation tip When the roller is reinstalled, rotate the roller shaft several times to make sure
that the shaft correctly engages the drive mechanism. You should hear a click when the shaft
engages the drive mechanism.

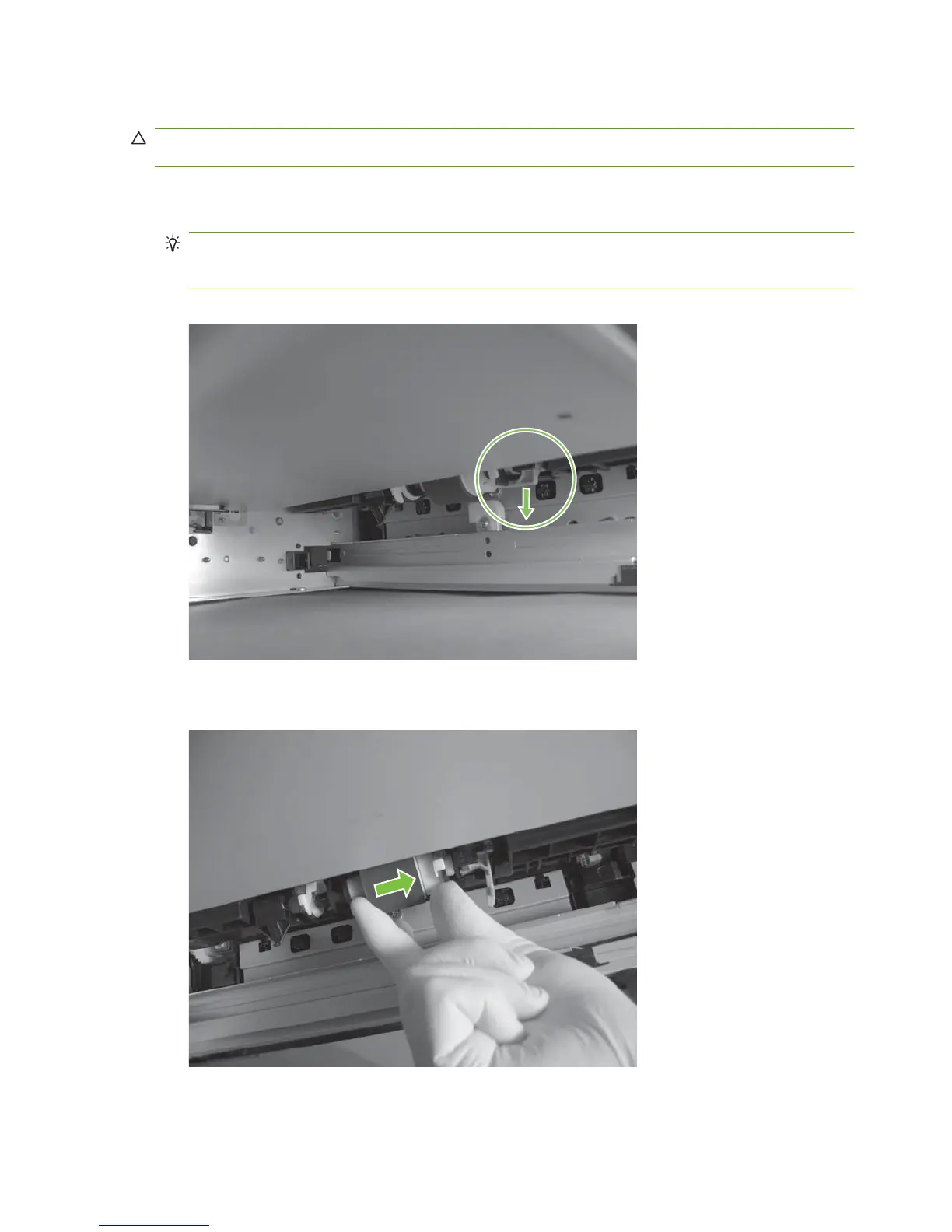

Figure 6-20 Remove the pickup roller (Tray 2) (1 of 4)
2. Pull the roller toward the front of the product to release the rear of the roller shaft.
Figure 6-21 Remove the pickup roller (Tray 2) (2 of 4)
180 Chapter 6 Removal and replacement ENWW
