Drum motor 2 or drum motor 3
Before proceeding, remove the following components:
●
Right-rear cover. See
Right-rear cover on page 198.
●
Left cover. See
Left cover on page 200.
●
Rear cover and upper-rear cover. See
Rear cover and upper-rear cover on page 209.
NOTE: It is not necessary to separate the upper-rear cover from the rear cover to remove drum
motor 2 or drum motor 3.
●
Interconnect board (ICB). See
Interconnect board (ICB) on page 238.
TIP: For internal product access, you can remove the ICB and the low-voltage power supply as
a single component.
●
Low-voltage power supply. See
Low-voltage power supply on page 243.
●
High-voltage power supply upper. See
High-voltage power supply upper (HVPS-T) on page 279.
Remove the drum motor 2 or drum motor 3
Do one of the following:
●
Remove drum motor 2: Disconnect one connector (callout 1), remove four screws (callout 2),
and then remove the motor.
●
Remove drum motor 3: Disconnect one connector (callout 3), remove four screws (callout 4),
and then remove the motor.

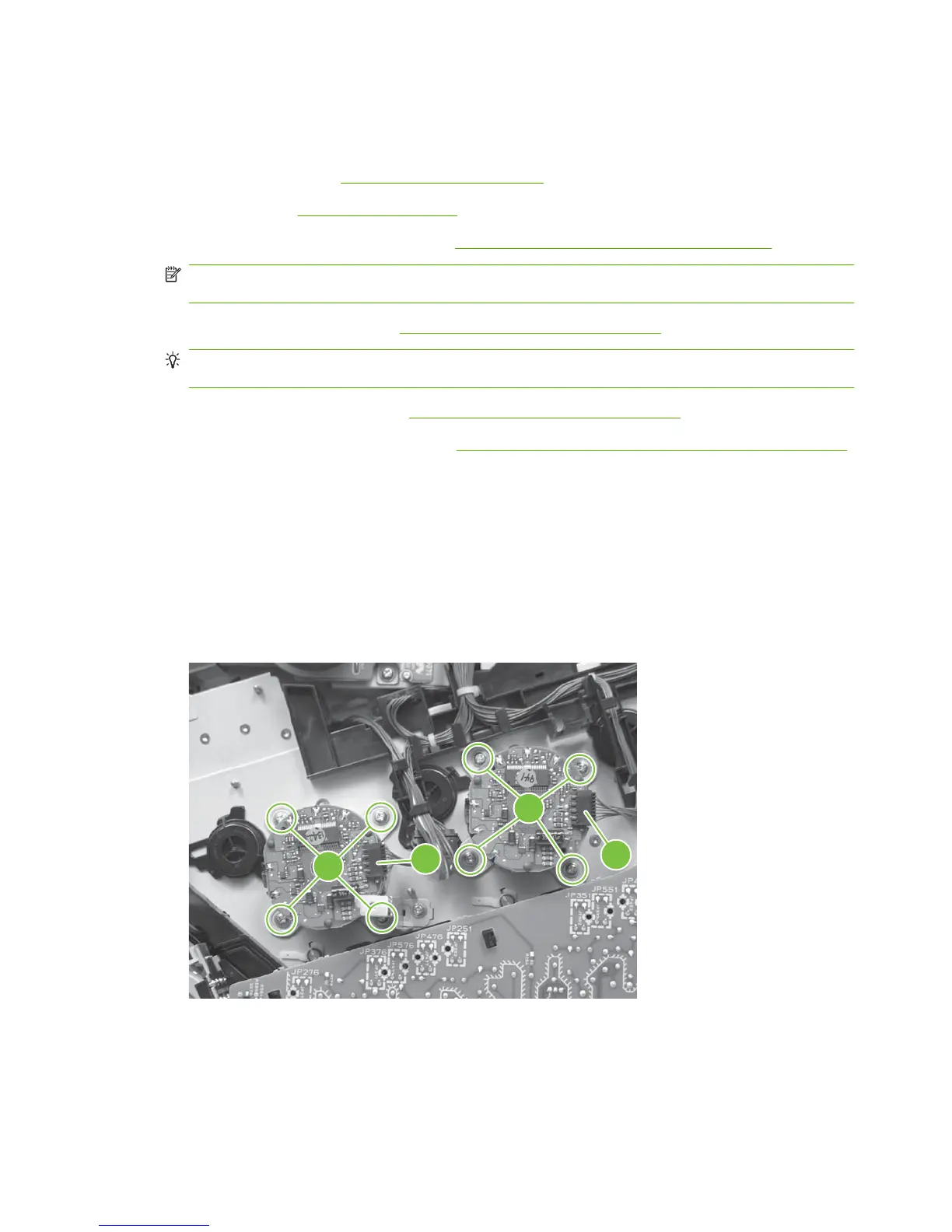

Figure 6-191 Remove the drum motor 2 or drum motor 3
4
3
1
2
284 Chapter 6 Removal and replacement ENWW
