Hardware Reference Guide www.hp.com 2-19
Hardware Upgrades
5. Press down on the green latch located on the front of the chassis
next to the drives 1. This disengages the drive cage.
6. Slide the drive cage forward until it stops 2. This unlocks the
drive.

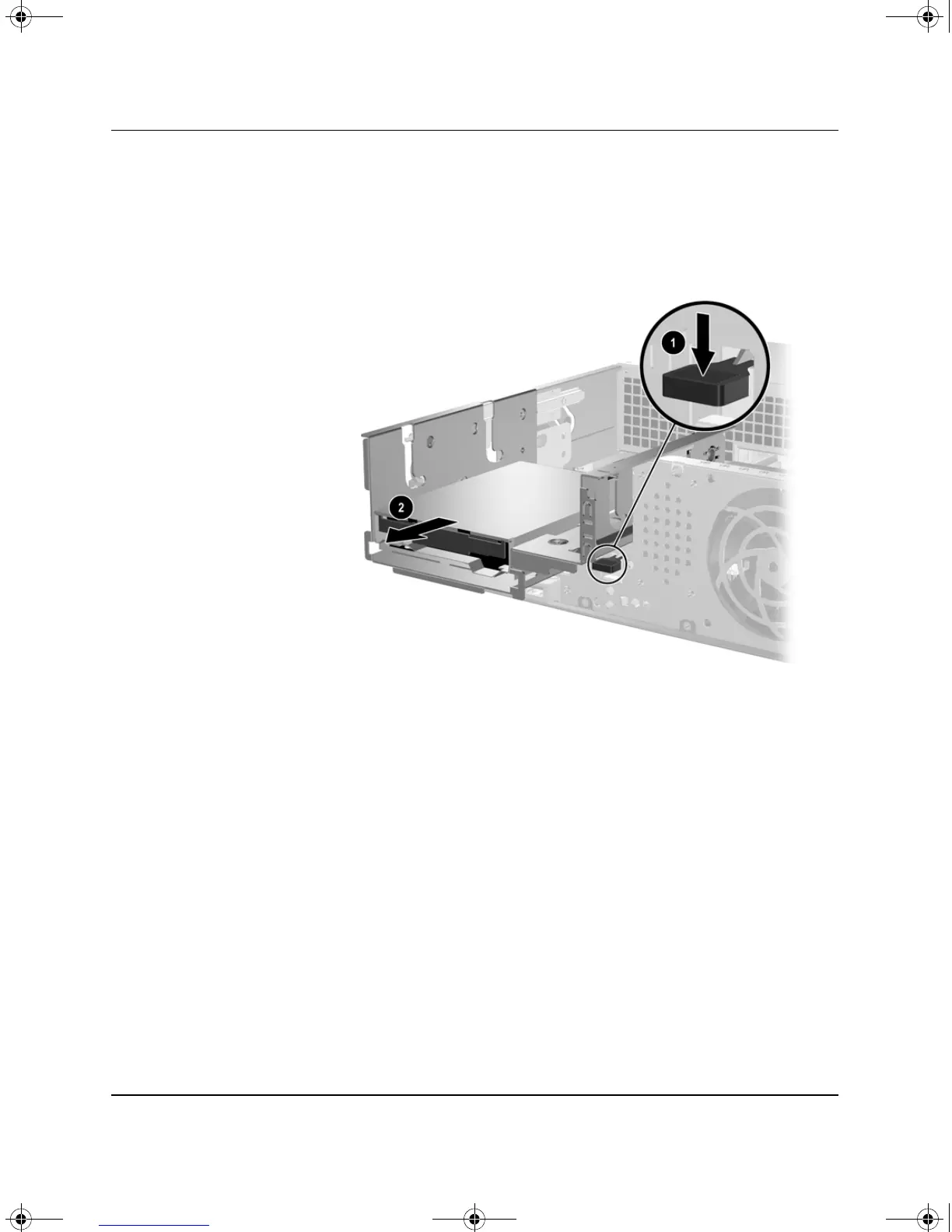

Disengaging the Drive Cage
376293-002.book Page 19 Friday, February 18, 2005 3:02 PM
