HP Designjet T1100

1
2
3
4
5
6
7
8
9
11
12
13
For information about changes to the formatter design,
see
New Formatter Design on page 5-31.
10
HP Designjet T Series — Service Manual 5-15
Parts and Diagrams - Left Hand Assemblies

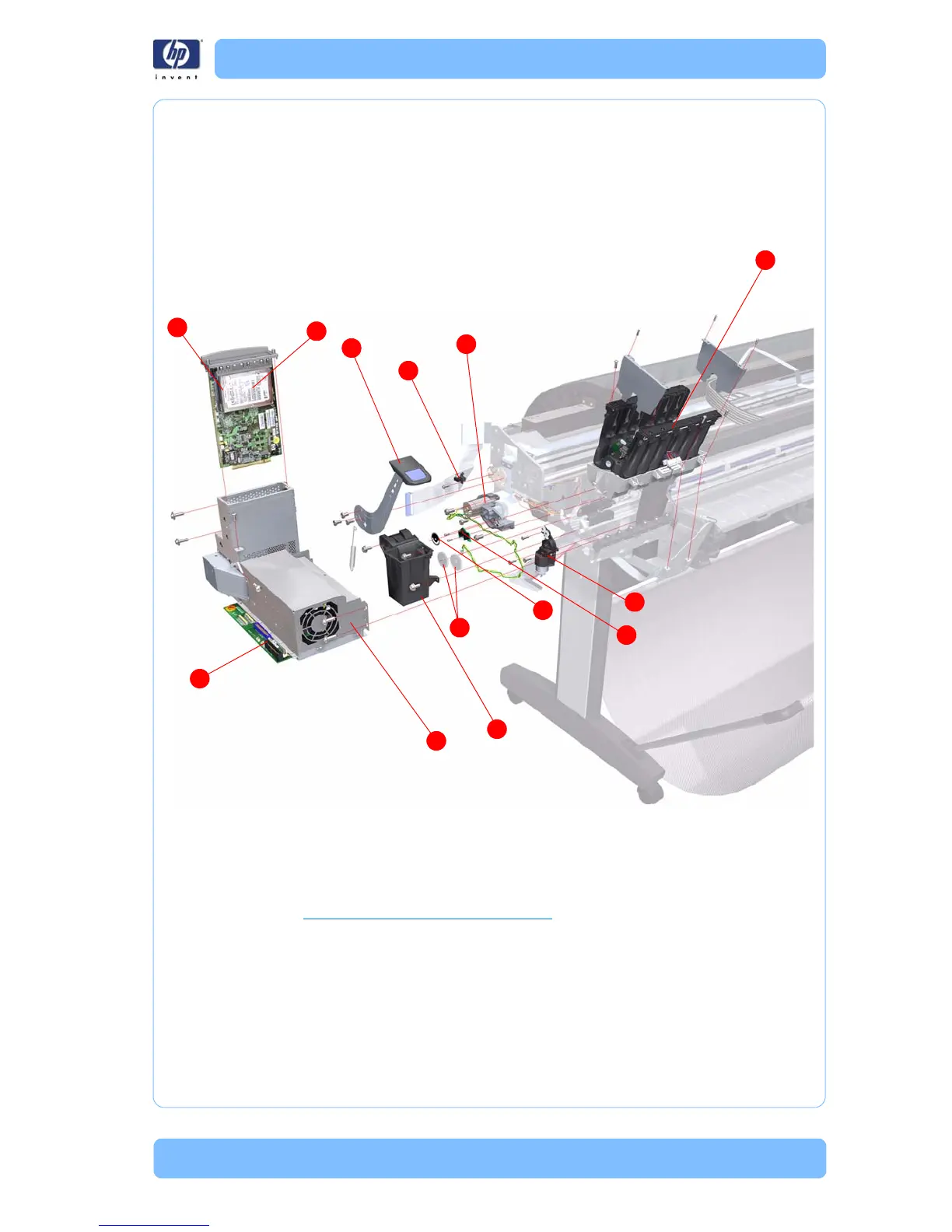

Figure 5-7: Left Hand Assemblies
