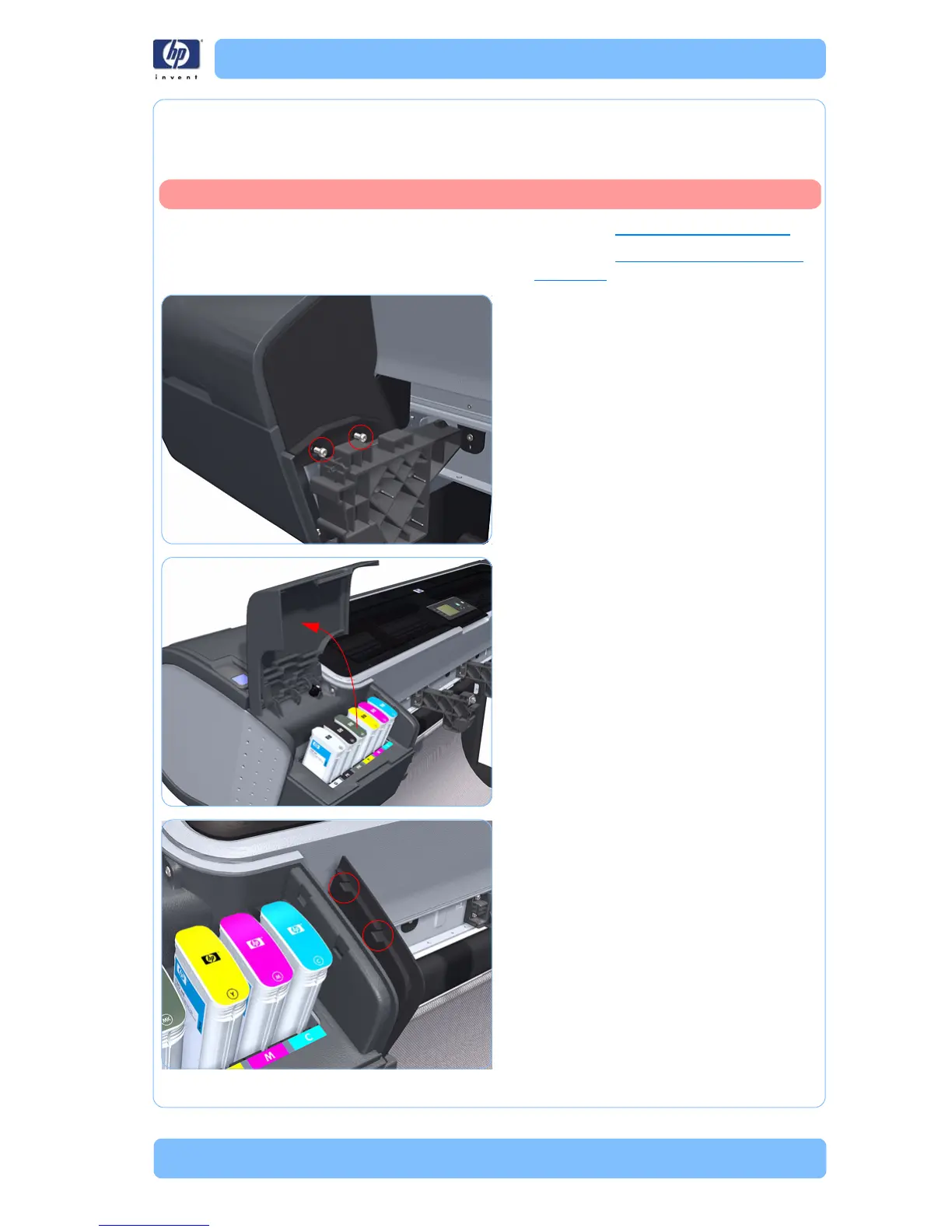

HP Designjet T Series — Service Manual 6-21
Removal and Installation - Left Front Trim
Left Front Trim
Removal
1. Remove the Front Cover on page 6-16.
2. Re
move the Media Output Assembly on
page 6-17.
3. Remove two T-15 screws that secure the Left
Front Trim to the printer.
4. Open the Left Ink Cartridge Door.
5. Unclip the Left Front Trim.
Switch off the printer and remove the power cable.
