HP Designjet T Series — Service Manual 6-59
Removal and Installation - Ink Supply Tubes Support Rail (T1120/T1120ps)
Ink Supply Tubes Support Rail (T1120/T1120ps)
Removal
1. Remove the Right Cover on page 6-27.
2. Re
move the Left Cover on page 6-30.
3. Re
move the Front Panel on page 6-47.
4. Re
move the Top Cover on page 6-50.
5. Re
move the Window Position Sensor on
page 6-53.

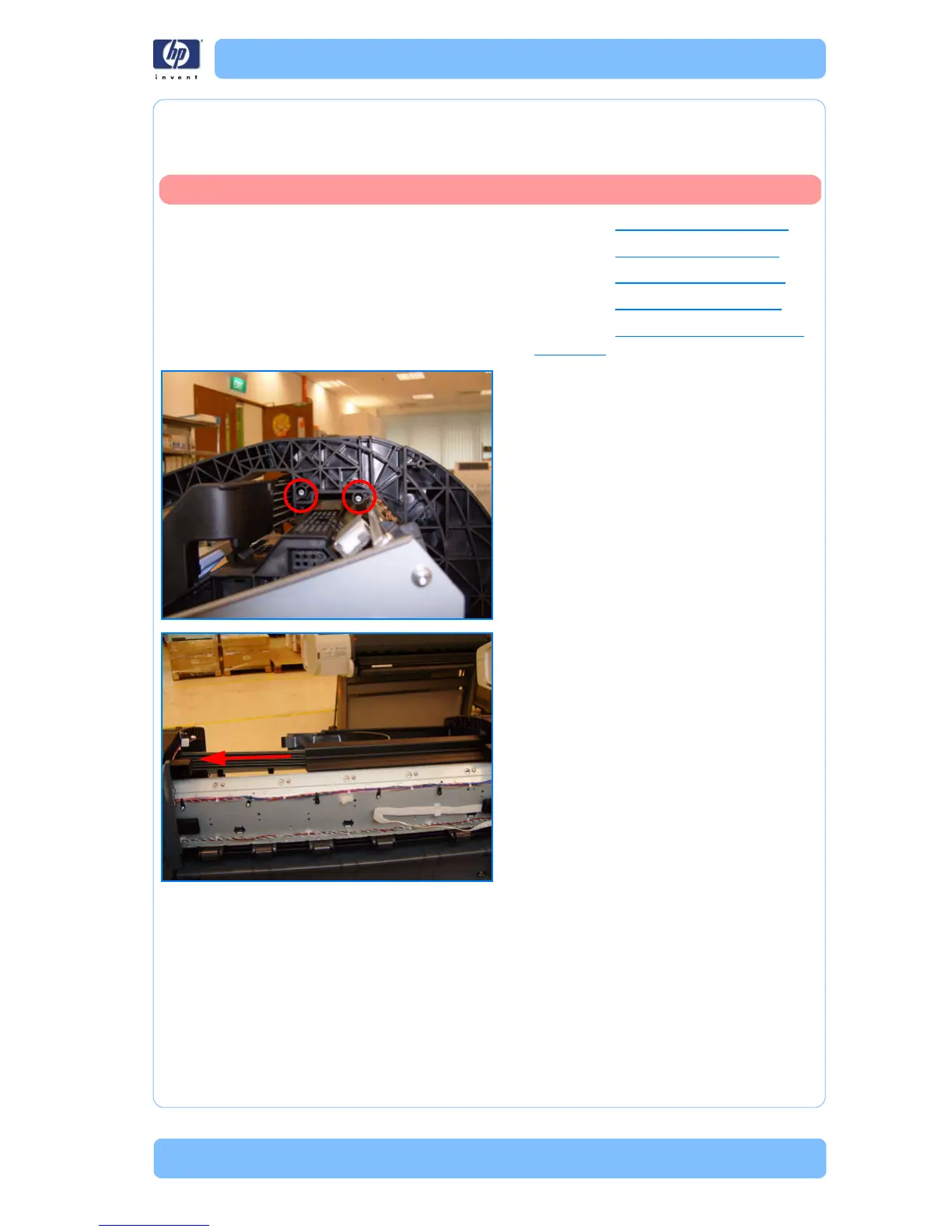

6. Remove two T-15 screws that secure the Ink
Supply Tubes Support Rail to the right Top
Cover Support.
7. Carefully slide the Ink Supply Tubes
Support Rail to the left until the right end is
clear of the right Top Cover Support.
Switch off the printer and remove the power cable.
