HP Designjet T1100

HP Designjet T Series — Service Manual 6-81

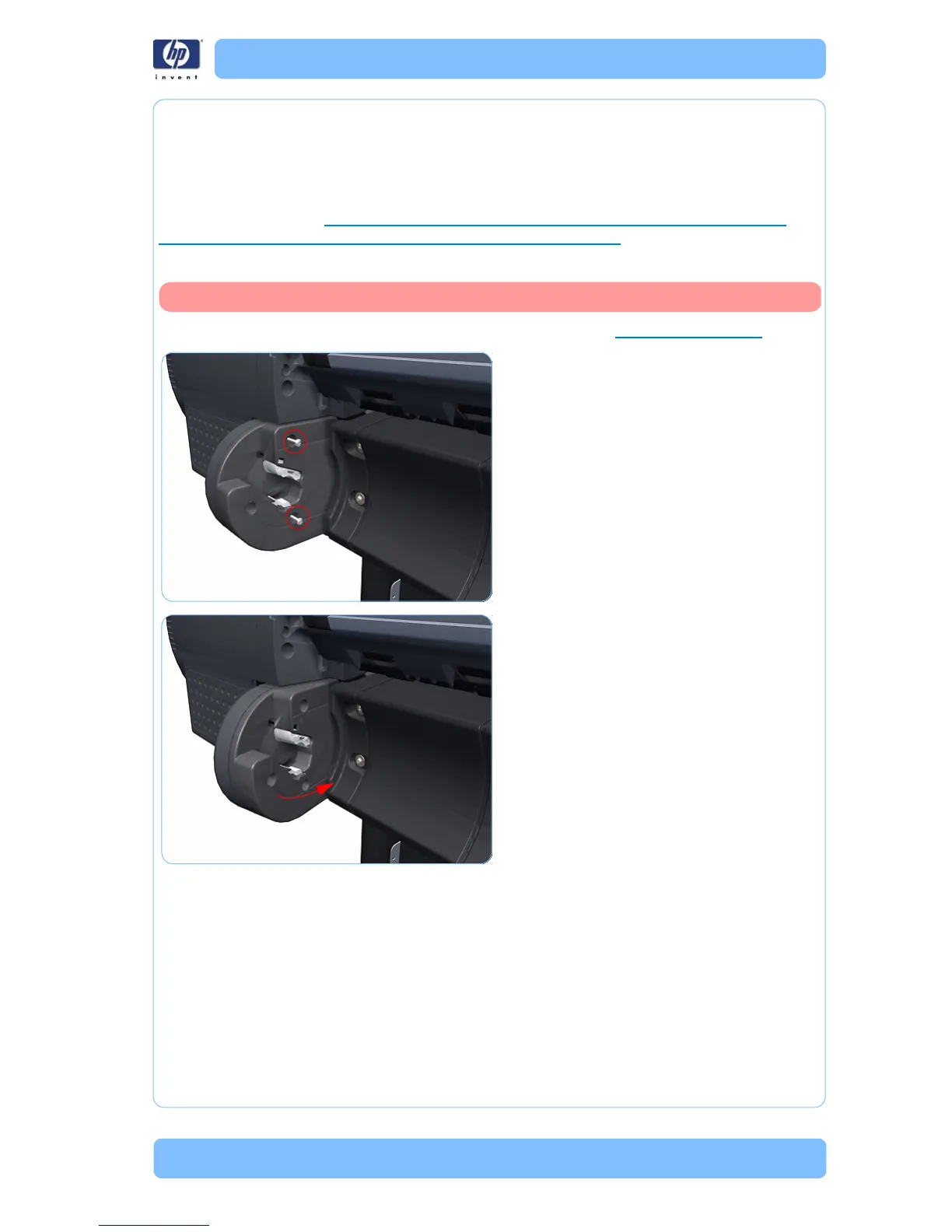

Removal and Installation - Right Spindle Holder (24” ONLY)
Right Spindle Holder (24” ONLY)
The Right Spindle Holder is only applicable to the 24 inch model printers. For the 44 inch model
this is replaced by the Right Spindle Holder and Rewinder.
For 44 inch models, see
Right Spindle Holder and Rewinder (T1120/T1120ps) on page 6-87 or
Right Spindle Holder and Rewinder (T1120/T1120ps) on page 6-87 depending on the model.
Removal
1. Remove the Spindle on page 6-79.
2. Remove two T-15 screws that secure the
Right Spindle Holder to the printer.
3. Rotate the Right Spindle Holder towards
the right.
Switch off the printer and remove the power cable.
