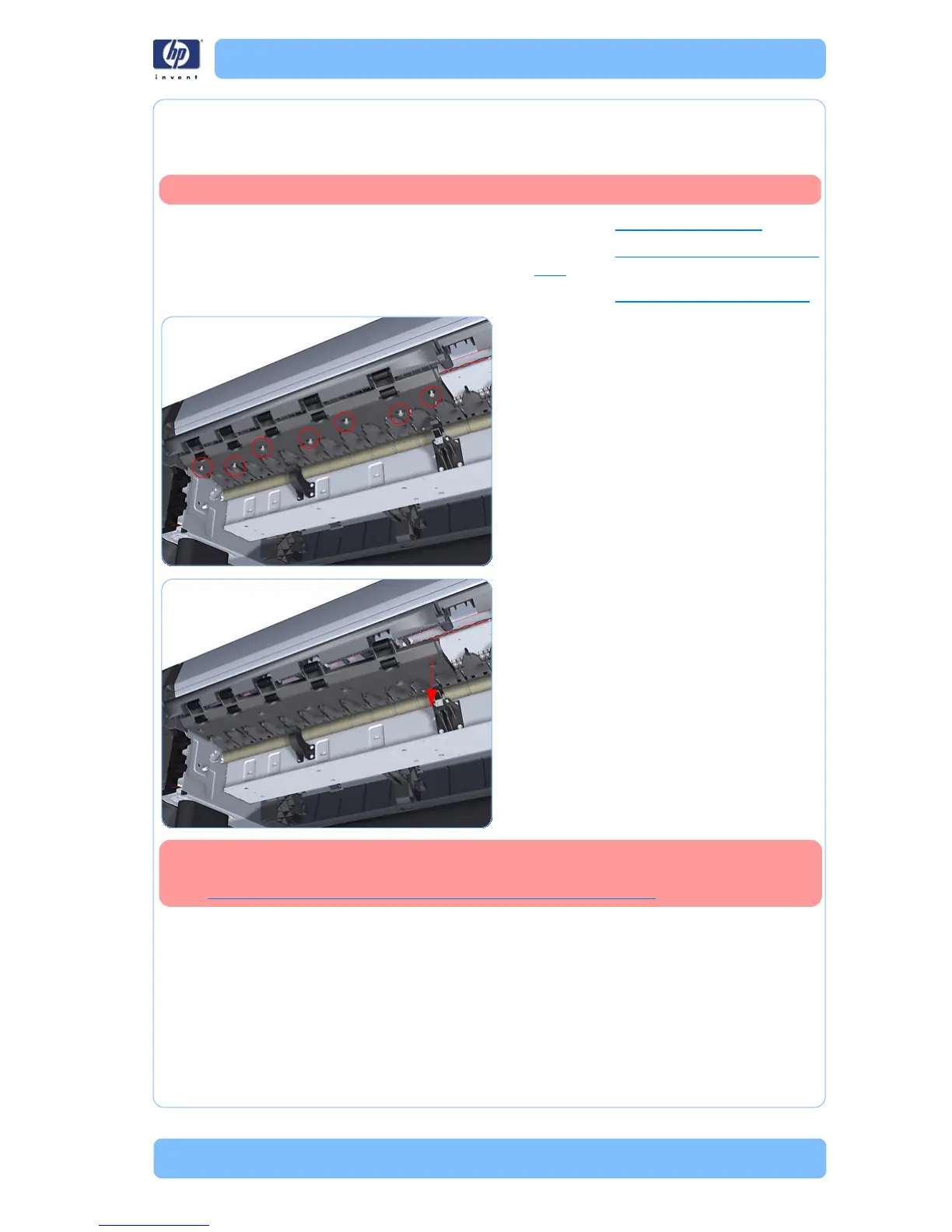

HP Designjet T Series — Service Manual 6-95
Removal and Installation - Right Roll Guide
Right Roll Guide
Removal
1. Remove the Spindle on page 6-79.
2. Remove the
Clean Out Assembly on page
6-90.
3. Remove the
Left Roll Guide on page 6-94.
4. Remove seven T-15 screws that secure Right
Roll Guide to the printer.
5. Lower the right end and remove the Right
Roll Guide from the printer.
When you finish installing or replacing this component, you must perform the
necessary Service Calibrations. To find which calibrations you must perform,
see Service Calibration Guide to Removal and Installation
on page 6-5.
Switch off the printer and remove the power cable.
