6-104 HP Designjet T Series — Service Manual
Removal and Installation

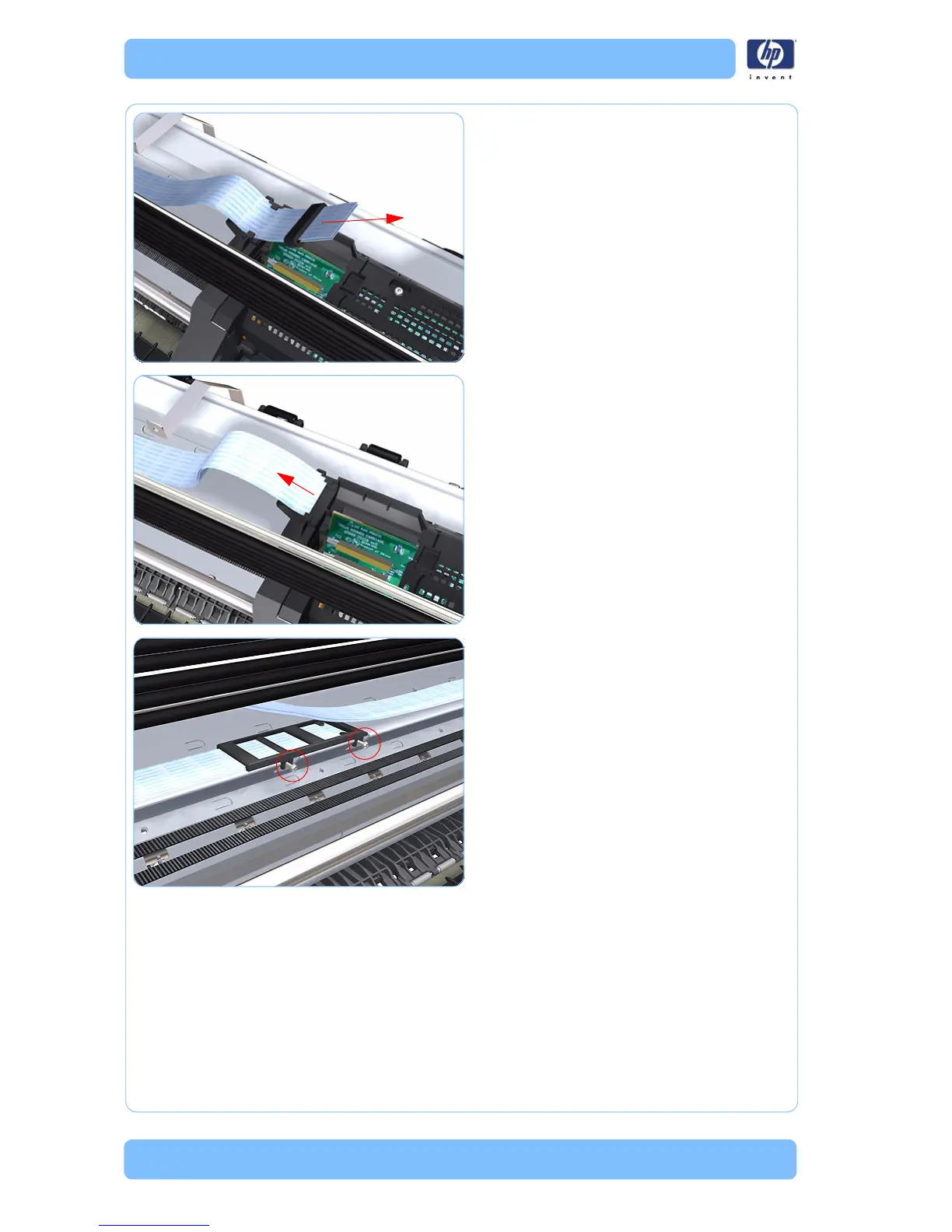

12. Straighten the two ribbon cables of the
Trailing Cables and remove the Ferrite
Core.
13. Slide the Trailing Cables out of the
attachment clips of the Carriage Assembly.
14. Use a short torx screwdriver to remove the
two T-10 screws that secure the center
attachment of the Trailing Cables.
