6-150 HP Designjet T Series — Service Manual
Removal and Installation
Carriage Rail Oiler

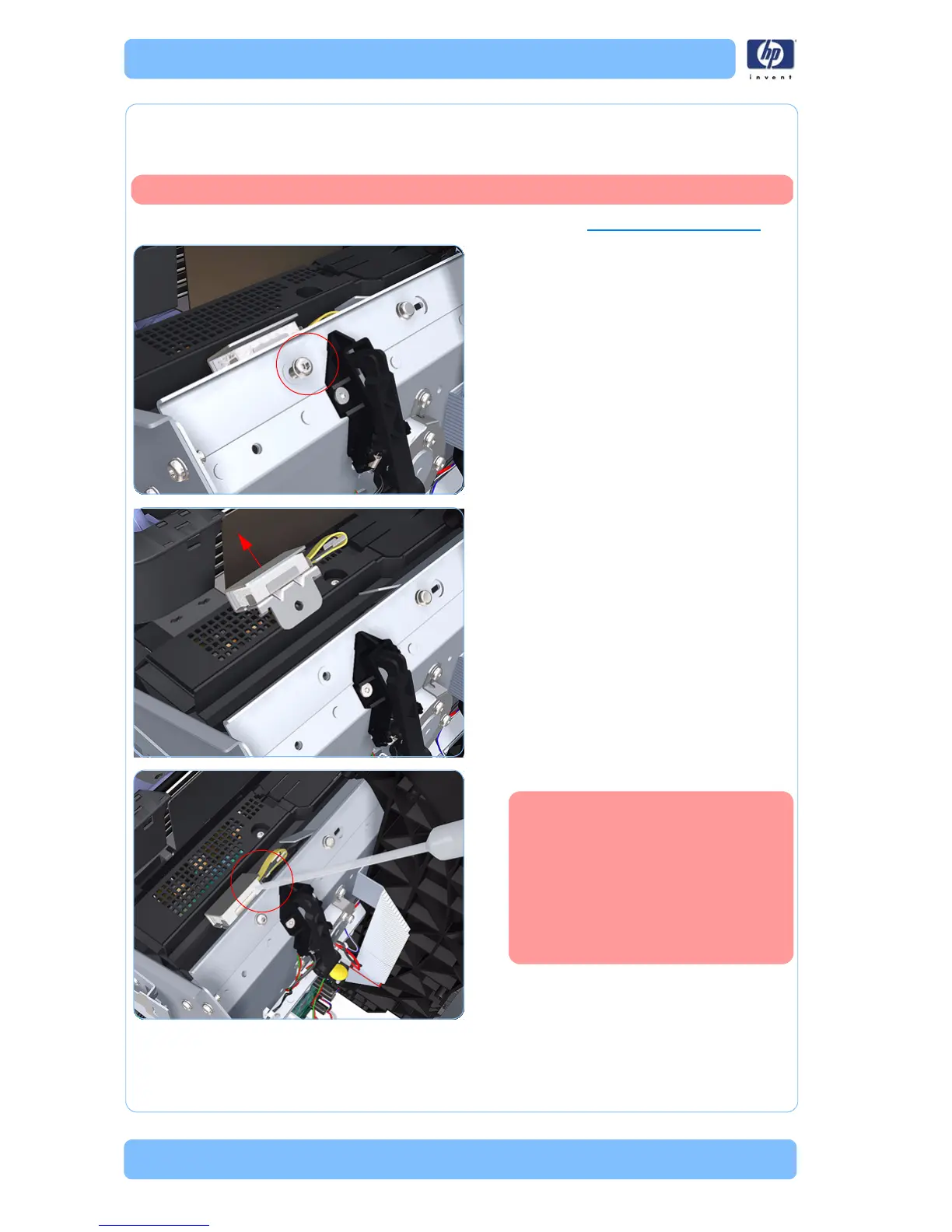

Removal
1. Remove the Right Cover on page 6-27.
2. Remove the T-15 Carriage Rail Oiler
attachment screw.
3. Remove the Carriage Rail Oiler from the
printer.
When you reinstall the
Carriage Rail Oiler, use the Oil
and Oil Dispenser from the
Lubrification Kit to add 2-3
drops of oil to the foam of the
Carriage Rail Oiler and in the
small depression of the
Carriage Rear Bushing.
Switch off the printer and remove the power cable.
