HP Designjet T1100

HP Designjet T Series — Service Manual 6-163
Removal and Installation - Carriage Cover and Carriage Latch (T1100/T1100ps/T610)
Carriage Cover and Carriage Latch (T1100/T1100ps/T610)
Removal
1. Remove the Right Cover on page 6-27.
2. Re
move the Left Cover on page 6-30.
3. Re
move the Front Panel on page 6-47.
4. Re
move the Top Cover on page 6-50.
5. Re
move the Window Position Sensor on
page 6-53.
6. Re
move the Ink Supply Tubes Support Rail
(T1100/T1100ps/T610) on page 6-55.

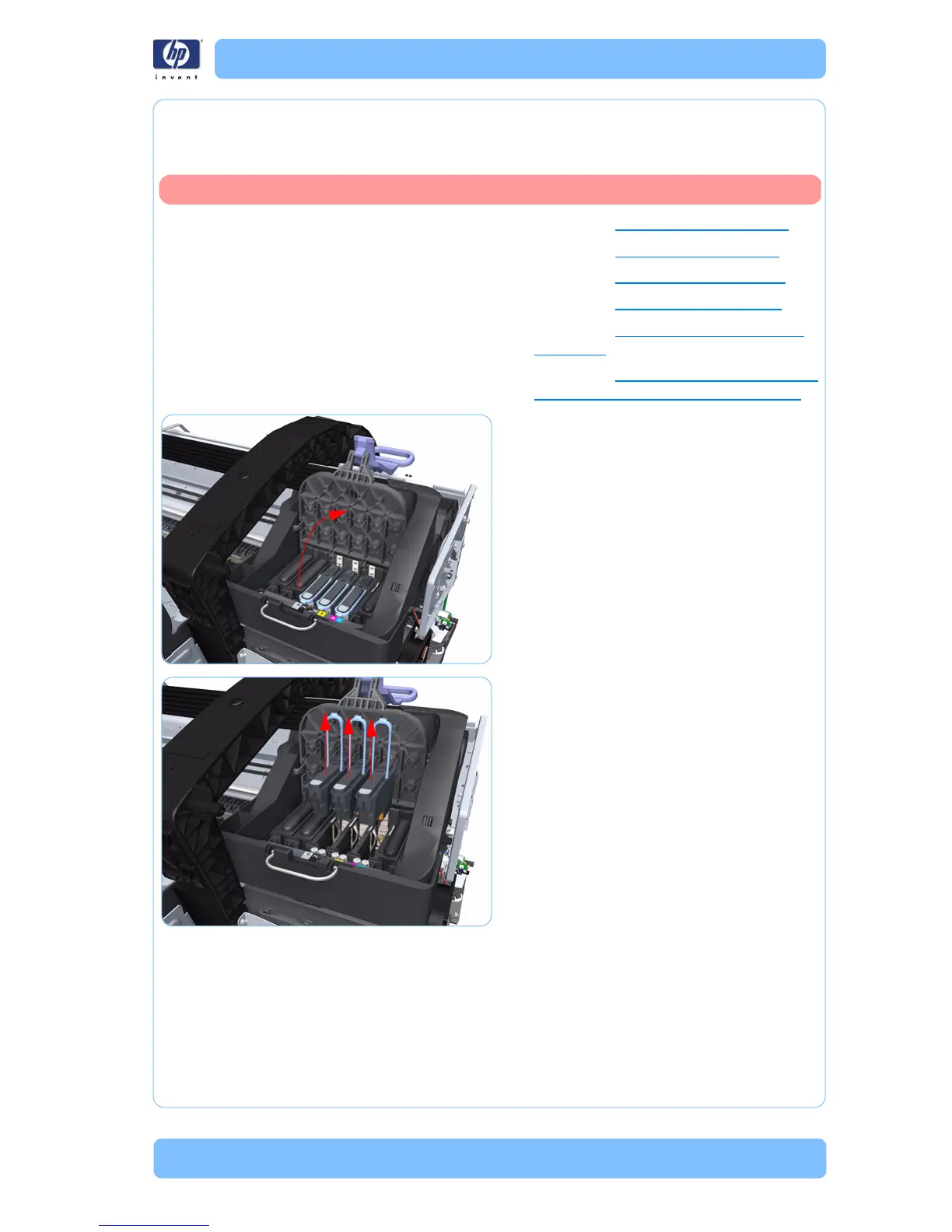

7. Open the Carriage Cover.
8. Remove all the Printheads.
Switch off the printer and remove the power cable.
