HP Designjet T1100

HP Designjet T Series — Service Manual 6-211
Removal and Installation - Print Zone Overdrive

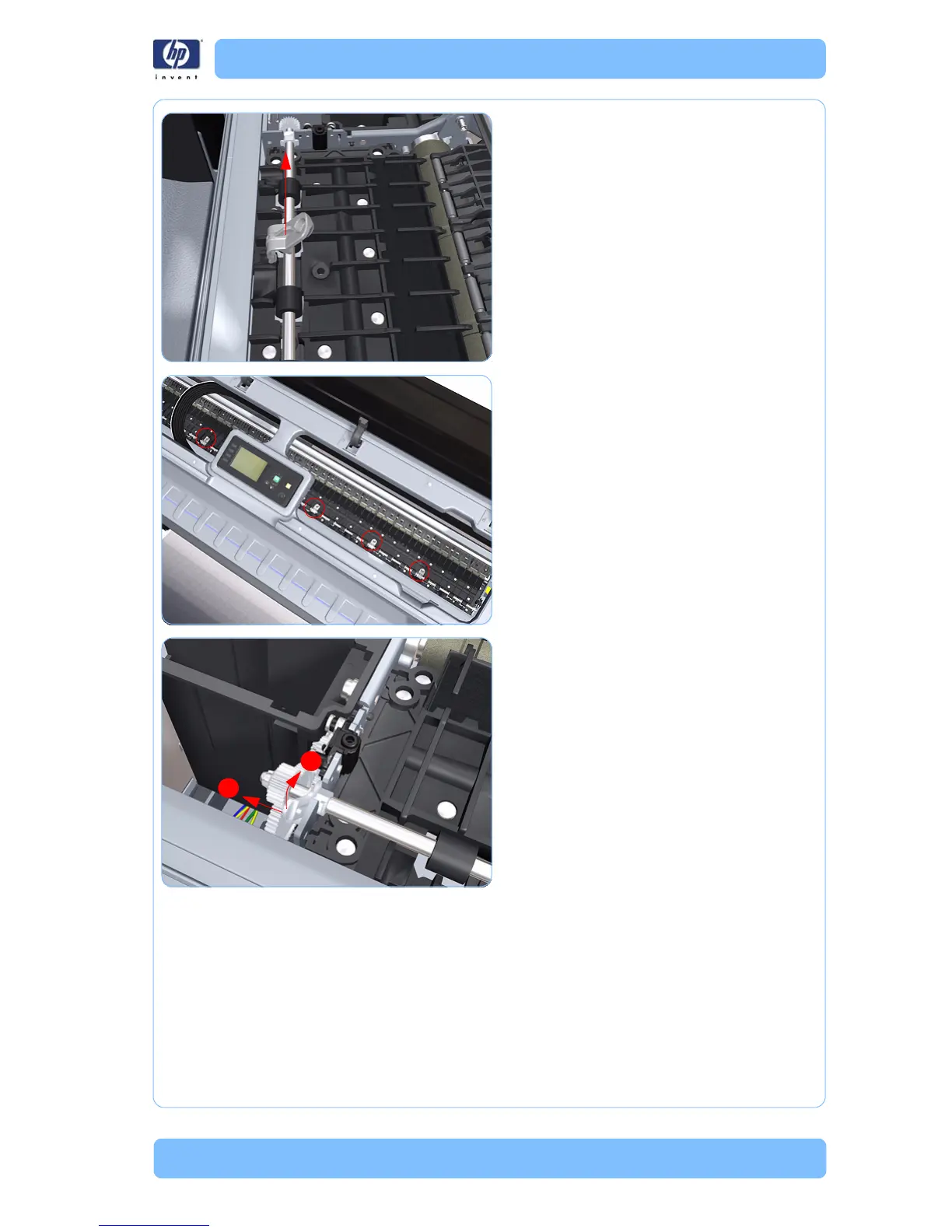

4. Remove the clamp.
5. Repeat steps 2 to 4 to remove the
remaining five attachment clamps.
6. Use a flat bladed screwdriver to unclip the
left Print Zone Overdrive retaining clip and
rotate the clip vertically.
1
2
