HP Designjet T Series — Service Manual 6-247
Removal and Installation - Full Bleed Foam

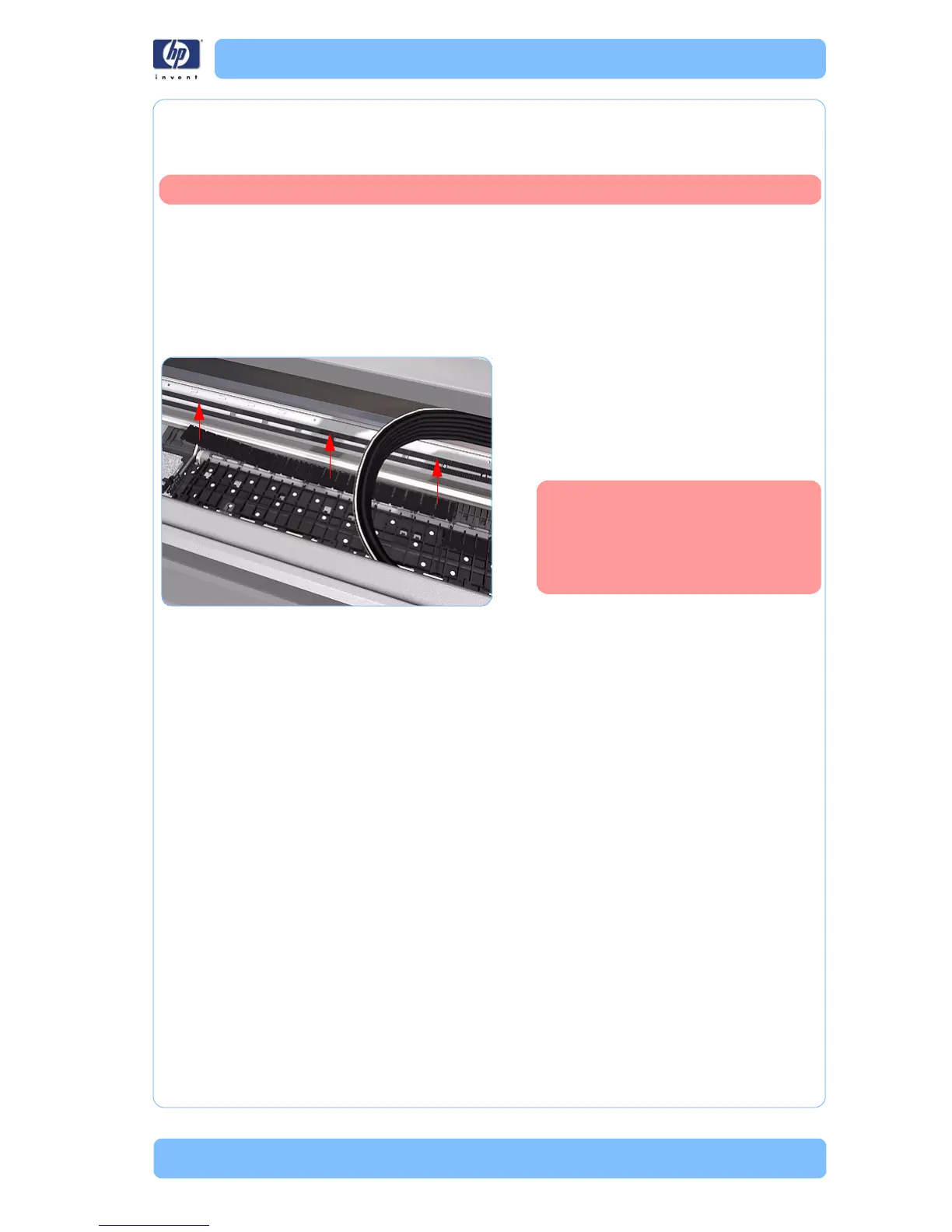

Full Bleed Foam
Removal
The complete Full Bleed Foam is
constructed of three separate sections,
left, center and right. This procedure
only describes how to remove the left
section. Removal of the other two
sections is identical.
1. Ope
n the Window.
2. Remove the Left Full Bleed Foam from the
left platen.
3. Remove the Platten Middle Foams that are
e
xposed once the Full Bleed Foam has
been removed.
When you reinstall the full
bleed foams, take care to
correctly seat them to avoid
possible damage to the
Carriage Assembly
Switch off the printer and remove the power cable.
