HP DL380 - ProLiant G4 9 TB Data Protection Storage Server NAS Installation Instructions

Page 2

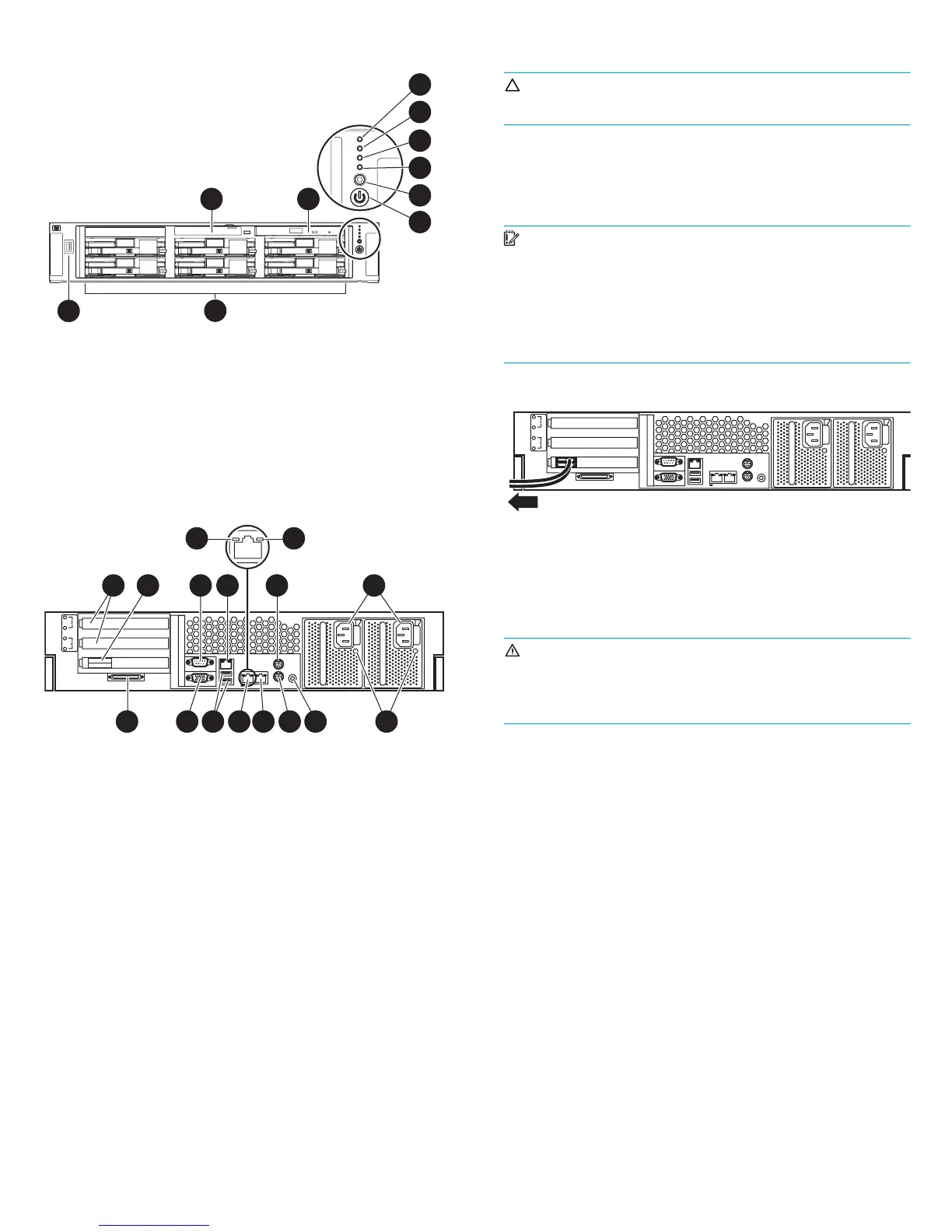

Front panel
Back panel
Installing the server into the rack
CAUTION: Always install the heaviest item first, and continue
to populate the rack from the bottom to top.
1. Install the server and cable management arm. See the
installation instructions that ship with the 2U Quick Deploy Rail
System. If you chose not to install the cable management arm,
install the power cord anchor to the server.
IMPORTANT: When using cable management arm
components, ensure that there is enough slack in each of the cables
to prevent damage to the cables when the server is extended from
the rack. If using the power cord anchor, ensure that there is enough
slack in the power cord so that the redundant power supply can be
removed without disconnecting the power cord from the primary
power supply.
2. Install the MSA cables, as shown, and any peripheral devices.
3. Connect the power cord to the back of the server.
4. Secure cables to the cable management arm, if installed.
WARNING! To reduce the risk of electric shock or damage to
the equipment, connect the VHDCI connector on the controller
module to the external connector of a sixth-generation Smart Array
Controller on the server.
Starting the DP Storage Server
To begin the first-time startup procedure:
• Ensure that the server is safely installed in an adequate
environment.
• Ensure that the power cables and peripheral devices are
plugged in, and that AC power is supplied to the server.
• See the DP Storage Server startup chapter in the HP ProLiant
Data Protection Manager Server user guide.
1 Hard drive bays 2 USB port
3 Diskette drive bay 4 DVD/CD-ROM drive
5 Internal health LED 6 External health LED
7 NIC 1 link/activity LED 8 NIC 2 link/activity LED
9 UID LED button 10 Power on/standby
button/system power LED
1 Non-hot-plug PCI-X expansion
slot 3, 64 bit/100 MHz, bus B
2 Smart Array 6402 128 MB
RAID controller
3 Serial connector 4 iLO connector
5 Mouse connector 6 Power cord connector
7 Keyboard connector 8 NIC 1 connector
9 NIC 2 connector 10 USB connectors
11 Video connector
12 VHDCI SCSI connector (port 1)
13 RJ-45 link LED 14 RJ-45 activity LED
15 UID LED 16 Power supply LEDs
1
2
7
6
5
3 4
8
9
10
10679B6
1
13 14
12 11 10 9 8 7 15 16
2 3 4 5 6
To MSA array
10680B680
