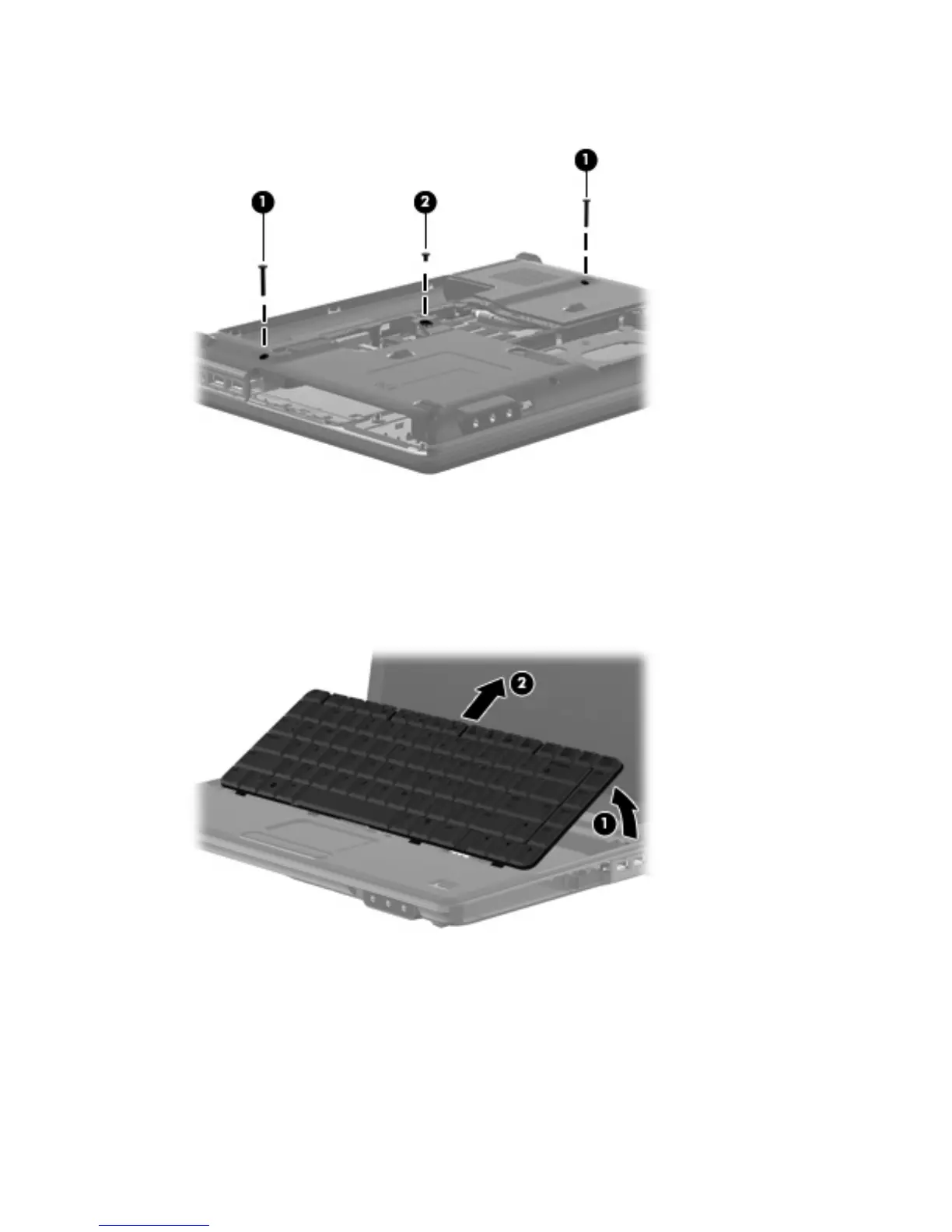

2. Remove the two Phillips PM2.5×17.0 screws (1), and the Phillips PM2.5×9.0 screw (2) that secure
the keyboard to the computer.
3. Turn the computer display-side up, with the front toward you.
4. Open the computer as far as possible.
5. Lift the rear edge of the keyboard (1) until it rests at an angle.
6. Release the keyboard (2) by sliding it back to disengage the tabs on the front edge of the keyboard
from the top cover.
74 Chapter 4 Removal and replacement procedures
