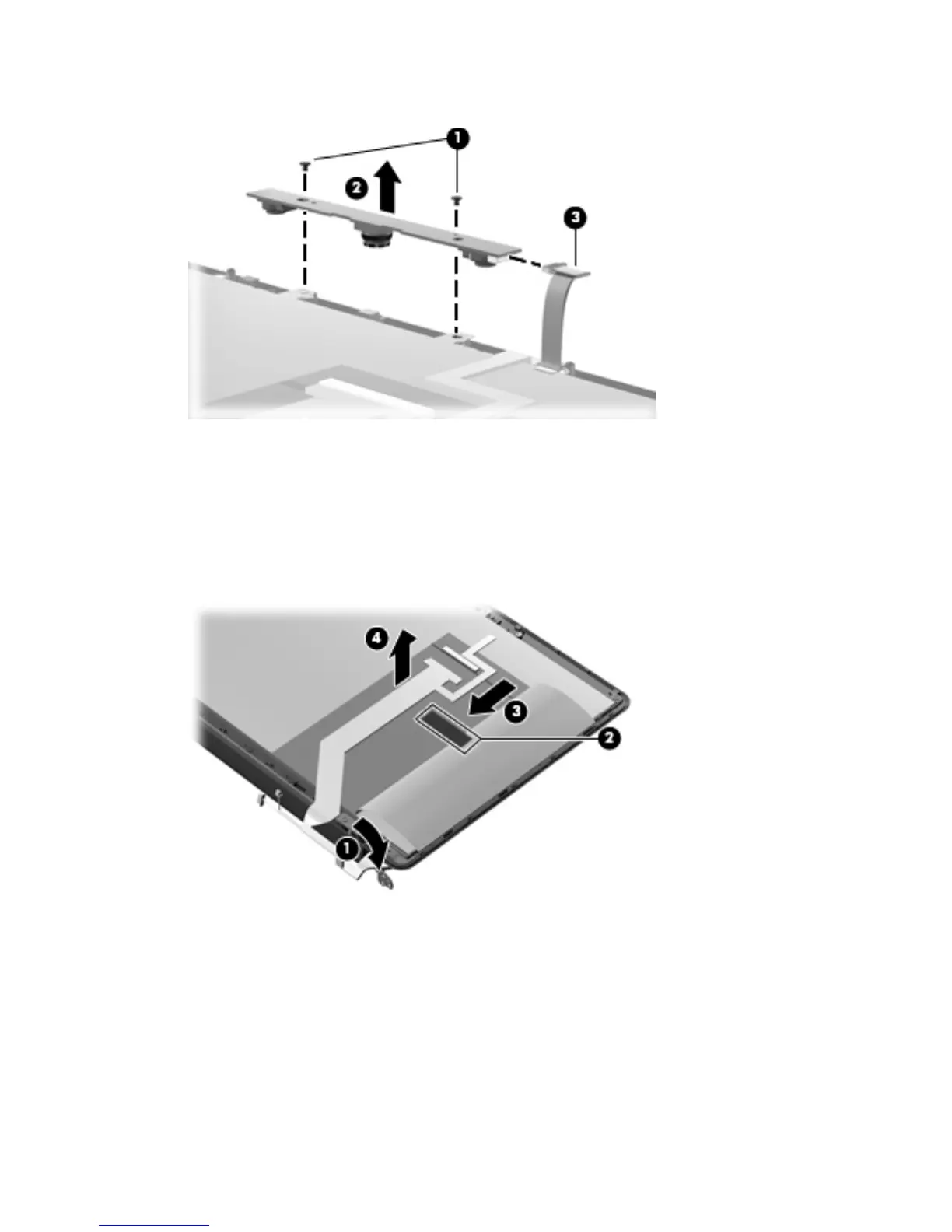

7. Disconnect the camera/microphone module cable (3) from the camera/microphone module.
8. If it is necessary to replace the Flush Glass display panel cable, turn the display assembly over.
9. Release the foil shield covering the display panel cable (1).
10. Remove the tape (2) securing the cable to the display panel.
11. Disconnect the display panel cable (3) from the display panel.
12. Remove the display panel cable (4).
92 Chapter 4 Removal and replacement procedures
