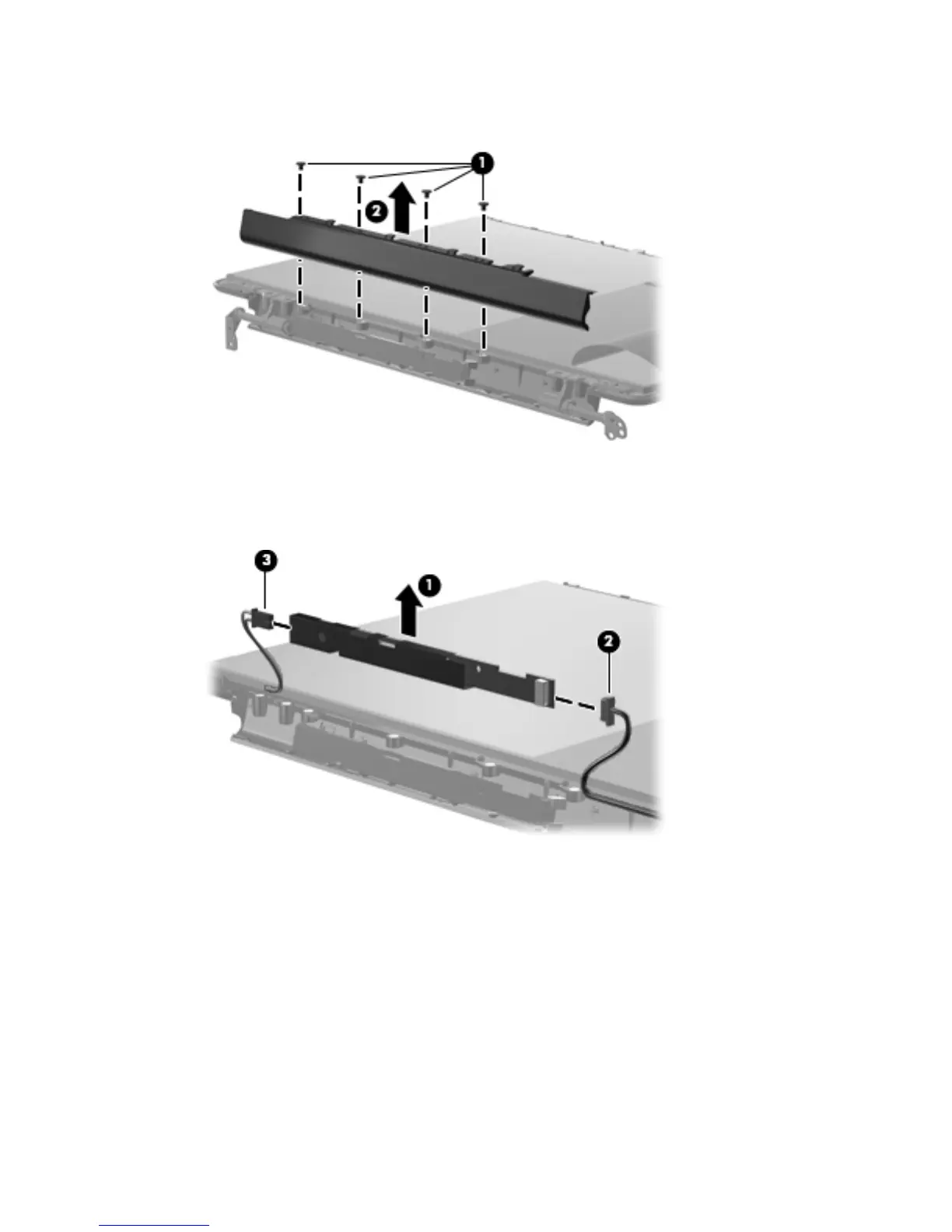

13. If it is necessary to replace the inverter, remove the four Phillips PM2.5×4.0 screws (1) that secure
the inverter cover to the display assembly, and remove the inverter cover (2).
14. Release the inverter from the display assembly, and lift as far as the attached cables will allow
(1).
15. Disconnect the backlight cable (2), and the display panel cable (3) from the inverter.
16. If it is necessary to replace the display hinges, release the foil tab (1).
17. Remove the six Phillips PM2.5×4.0 screws (2), and the eight Phillips PM2.0×4.0 screws (3) that
secure the hinges to the display panel.
Component replacement procedures 93
