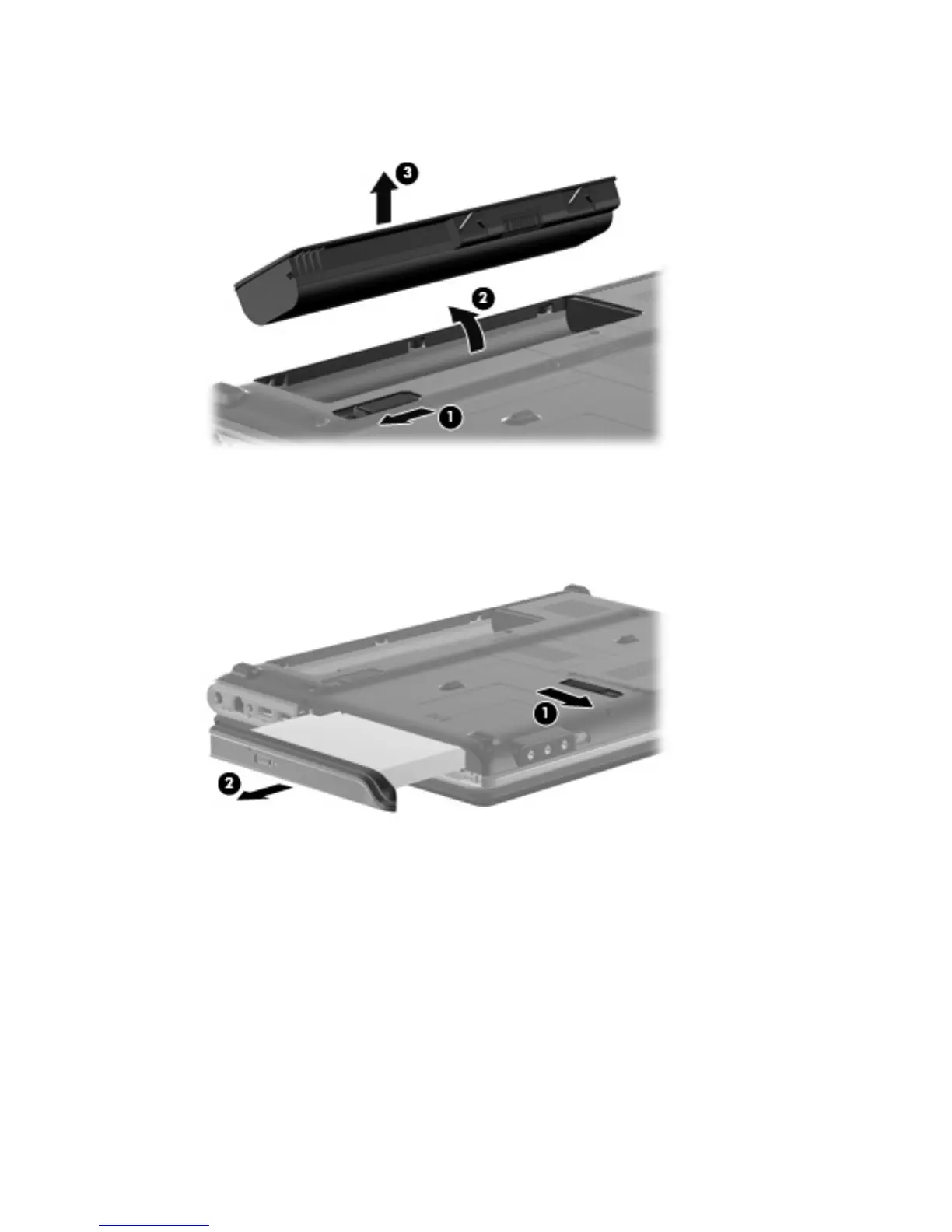

5. Slide the battery release latch (1) to release the battery.
6. Pivot the battery (2) upward and remove it from the computer (3).
7. Position the computer with right side toward you.
8. Slide the swappable bay release latch (1) away from the battery bay.
9. Remove the optical drive (2).
10. If it is necessary to replace the optical drive bracket, position the optical drive with the optical drive
bracket toward you.
11. Remove the two Phillips PM2.0×4.0 screws (1) that secure the optical drive bracket to the optical
drive.
ENWW Component replacement procedures 7
