27. Open the computer as far as possible.

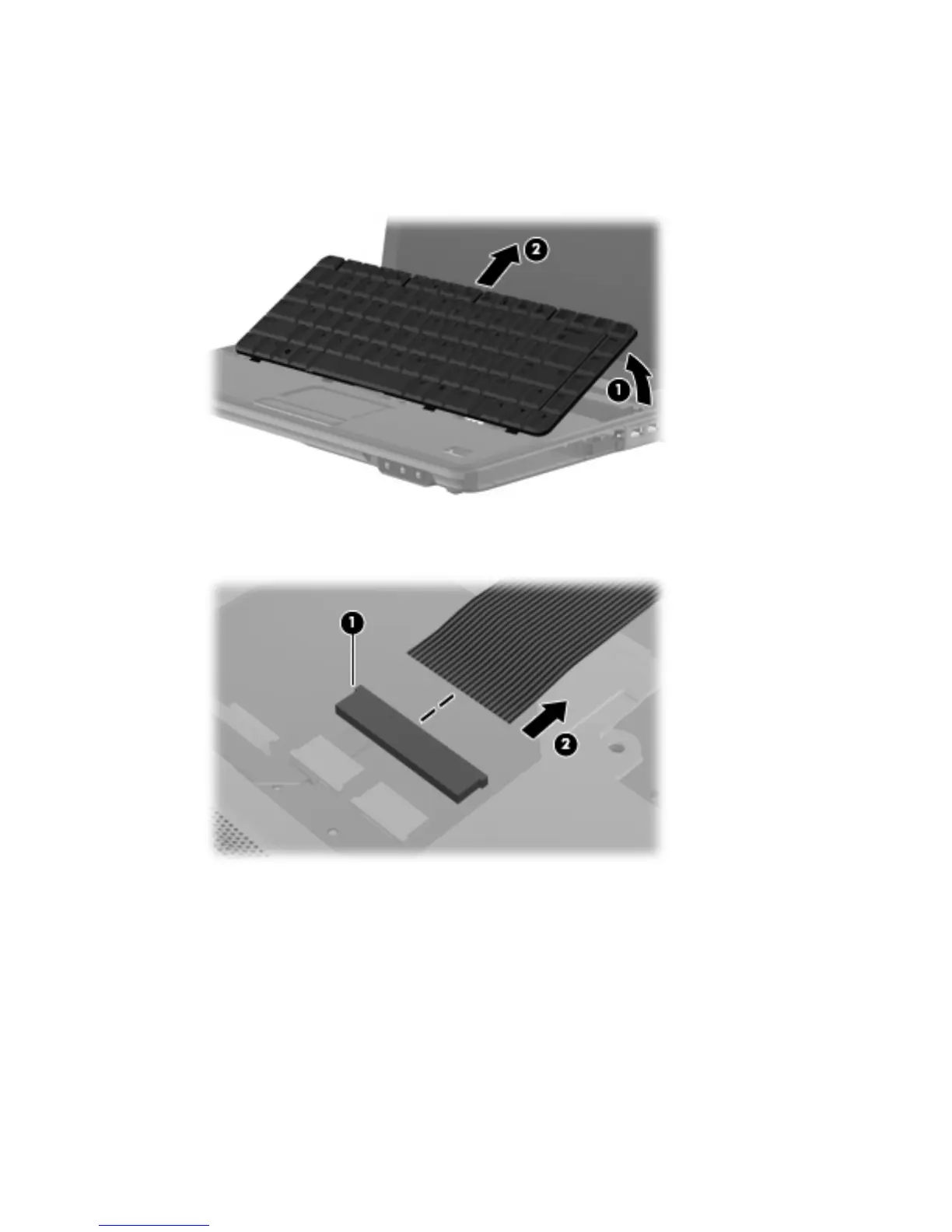

28. Lift the rear edge of the keyboard (1) until it rests at an angle.
29. Release the keyboard (2) by sliding it back to disengage the tabs on the front edge of the keyboard
from the top cover.
30. Release the zero insertion force (ZIF) connector (1) to which the keyboard cable is attached and
disconnect the keyboard cable (2) from the system board.
31. Remove the keyboard.
32. Turn the computer upside down, with the front toward you.
ENWW Component replacement procedures 11
