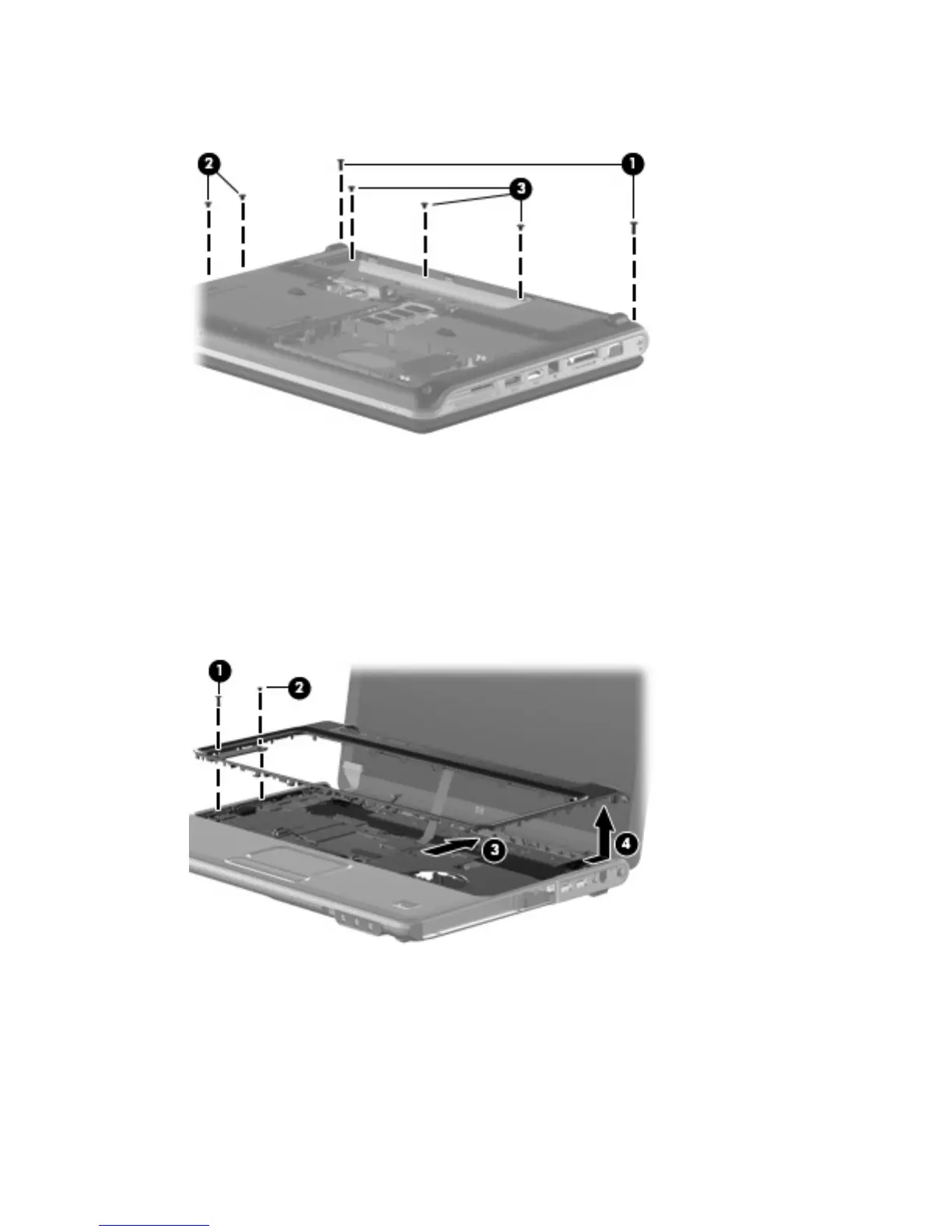

33. Remove the two Phillips PM2.5×7.0 screws (1), the two Phillips PM2.0×4.0 screws (2), and the
three Phillips PM2.5×3.0 screws (3) that secure the keyboard cover to the computer.
34. Turn the computer display-side up, with the front toward you.
35. Open the computer as far as possible.
36. Remove the Phillips PM2.5×9.0 screw (1), and the Phillips PM2.5×4.0 screw (2) securing the
keyboard cover to the top cover.
37. Release the keyboard cover (3) by sliding it toward the display assembly until it disengages from
the computer.
38. Remove the keyboard cover (4).
39. Disconnect the num lock cable (1) from the system board.
40. Remove the two Phillips PM2.5×4.0 screws (2) that secure the speaker assembly to the computer.
41. Remove the Phillips PM2.5×9.0 screw (3) that secures the speaker assembly to the computer.
42. Disconnect the speaker cable (4) from the system board.
12 Chapter 1 Removal and replacement procedures ENWW
