Servi
ce R
e
fer
ence Guide
4
90
77
8-001
6–15
Remo
val and R
eplacement Procedur
es— Mic
rot
ower (MT) Cha
ssis
7.

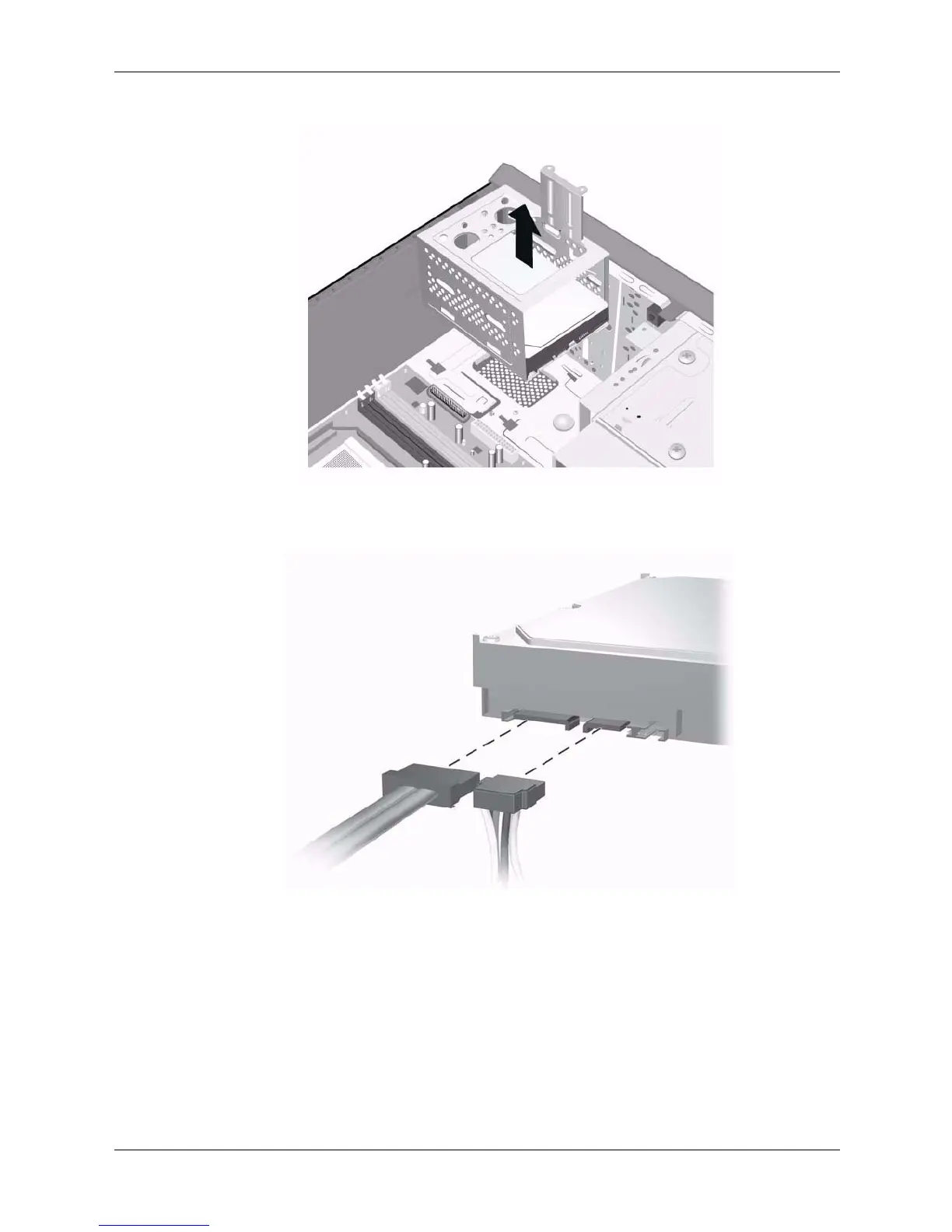

Lift t
he hard disk dri
ve cag
e out of the chas
sis.
Rem
ovi
n
g
t
h
e
Ha
rd
D
rive
Ca
g
e
8.
Disconnec
t
the po
wer cable
1
and
data cable
2
f
rom the back
of the har
d driv
e.
Disconnecting the Hard Dr
iv
e Cables
52
54
Table of Contents
Default Chapter
4
Table of Contents
4
1 Installing the Operating System
7
Microsoft Windows Xp/Windows Vista/Redflag Linux
7
Installing or Upgrading Device Drivers (Only Applicable for Windows OS)
7
Converting to NTFS (Associated with Windows OS)
8
Windows XP Home/Xp Professional(Vista Downgrade)/ Vista Basic/Vista Business
8
HP Software
8
2 Setup Utilities and Diagnostics Features
9
Power-On Self-Test (POST)
9
Computer Setup Utilities
10
Using Computer Setup (F10) Utilities
10
Computer Setup Menu
12
Recovering the Configuration Settings
21
Backing up the CMOS
21
Restoring the CMOS
21
3 Desktop Management
22
Initial Configuration and Deployment
22
ROM Flash
22
Failsafe Boot Block ROM
22
Dual-State Power Button
23
Power Management
23
World Wide Web Site
24
Security
24
Password Security
24
Establishing a Supervisor Password Using Computer Setup
24
Establishing a User Password Using Computer Setup
24
Entering a User Password
25
Entering a Supervisor Password
25
Changing a User or Supervisor Password
25
Surge-Tolerant Power Supply
27
4 Serial ATA Drive Guidelines and Features
28
SATA 3.0 Hard Drives
28
SATA Hard Drive Cables
29
SATA Data Cable
29
SATA Power Cable
29
SATA SMART Drives
30
Drive Capacities
30
Sata Bios
30
5 Identifying the Chassis, Routine Care, and Disassembly Preparation
31
Chassis Designations
31
Microtower (MT)
31
Electrostatic Discharge Information
33
Generating Static
33
Preventing Electrostatic Damage to Equipment
33
Personal Grounding Methods and Equipment
34
Grounding the Work Area
34
Recommended Materials and Equipment
34
Routine Care
35
General Cleaning Safety Precautions
35
Cleaning the Computer Case
35
Cleaning the Keyboard
36
Cleaning the Monitor
36
Cleaning the Mouse
36
Service Considerations
37
Tools and Software Requirements
37
Screws
37
Cables and Connectors
38
Hard Drives
38
Lithium Coin Cell Battery
38
6 Removal and Replacement Procedures-Microtower (MT) Chassis
39
Preparation for Disassembly
39
Remove the Computer Access Panel and Front Bezel (MT Chassis)
40
Access Panel (MT Chassis)
40
Front Bezel (MT Chassis)
41
Front Drive Bezels
42
Removing a 5.25" Drive Bezel Blank/Mt Chassis
42
Memory
43
Installing Memory Modules/Mt Chassis
43
Expansion Cards
44
Expansion Slot Cover Lock
44
Pci/Pcie Expansion Card
45
Installing an Expansion Card
46
Removing an Expansion Card
48
Cable Management
49
Drives
50
Locating Drive Positions
50
Removing a Drive
51
Front I/O Panel Housing Assembly - MT Chassis
55
System Fan
56
Heatsink - MT Chassis
57
Processor
58
System Board
60
Battery
61
Battery Holder
62
Power Supply
63
Connector Pin Assignments
64
Parallel Interface
65
Power Cord Set Requirements
68
General Requirements
68
Post Error Messages
69
Troubleshooting Without Diagnostics
72
Preliminary Checklist
72
Solving General Problems
73
Solving Hardware Installation Problems
76
Interpreting Diagnostic Lights and Audible Codes
77
Solving Display Problems
78
Solving Audio Problems
81
Solving Printer Problems
83
Solving Keyboard and Mouse Problems
84
Solving Network Problems
85
Solving Memory Problems
87
Solving Processor Problems
88
Solving Drive Key Problems
90
Solving Internet Access Problems
90
Diagnostic Front Panel Leds and Audible Codes
93
Restoring the Software
96
Contacting Customer Support
96
