b. If you are removing a media card reader, disconnect the USB cable from the system board.

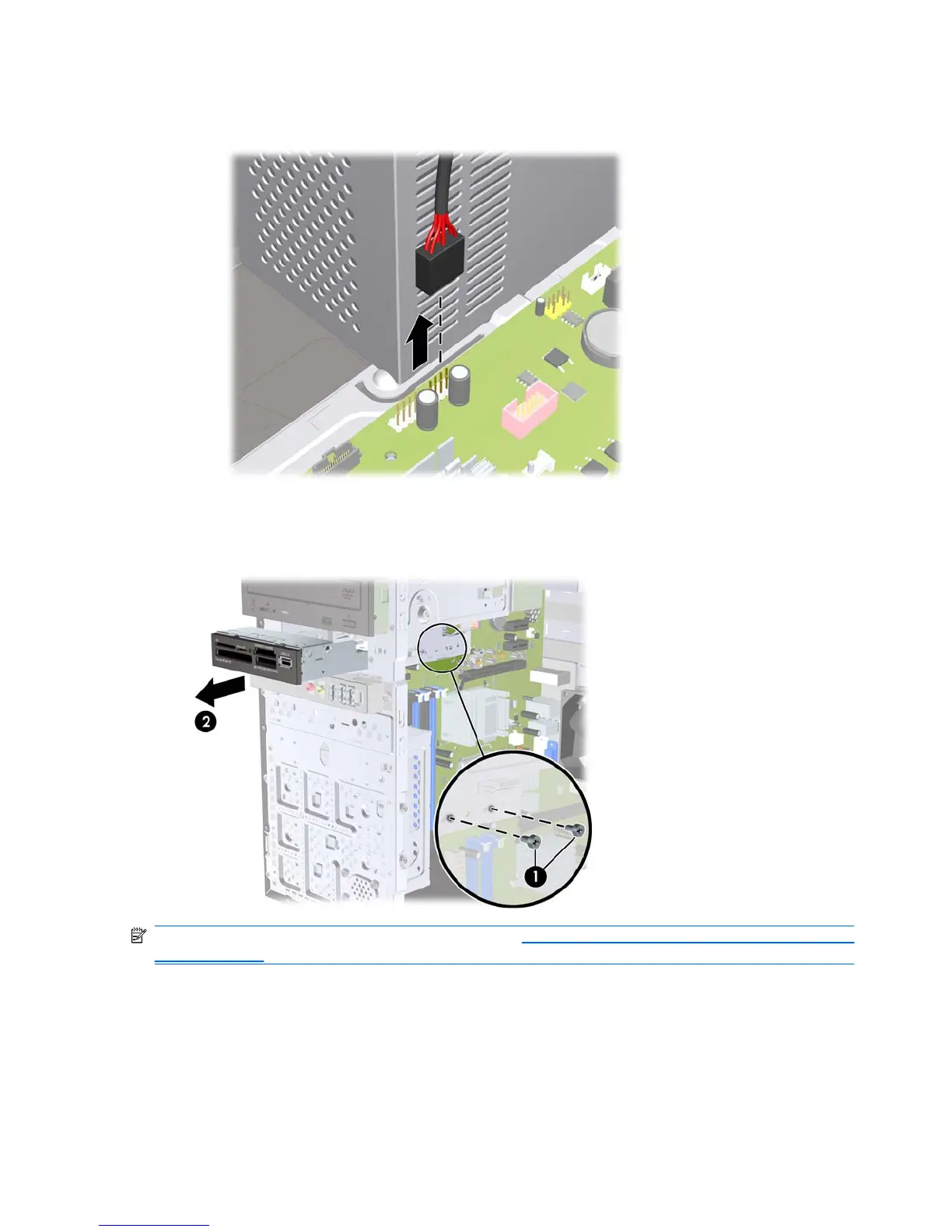

Figure 2-23 Disconnecting the Media Card Reader Cable
7. Remove the two retainer screws that secure the drive to the bay (1) then slide the drive forward
and out of the bay (2).
Figure 2-24 Removing a 3.5-inch Device (Media Card Reader Shown)
NOTE: To install an external 3.5-inch drive, refer to Installing a Drive into the 3.5-inch External Drive
Bay on page 31.
