EL-MF877-00 Page 4
Template Revision D
last updated May-2022
HP Inc. instructions for this template are available at EL-MF877-01

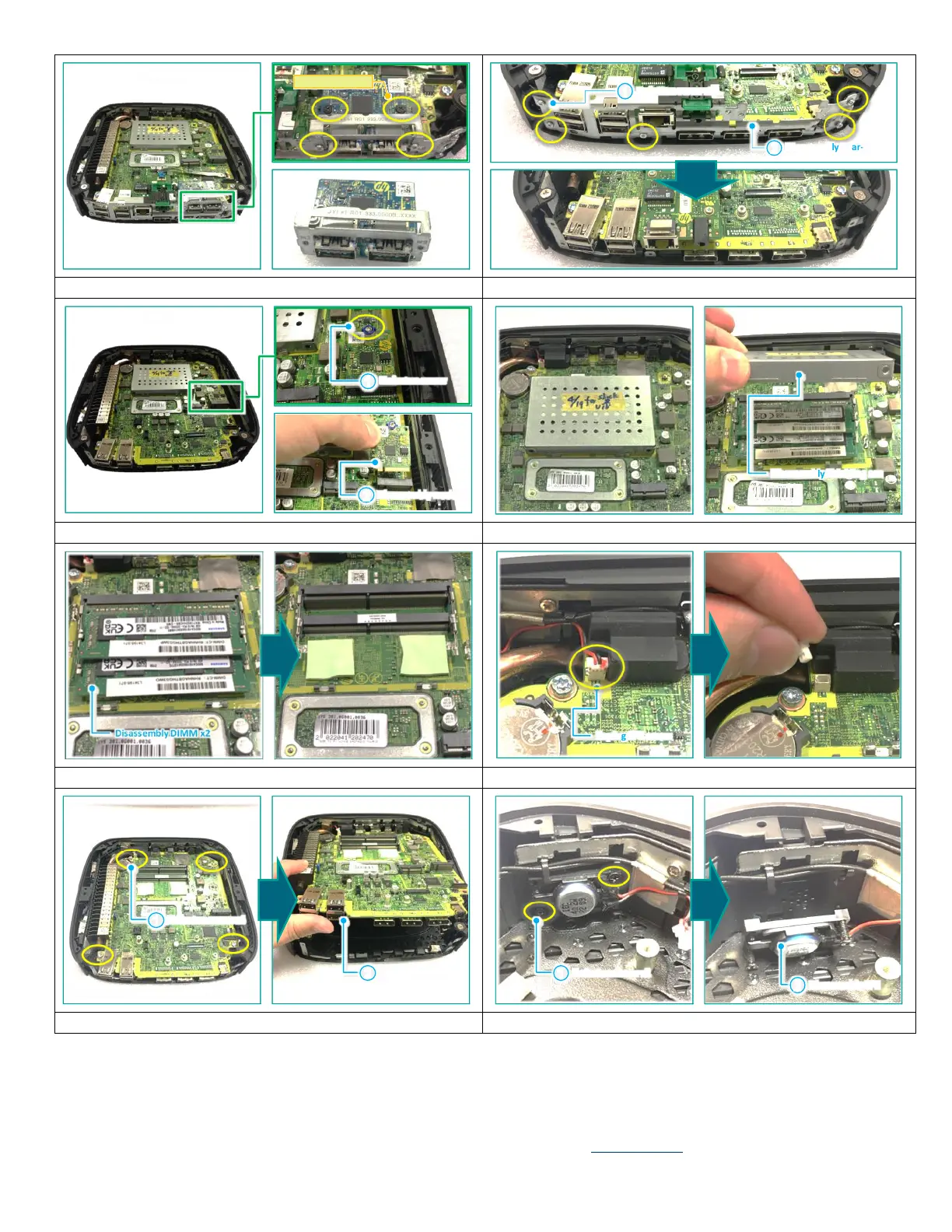

STEP 5. Remove T8-SSD screw and module
STEP 6. Remove shielding can
STEP 7. Remove DIMM
STEP 8. Remove speaker conn
STEP 9. Unfasten T15-M3 screws and disassembly MB
STEP 10. Remove speaker
STEP 11. Unfasten “+” M2 screws and internal antenna
STEP 12. Unfasten “+” M3 screws and internal antenna
Overall
Unfasten screw x4
1
Unfasten screw x5
2
Disassembly Rear-brkt
Overall
Overall
1
Unfasten screw
2
Disassembly module
DisassemblyShielding can
Unplug SPK cconn
1
Unfasten screw x4
2
Disassembly MB
1
Unfasten screw x2
2
Disassembly SPK
