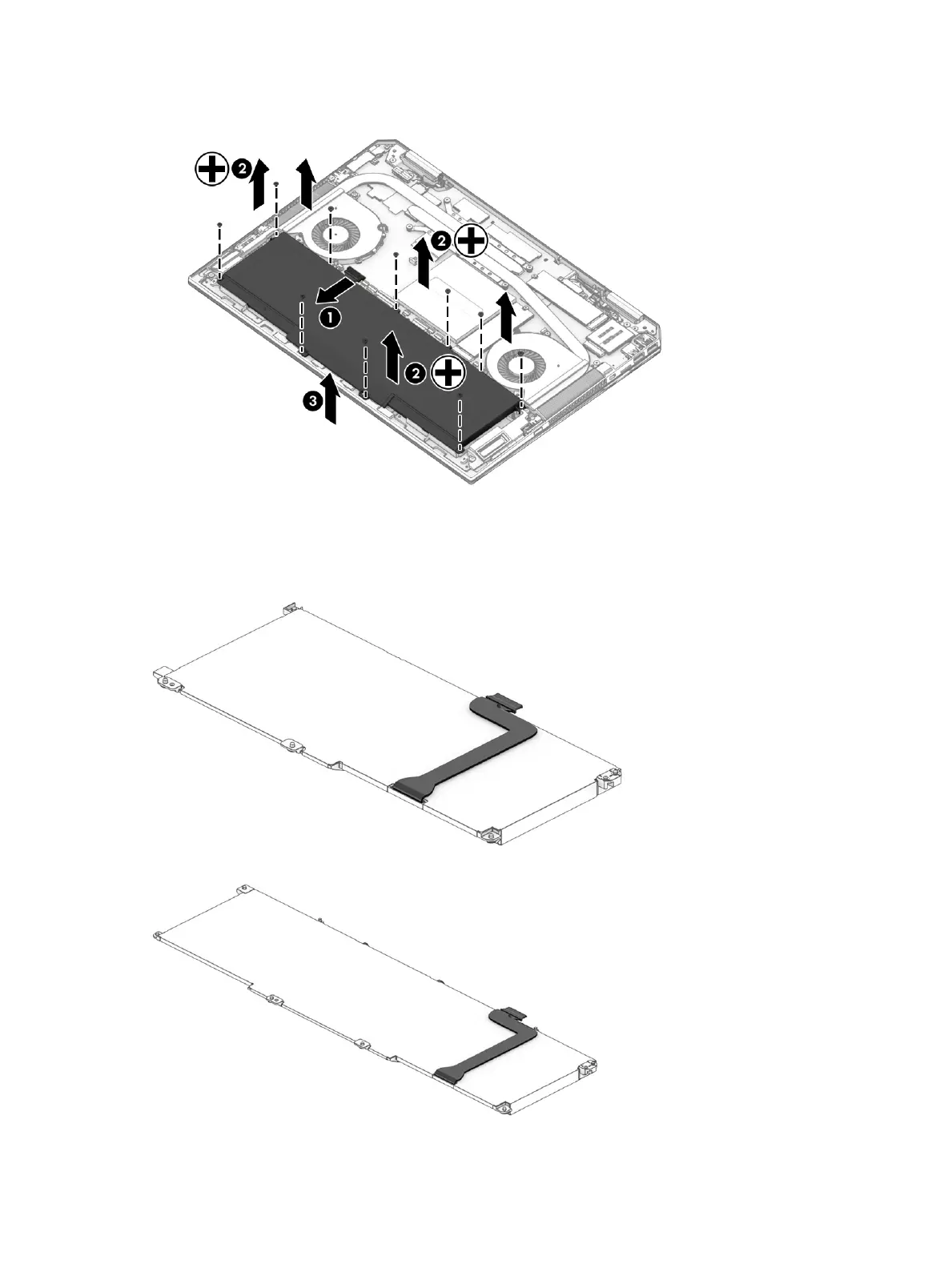

3. Remove the battery from the computer (3).
Reverse this procedure to install the battery.
When installing the battery, be sure to properly route the battery cable as shown in the following images:
4-cell battery cable routing
6-cell battery cable routing
32 Chapter 5 Removal and replacement procedures for authorized service provider parts
