HP EliteBook 2540P

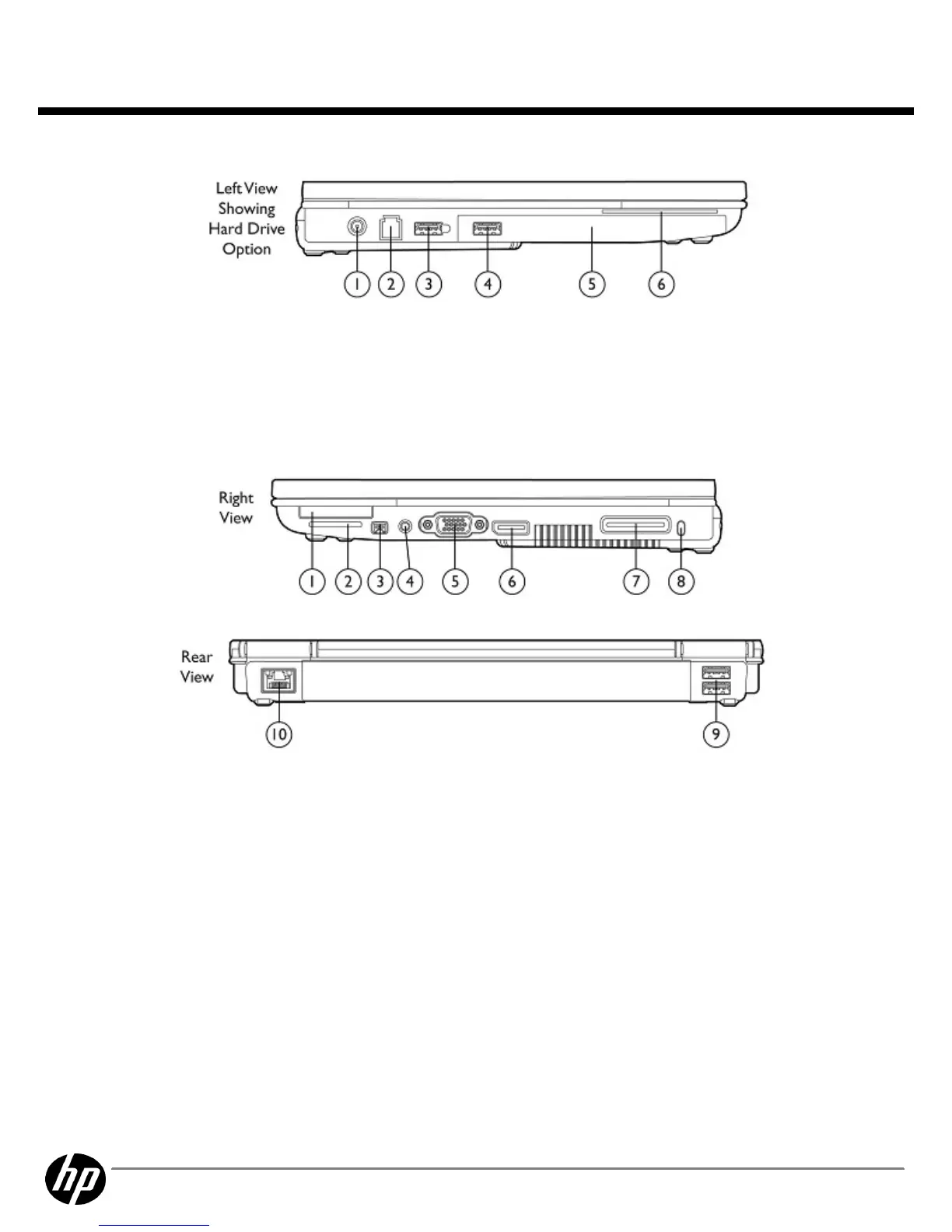

1. Power connector 4. USB 2.0 port (not present with weight saver)
2. RJ-11/modem port 5. 2.5-inch internal storage bay *
3. USB 2.0 port (powered) 6. Integrated Smart Card Reader
* With a standard voltage processor, this 2.5-inch bay is used for any available 2.5-inch hard drive or solid state
drive; 1.8-inch hard drive bay is not available.
With the low voltage processor and 1.8-inch 250 GB hard drive in 1.8-inch hard drive bay, this 2.5-inch bay can be
used for a 2.5-inch 250 GB secondary hard drive, for RAID configuration.
1. ExpressCard/34 slot 6. DisplayPort
2. Secure Digital (SD) slot 7. Docking connector
3. 1394a port 8. Kensington Lock slot
4. Combo headphone/microphone jack 9. (2) USB 2.0 ports
5. VGA connector (external monitor/projector) 10. RJ-45/Ethernet port
QuickSpecs
HP EliteBook 2540p Notebook PC
HP EliteBook 2540p Notebook PCHP EliteBook 2540p Notebook PC
HP EliteBook 2540p Notebook PC
Overview
DA - 13566 North America — Version 8 — June 2, 2010 Page 2
