HP Elitebook 8560W - Page 2

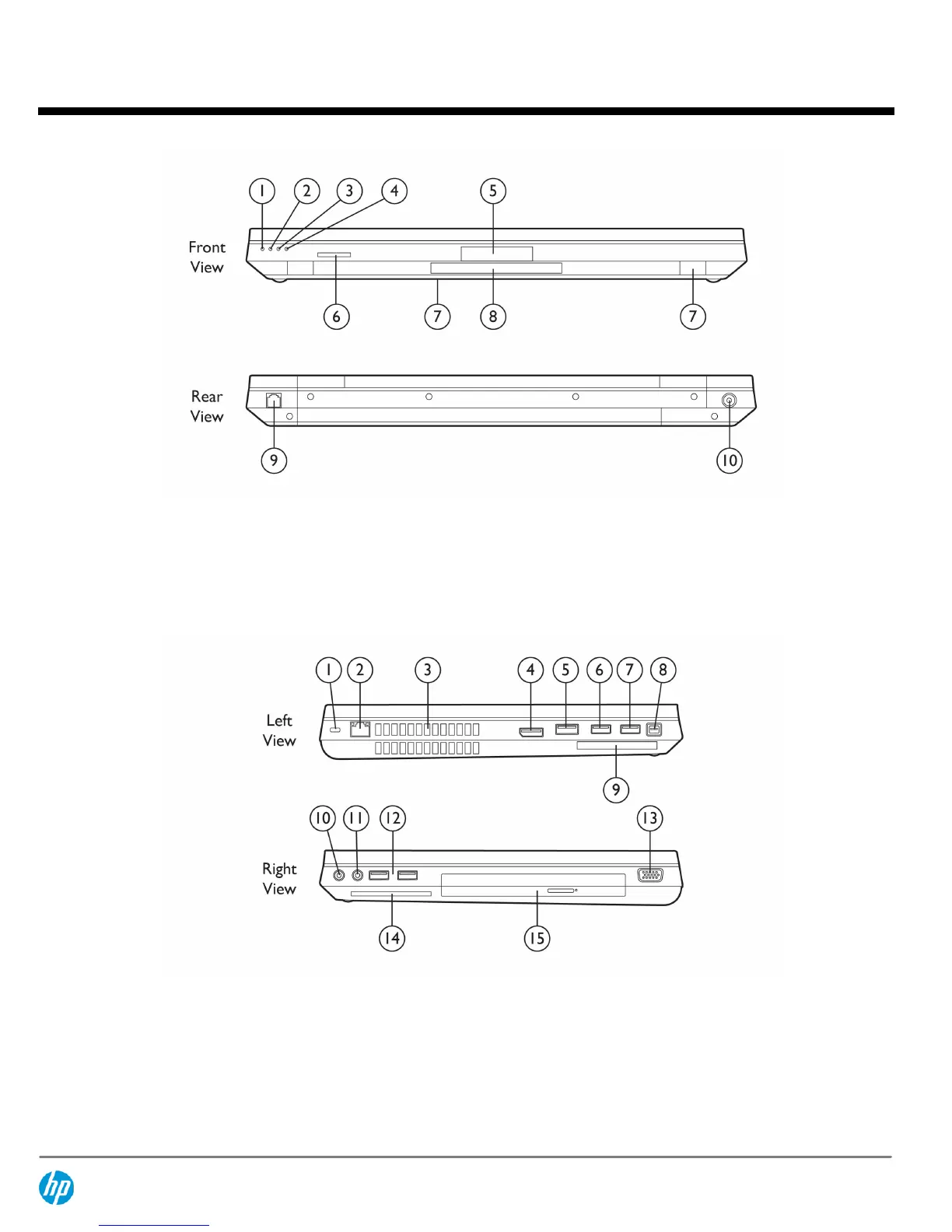

1. Wireless LED indicator 6. Secure Digital/MultiMedia Card slot
2. Power/standby LED indicator 7. Stereo speakers
3. Battery charging LED indicator 8. Vent
4. Hard drive activity / HP 3D DriveGuard LED indicator 9. RJ-11/modem port
5. Display release latch 10. Power connector
1. Security lock slot 9. ExpressCard/54 slot
2. RJ-45/Ethernet port 10. Stereo headphone/line out
3. Vents 11. Stereo microphone/line in
4. DisplayPort 12. (2) USB 3.0 ports
5. eSATA/USB 2.0 combo port 13. VGA/external monitor connector
6. USB 2.0 port 14. Smart Card Reader
7. USB 2.0 charging port 15. Upgrade Bay (optical drive or additional hard drive)
QuickSpecs
HP EliteBook 8560w Mobile Workstation
