5. If it is necessary to replace the optical drive bracket, position the optical drive with the rear
toward you.

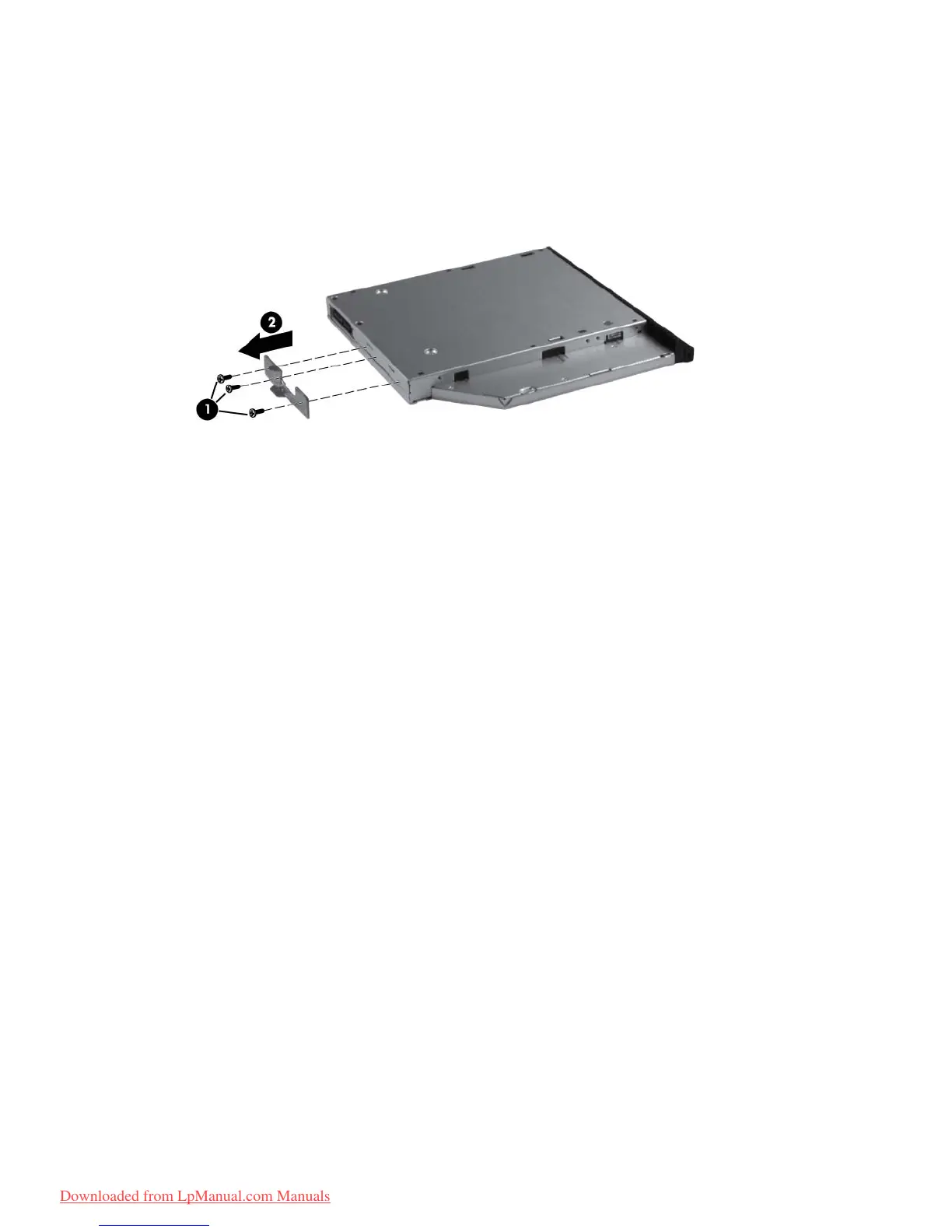

6. Remove the three Phillips M2.0×3.0 screws (1) that secure the optical drive bracket to the optical
drive.
7. Remove the optical drive bracket (2).
Reverse this procedure to install an optical drive.
