HP EliteBook 8570p - Page 4

17. Display release latch 35. Volume up function key
18. Touchpad pick buttons 36. HP Power Assistant function key
* USB 2.0 port on right is a charging port.

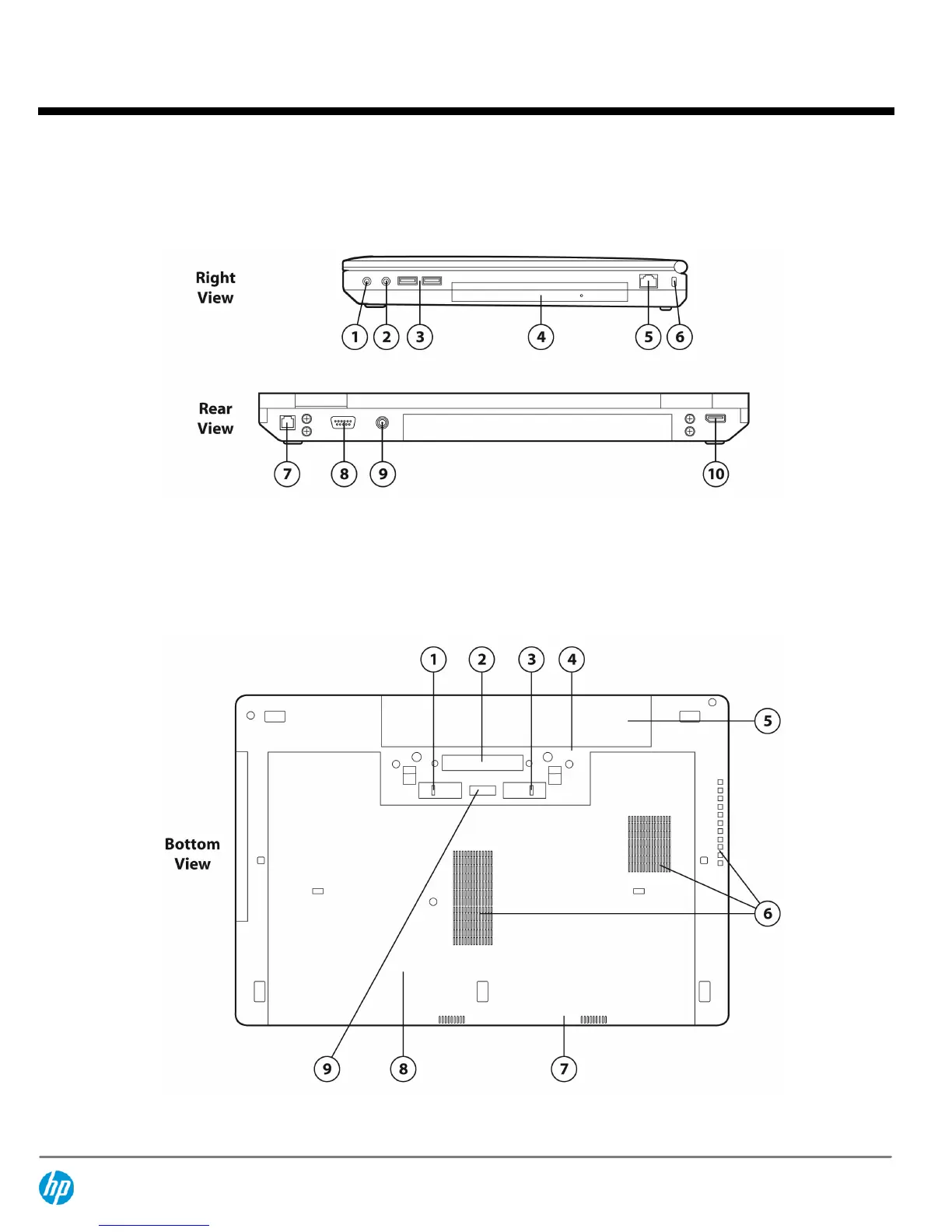

1. Stereo headphone/line out 6. Security lock slot
2. Stereo microphone/line in 7. RJ-11/modem port (optional)
3. (2) USB 3.0 ports 8. Serial port
4. Upgrade Bay (optical drive, second hard drive or weight saver) 9. Power connector
5. RJ-45/Ethernet port 10. DisplayPort
1. Battery release latch 6. Vents
2. Docking connector 7. Bluetooth module compartment
QuickSpecs
HP EliteBook 8470p Notebook PC
HP EliteBook 8570p Notebook PC
Overview
DA - 14304 North America — Version 16 — June 6, 2013 Page 4
