4

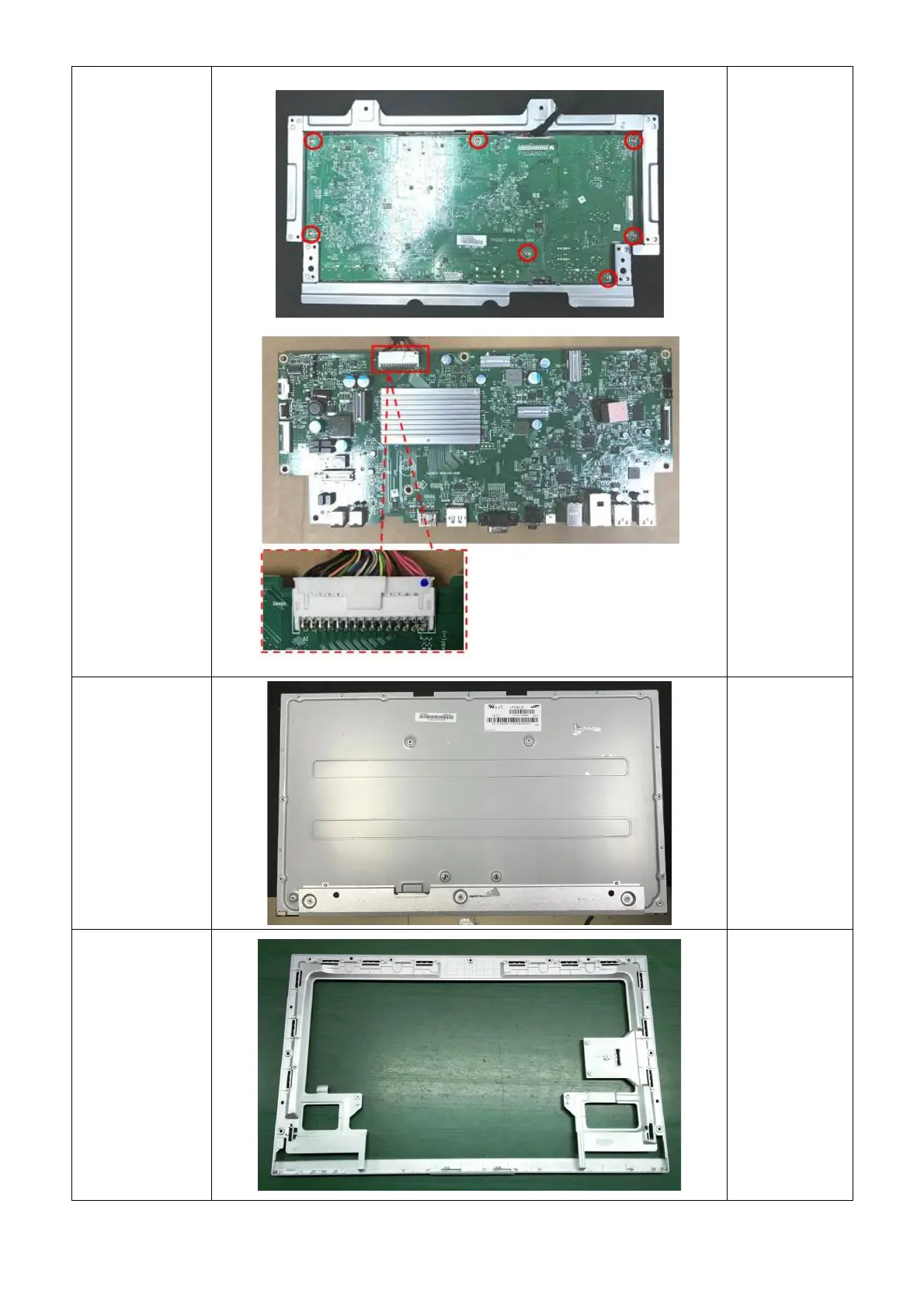

Remove the
main board
Remove the
screws to
remove the
main board,
take off the pin
The panel
The panel
Middle_Frame
Middle_Frame
