English
User’s Guide
7
Filename: sa517093.doc Title: User's Guide
Template: Print_2004.dot Author: WASSER Studios Last Saved By: billm
Revision #: 36 Page: 7 of 20 Printed: 12/01/04 12:35 PM

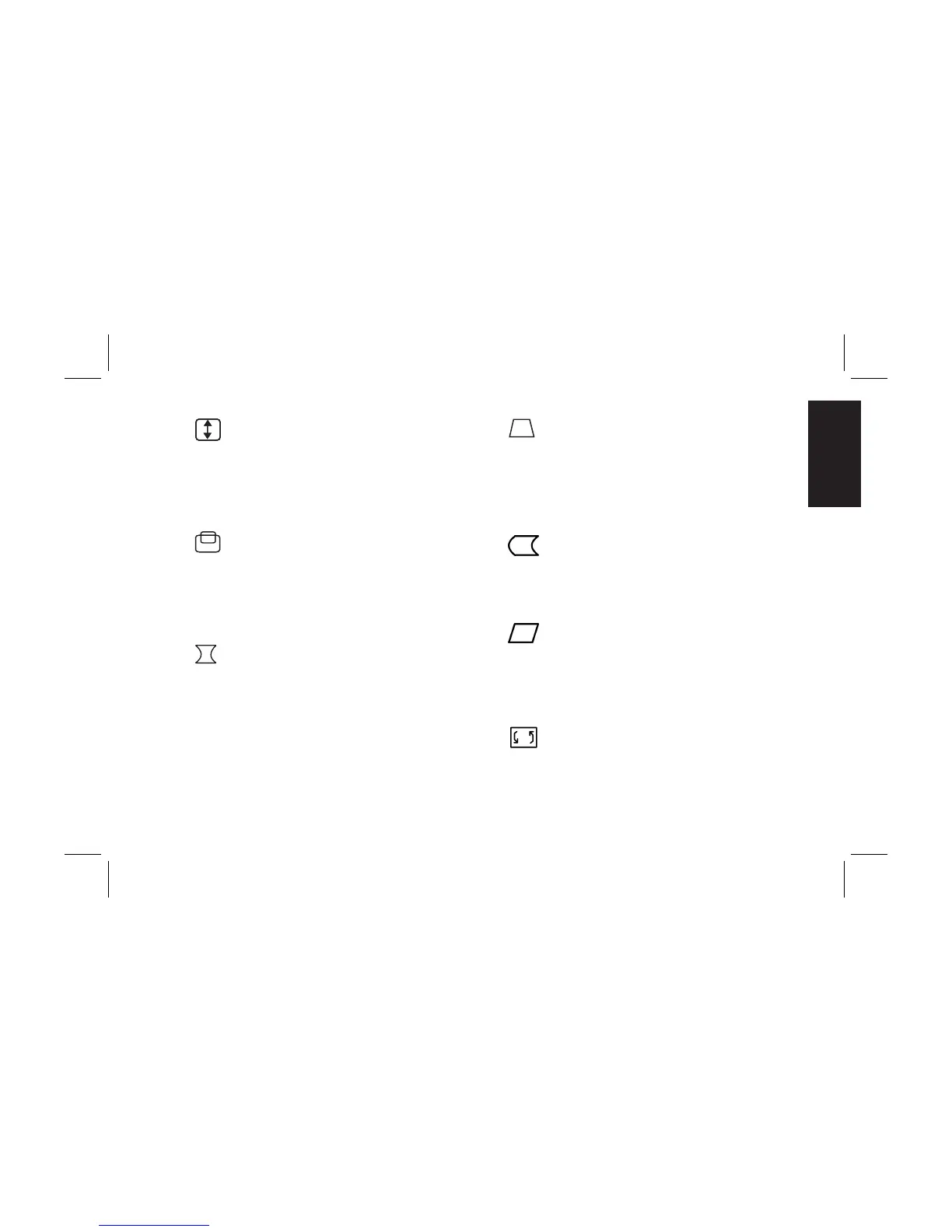

VERTICAL SIZE adjustment
Fills the viewable area vertically.
Press the – button to make the image smaller,
or press the + button to make it larger.
Press the select key toggles between VERTICAL
SIZE and VERTICAL POSITION.
VERTICAL POSITION adjustment
Shifts the image on the screen vertically.
Press the – button to move it downward, or press
the + button to move it upward.
Press the select key toggles between VERTICAL
SIZE and VERTICAL POSITION
PINCUSHION adjustment
The image can be corrected for barrel
distortion.
Press the – button or the + button to eliminate
curved vertical lines.
Press the select key toggles between
PINCUSHION and TRAPEZOID correction.
TRAPEZOID adjustment
The image can be corrected for the trapezoidal
distortion.
Press the – button to narrow the top edge, or
press the + button to make the top edge wider.
Press the select key toggles between
PINCUSHION and TRAPEZOID correction.
PIN BALANCE adjustment
The image can be corrected right or left.
Right-Adjustment moves the top and bottom of
the image to the right and Left-Adjustment moves
the top and bottom of the image to the left.
PARALLELOGRAM adjustment
The image can be corrected for parallelogram
distortion.
This control corrects the tilted vertical edges of
the image on both sides of the screen that are in
the same direction.
ROTATION adjustment
The image can be corrected for tilted picture.
Press the – button to tilt the image to the left, or
press the + button to tilt the image to the right.
